034 Motorsport Density Line Front Control Arm Kits 034-401-10/82 for Audi C8, D5, & 4M/4M.5 Chassis
Product Details:
Manufacturer Part Number: 034-401-10/82
Brand: 034Motorsport
Country/Region of Manufacture: United States
034Motorsport's complete Density Line Control Arm Kit with Upper Adjustable or Non-Adjustable Control Arms are designed to be performance replacements for all eight of the factory front upper and lower control arms.
The result is tighter handling and more precise steering response than even brand new factory control arms can offer. In addition, adjustable upper control arms allow optimal alignment for your lowered or track driven vehicle.
The factory front control arms are an integral part of the suspension, but can start wearing out as early as 40,000 miles - even on vehicles that see mainly highway commuting miles, trips to the local mall, and school drop-off/pick-up.
As the rubber bushings degrade and ball joints develop play, alignment is compromised, and steering becomes less precise.
This kit is a drop-in replacement with feature improvements over stock, that will tighten up front-end feel and allow camber adjustment to significantly improve handling.
Density Line Non-Adjustable Control Arms:034Motorsport's complete Density Line Upper Control Arms are designed to be a performance replacement for all four factory front upper control arms.
Featuring high-durometer rubber bushings and high-quality ball joints, Density Line Control Arms are engineered to limit unwanted deflection in the suspension, resulting in tighter handling and more precise steering response than even brand-new factory control arms can offer.
Features:Density Line Non-Adjustable:Complete, Drop-In Replacement for Factory Upper Control ArmsOffers Improved Handling Feel & Steering PrecisionHigh-Durometer Rubber Bushings (65 - 70 Durometer)No Fluid, So Unlike OE Arms, the Bushings Cannot LeakIncludes New Hardware & Ball Joints

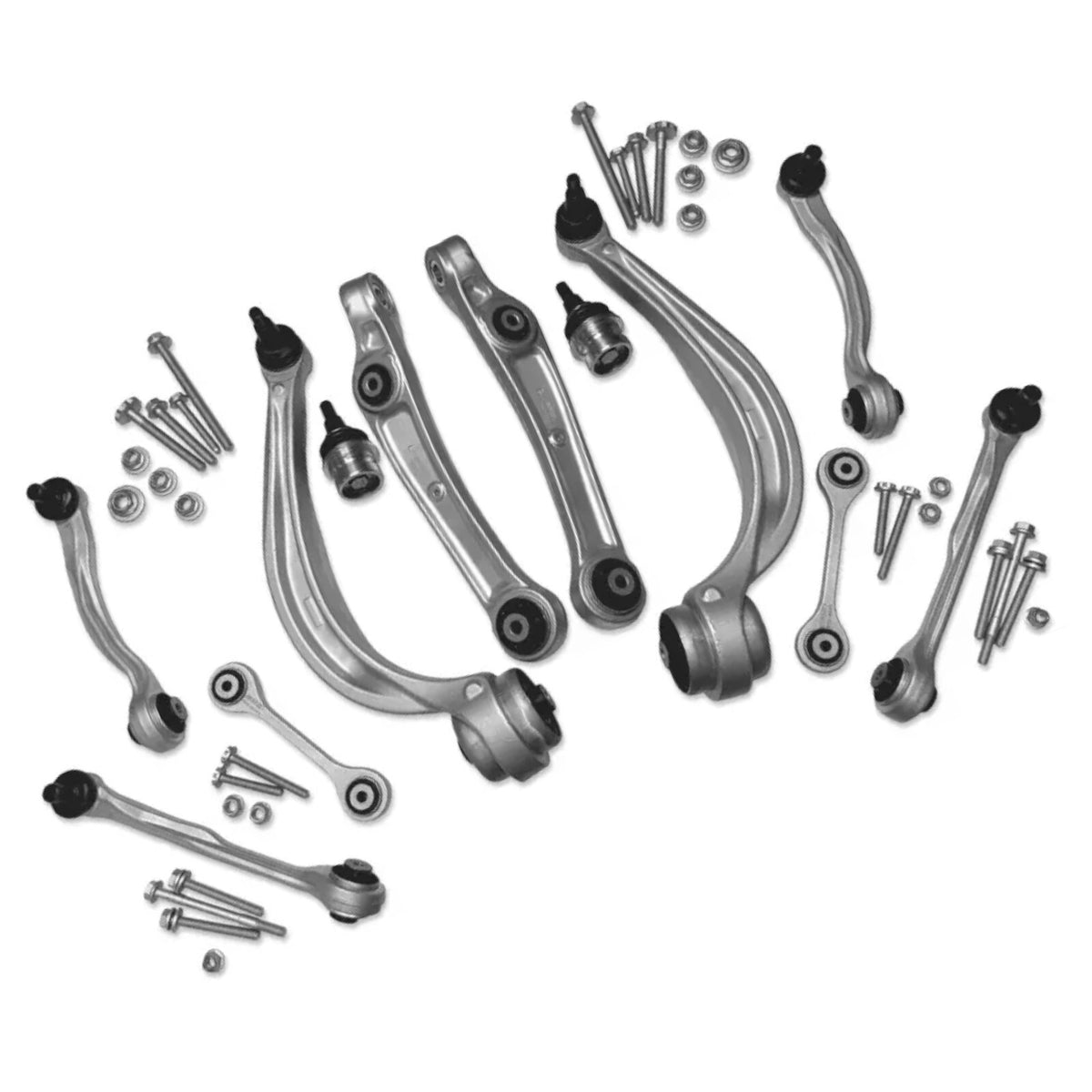

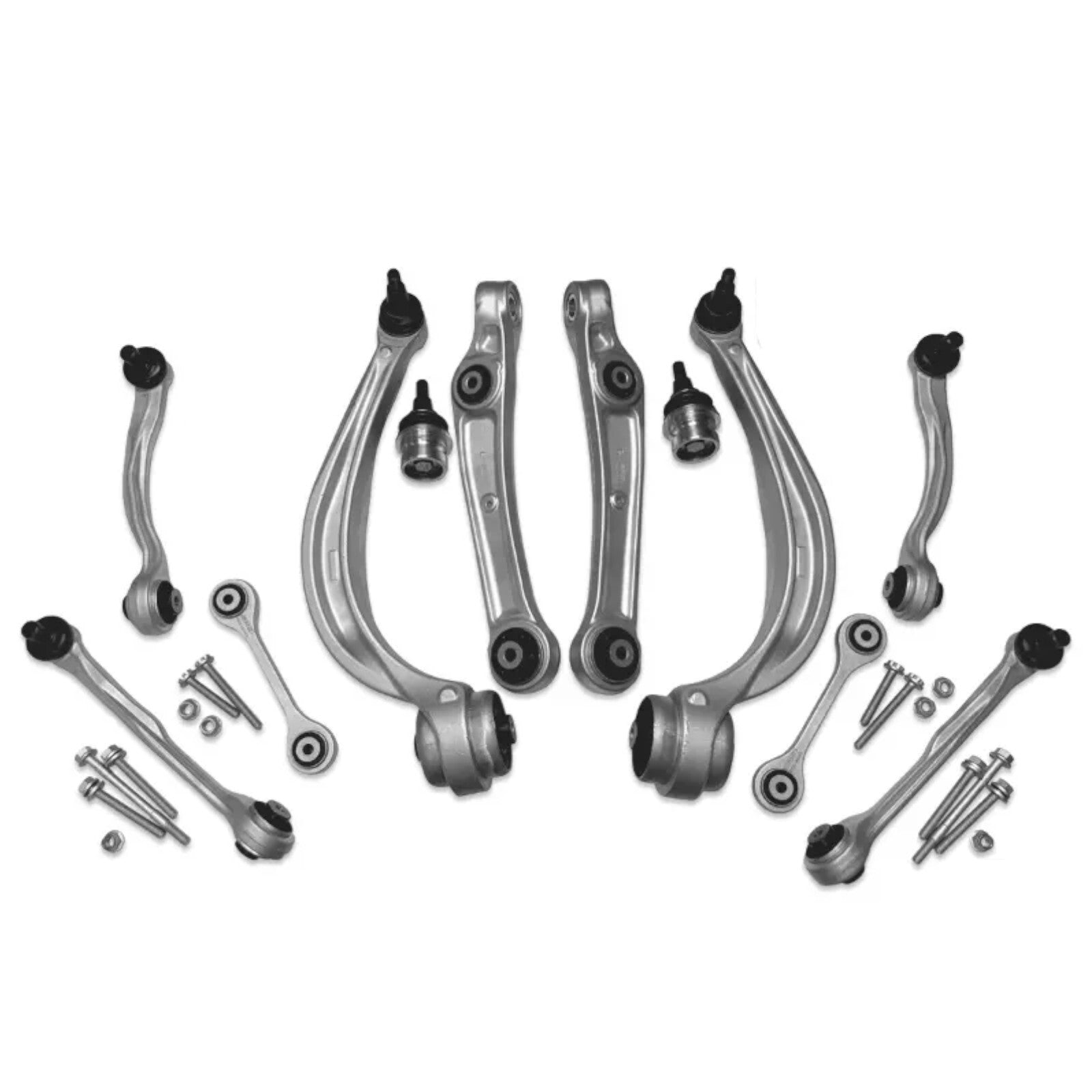

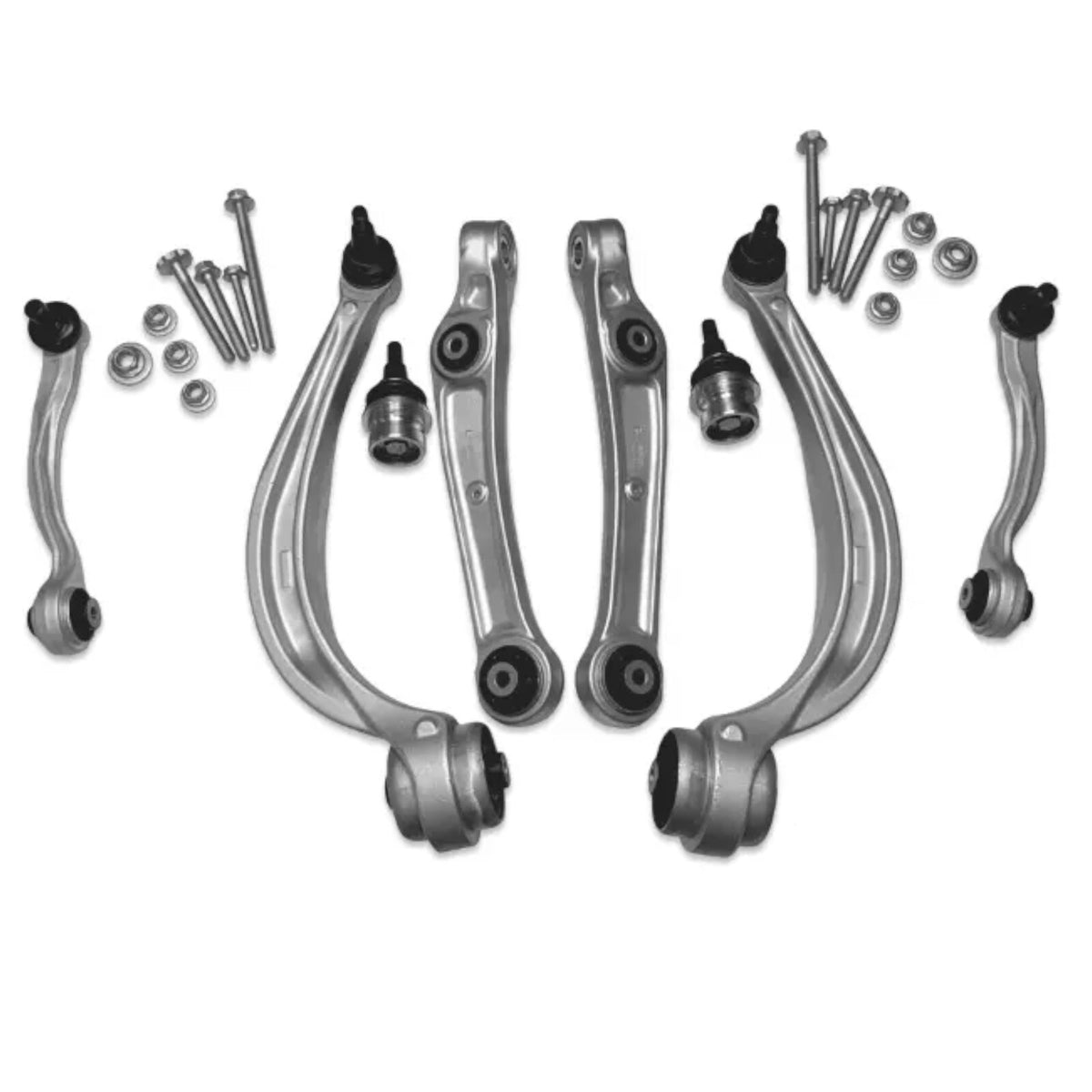

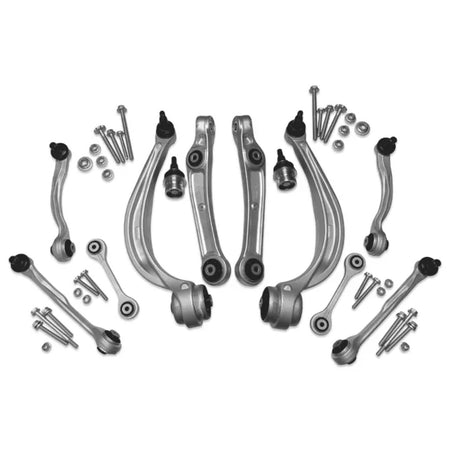

WHAT’S INCLUDED:Front Lower Control Arms - Front (Left & Right)Front Lower Control Arms - Rear (Left & Right)Front Upper Control Arms - Front (Left & Right)Front Upper Control Arms - Rear (Left & Right)Installation Hardware Kit
OE PART INTERCHANGE:
Upper Arms: Control Arm, Upper Front Left: 4M0 407 505 BControl Arm, Upper Front Right: 4M0 407 506 BControl Arm, Upper Rear Left: 4M0 407 509 BControl Arm, Upper Rear Right: 4M0 407 510 BControl Arm, Lower Front Left: 4M0 407 151 LControl Arm, Lower Front Right: 4M0 407 152 LControl Arm, Lower Rear Left: 4M0 407 693 FControl Arm, Lower Rear Right: 4M0 407 694 FBall Joint Front Right and Left: 4M0 407 689 C
Vehicle Fitment
| Make |
Model |
Years |
Chassis |
Engine |
| Audi |
A6 |
2019-Present |
C8 |
2.0 TFSI |
| Audi |
A6 |
2019-Present |
C8 |
3.0 TFSI |
| Audi |
A7 |
2019-Present |
C8 |
3.0 TFSI |
| Audi |
A8 |
2019-Present |
D5 |
3.0 TFSI |
| Audi |
Allroad |
2019-Present |
C8 |
3.0 TFSI |
| Audi |
e-tron |
2019-2023 |
4M.5 |
e-tron |
| Audi |
Q7 |
2015-Present |
4M/4M.5 |
2.0 TFSI |
| Audi |
Q7 |
2015-Present |
4M/4M.5 |
3.0 TFSI |
| Audi |
Q8 |
2019-Present |
4M8 |
3.0 TFSI |
| Audi |
Q8 |
2018-Present |
4M8 |
e-tron |
| Audi |
RS6 |
2020-Present |
C8 |
4.0 TFSI |
| Audi |
RS7 |
2019-Present |
C8 |
4.0 TFSI |
| Audi |
S6 |
2019-Present |
C8 |
2.9 TFSI |
| Audi |
S7 |
2019-Present |
C8 |
2.9 TFSI |
| Audi |
S8 |
2019-Present |
D5 |
4.0 TFSI |
| Audi |
SQ7 |
2020-Present |
4M/4M.5 |
4.0 TFSI |
| Audi |
SQ8 |
2020-Present |
4M8 |
4.0 TFSI |
*Please note: The majority of 034Motorsport are processed straight away, but occasionally some applications have to be special ordered which can usually take up to 4-6 weeks. If there will be any delays in your order you will be informed within 24 hours.
Distributed By Haz Motorsport
Product Details
Brand: 034 Motorsport
Manufacturer Part Number: 034-401-10/82
Type: Density Line Control Arm Kits
Reference OE/OEM Number: 034-401-10/82~Density Line Front Control Arm Kits
Classic Part: Yes
Country/Region of Manufacture: United States
Features: High-Durometer Rubber Bushings (65 - 70 Durometer)~Complete, Drop-In Replacement for Factory Upper Control Arms~Offers Improved Handling Feel & Steering Precision~No Fluid, So Unlike OE Arms, the Bushings Cannot Leak~Includes New Hardware & Ball Joints
Interchange Part Number: 4M0407505B~4M0407506B~4M0407509B~4M0407510B~4M0407151L~4M0407152L~4M0407693F~4M0407694F~4M0407689C
Items Included: Density Line Front Control Arm Kits~Front Lower Control Arms - Front (Left & Right)~Front Lower Control Arms - Rear (Left & Right)~Front Upper Control Arms - Front (Left & Right)~Front Upper Control Arms - Rear (Left & Right)~Installation Hardware Kit
MPN: 034-401-10/82
Performance Part: No
Placement on Vehicle: Front~Left~Right
