ACL RACE SERIES ROD BEARING SET For BMW N54/N55/S55
ACL BMW N54/N55/S55 RACE Series Standard Size Performance Rod Bearing Set
The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings. Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications.
Features:
- High strength overlay plate with reduced thickness for improved fatigue properties
- Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
- Increased crush for improved bearing retention
- Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
- Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
- 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
- Tight consistent wall tolerances to help you maintain consistent clearances.
- Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
Sizes: STD
Half Type: Upper & lower
Material: F781
Min. Std Shaft Size: 49,973 mm / 1.9674 in
Max. Std Shaft Size: 49,993 mm / 1.9682 in
Min. Std Tunnel Size: 53,6 mm / 2.1102 in
Max. Std Tunnel Size: 53,616 mm / 2.1109 in
Max Wall at Crown: 1,793 mm / 0.0706 in
Max Overall Length: 17,55 mm / 0.6909 in
Vehicle Fitment:
- BMW N54B30 BMW N54B30 2979cc Inline6 DOHC 4v Twin Turbo BMW X6 E71, BMW Z4 E89
- BMW N55B30 BMW N55B30 2979cc Inline6 DOHC 4v Turbo
- BMW S55B30 BMW S55B30 2979cc Inline6 DOHC 4v Twin Turbo
IMPORTANT NOTE REGARDING - STOCK LEVELS
If you are in urgent need of this product or have any doubt of whether it is in stock due to low quantity, please contact us prior to placing your order to check for availability.
Please read bullet points before purchase:
- The available item quantity is correct at the time of uploading this listing.
- This product may have multiple listings due to application of other suitable vehicles which affect stock levels.
- This product may also be listed on our website which it may be sold through.
- This product may also have sold through our retail store.
*Please note: The majority of ACL products are processed straight away, but occasionally some applications have to be special ordered which can usually take 5-10 working days. If there will be any delays in your order you will be informed within 24-48 hours.

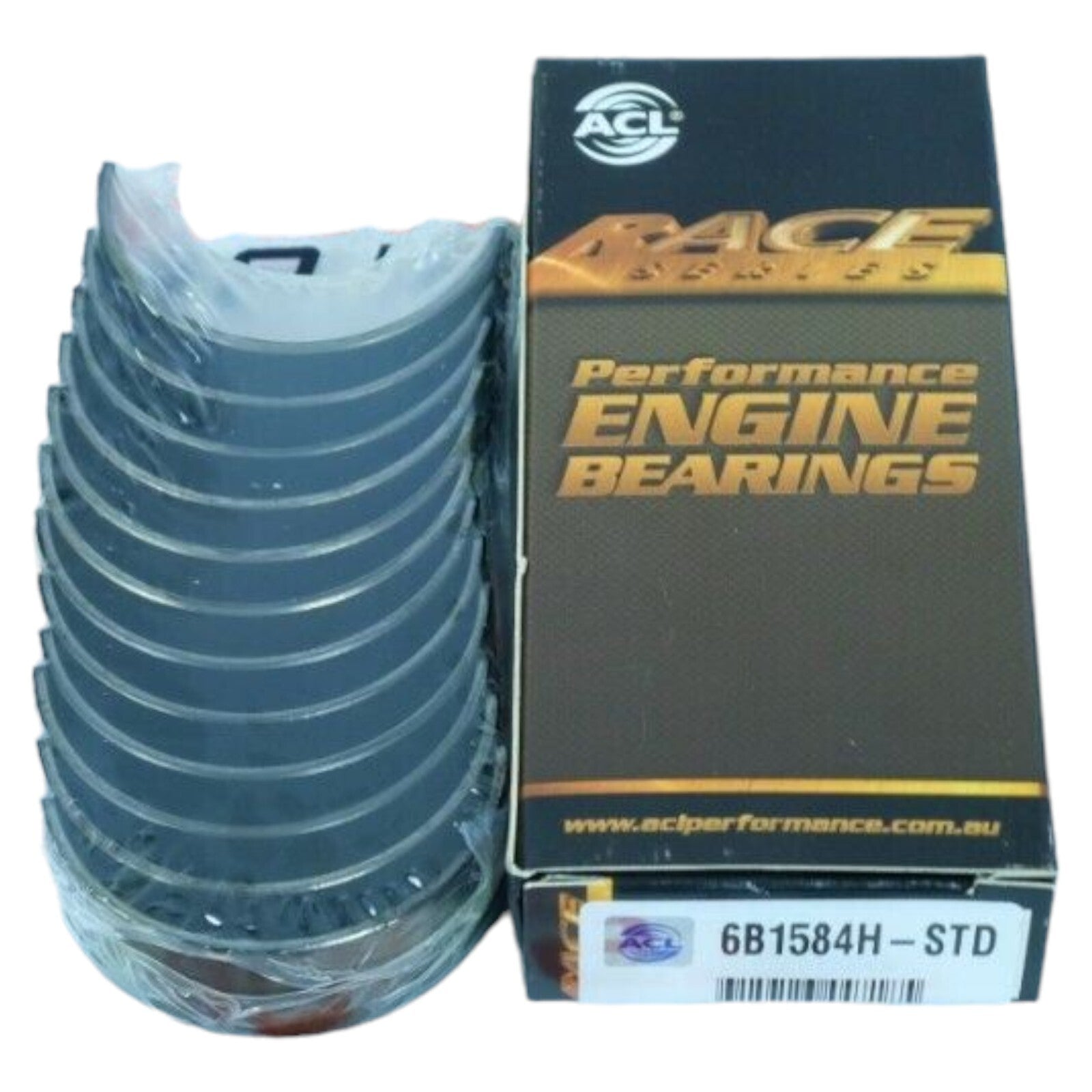

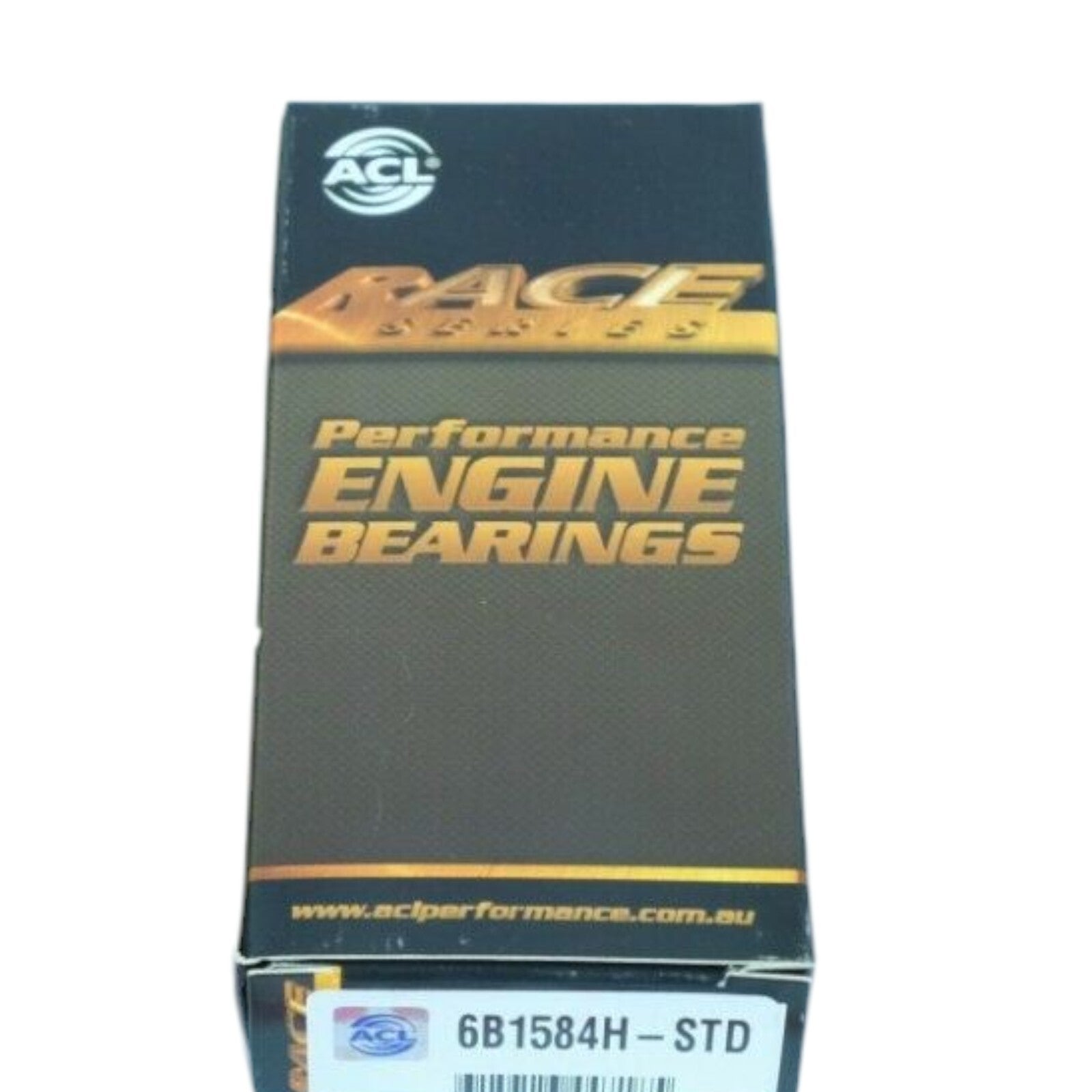

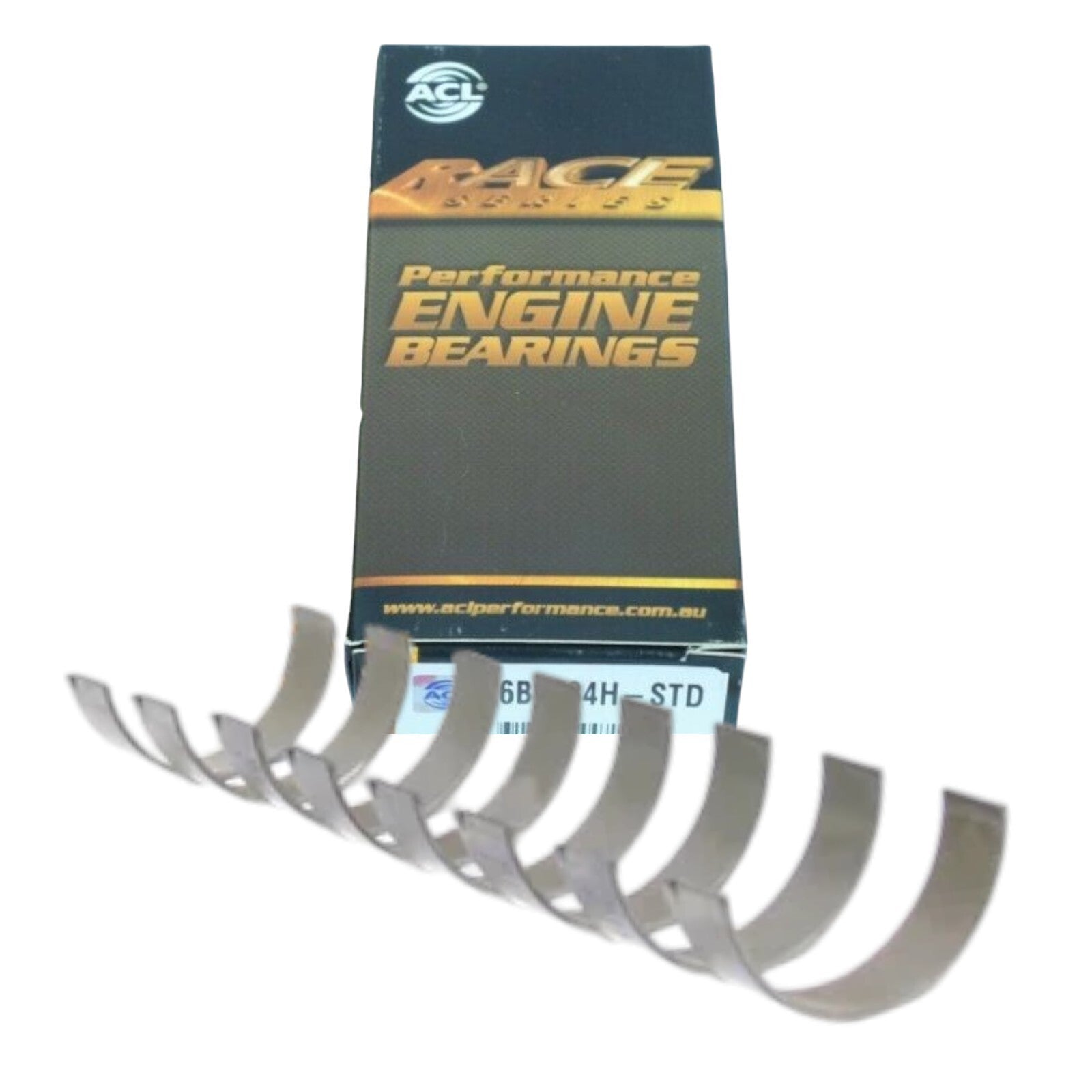

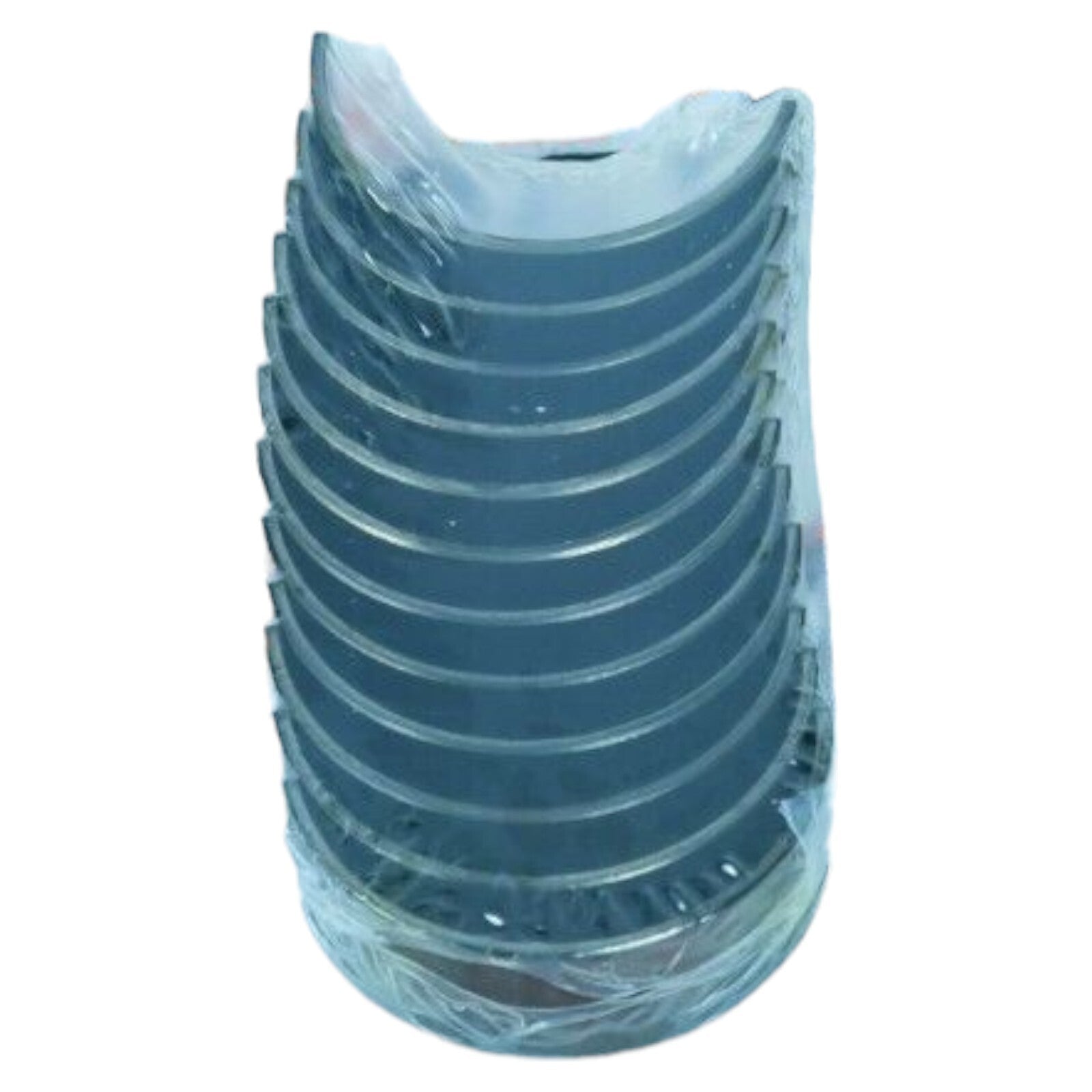

*Image for illustration purposes only
Distributed By Haz Motorsport
Product Details
Brand: ACL
Manufacturer Part Number: 6B1584H-STD
Type: RACE SERIES ROD BEARING SET
Reference OE/OEM Number: 6B1584H-STD
Manufacturer Warranty: N/A
Classic Part: No
Country/Region of Manufacture: Unknown
Finish: N/A
Grade: N/A
Interchange Part Number: N/A
Items Included: RACE SERIES ROD BEARING SET
Material: N/A
Number in Pack: N/A
Performance Part: Yes
Superseded Part Number: N/A
Universal Fitment: No
