Airtec Motorsport Big Boost Pipe Kit For VW Golf MK8 R / GTI Clubsport Edition 45 / Audi S3 8Y / Cupra Leon MK4
As part of our expanding VAG product range, AIRTEC Motorsport is proud to launch our enlarged turbo inlet elbow upgrade for the MQB Evo engine (300-320ps), suitable for track or fast road use.
Developed in-house at AIRTEC HQ in the UK, we’ve created a comprehensive solution to improving the car’s original pipework to allow more flow and capacity whilst reducing restriction and improving response.

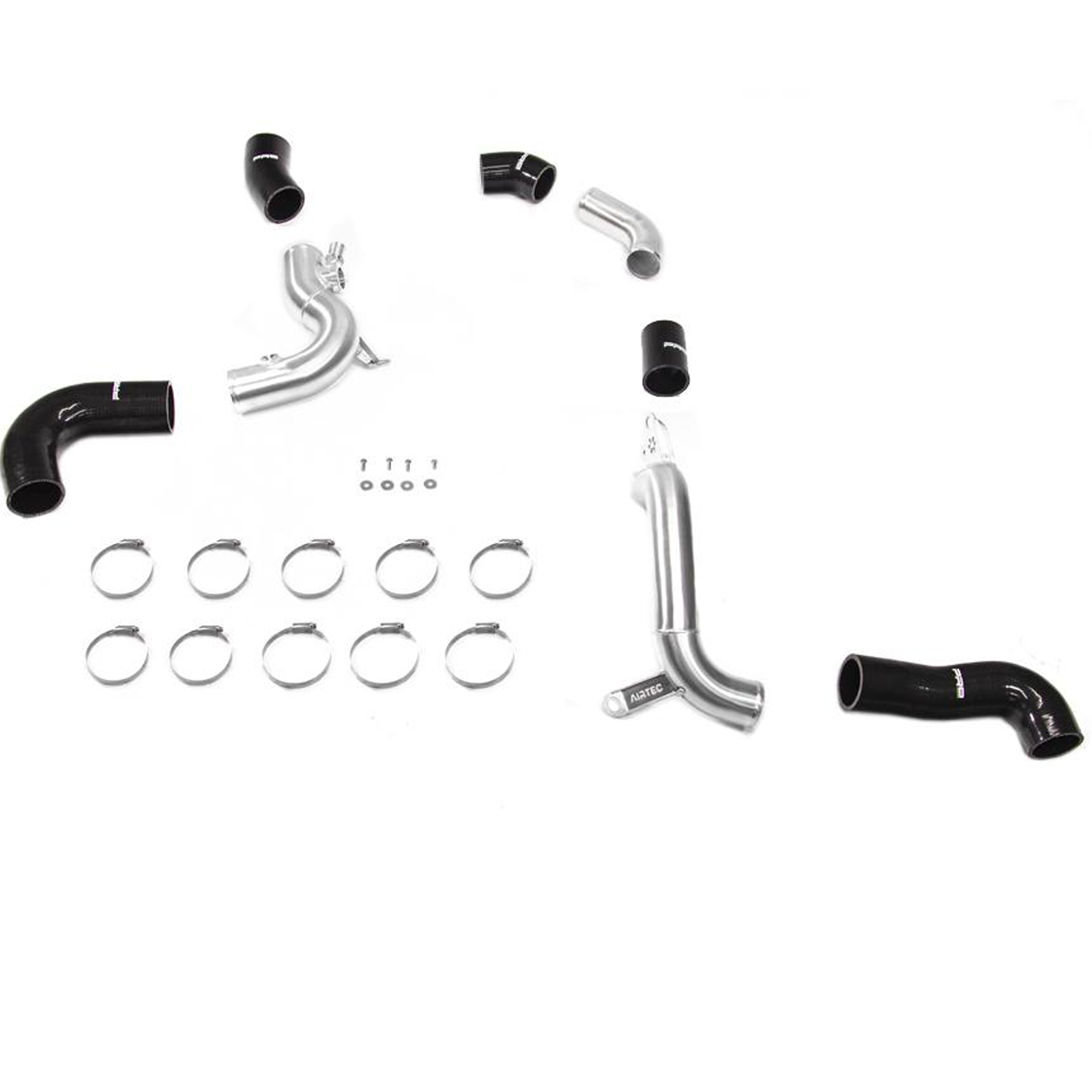

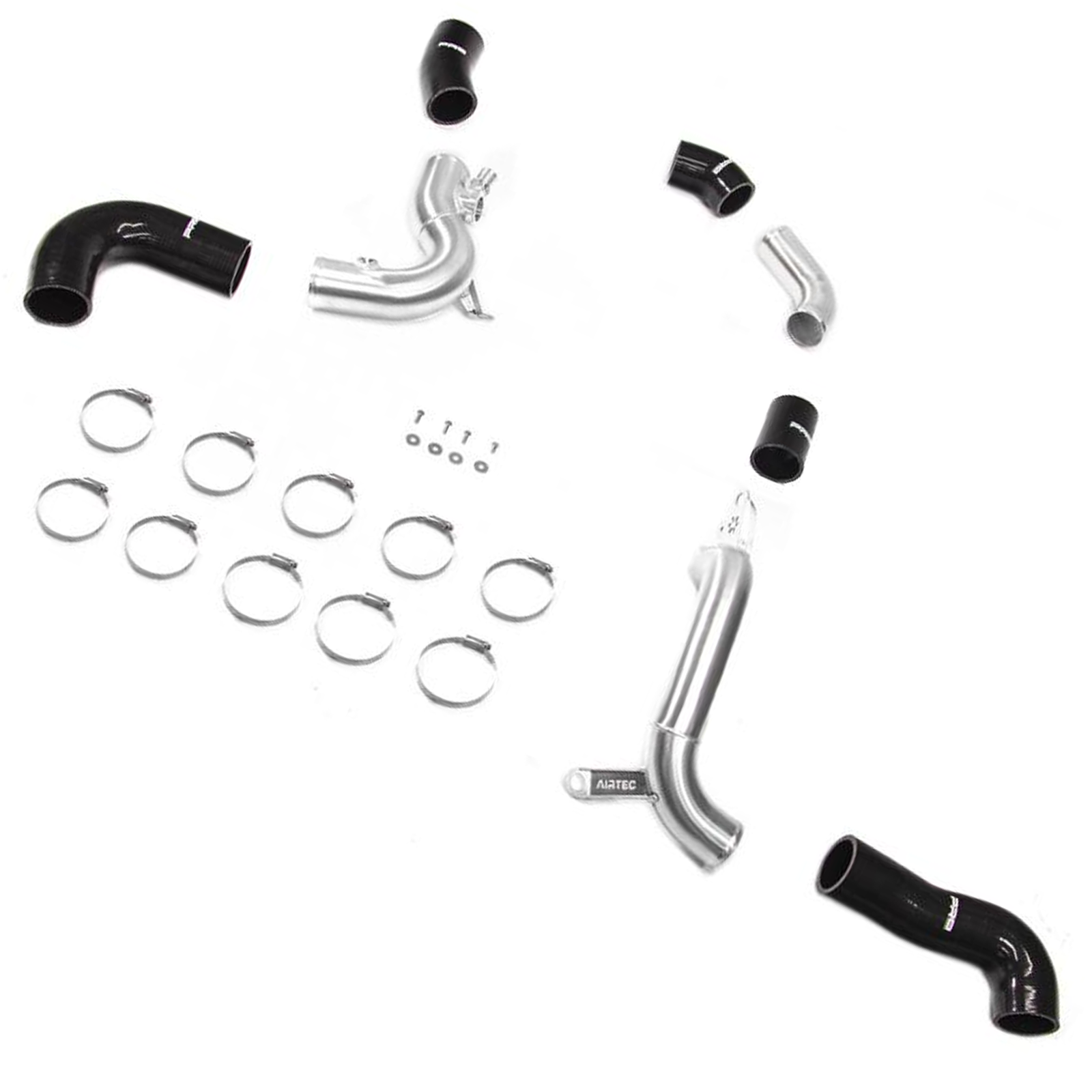

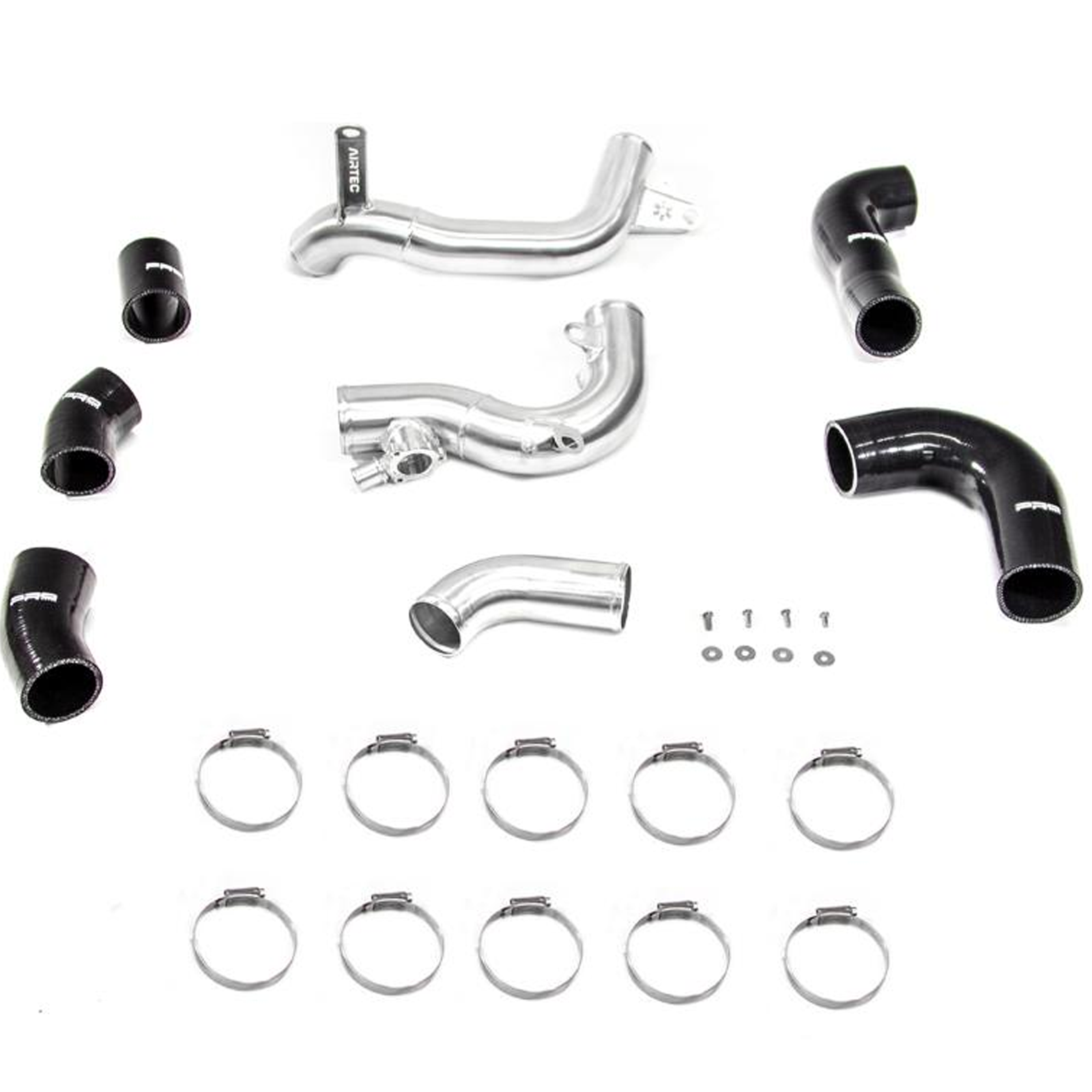

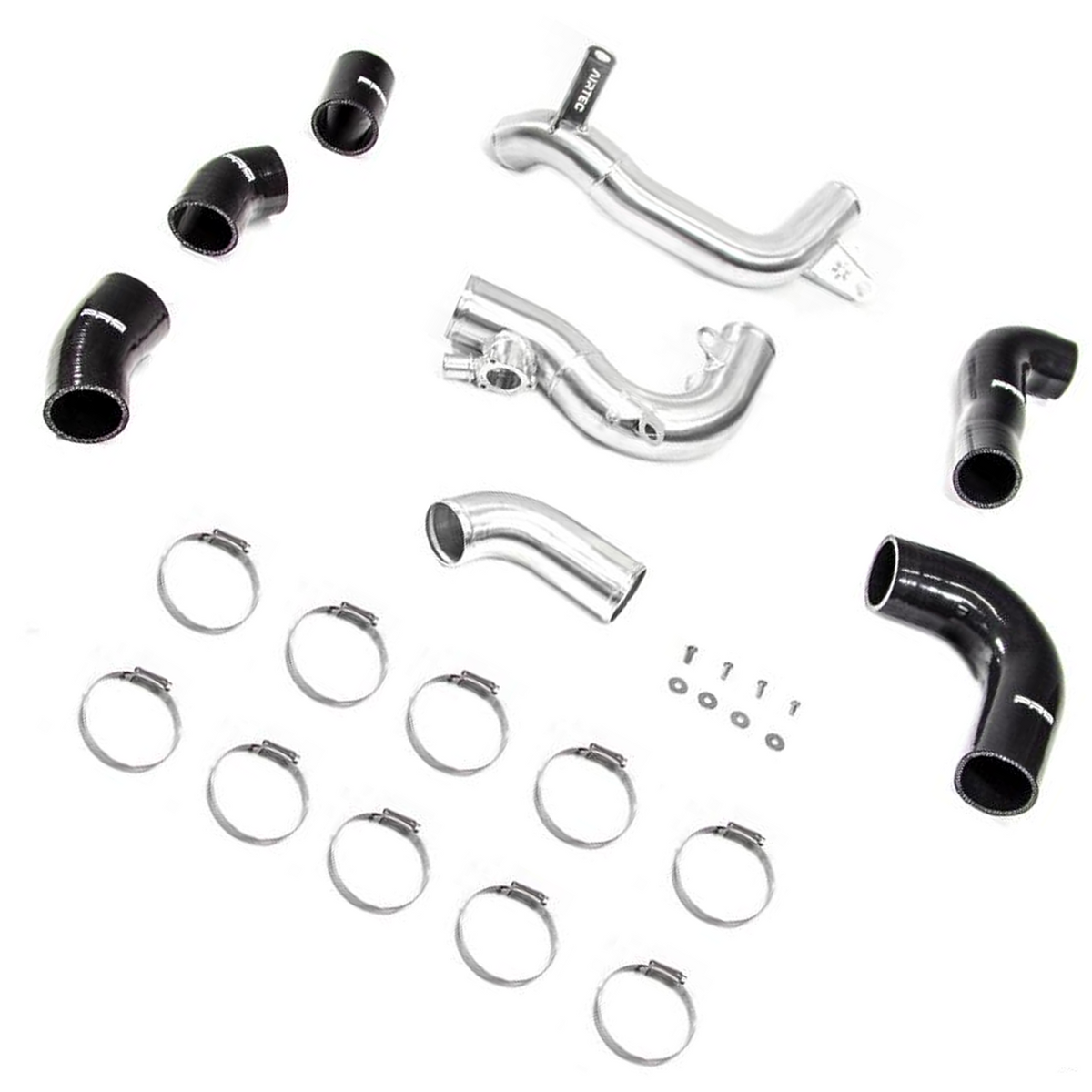

The comprehensive 8-piece kit features three pipes constructed from lightweight aluminium for improved strength so they will not fail with higher boost pressure as well as five Pro Hoses silicone joiners/hoses to make fitting as simplistic as possible.
For the cold side from the intercooler to the throttle body, the original pipework begins at 60mm and tapers to 58mm in diameter, but our replacement features a 70mm internal diameter throughout until it meets the throttle body, increasing both flow and capacity.
On the hot side coming from the turbo to the intercooler, the original pipework measures 60mm where as our kit features a 63mm internal diameter from start to finish with no restrictions. It also does away with the original resonator, which VW fits to reduce noise but removing it improves flow, capacity and noise.
The kit requires no additional drilling or cutting to fit and comes complete with all the correct fixtures and fittings, as well as detailed instructions.
A must have for any modified Mk8 Golf R models to help the improve the boost pipework’s flow and efficiency.
OEM COLD SIDE PIPE: 60mm
Cross sectional area: 2,827mm²
AIRTEC MOTORSPORT COLD SIDE PIPE: 70mm
Cross section area: 3,848.5mm²
36% bigger in cross sectional area
OEM HOT SIDE PIPE: 60mm
Cross sectional area: 2,827mm²
AIRTEC MOTORSPORT HOT SIDE PIPE: 63mm
Cross sectional area: 3,117.2mm²
10% bigger in cross sectional area
Details:
Comprehensive 8-piece kit designed specifically for the Mk8 Golf R
Larger internal diameter pipework offers improved flow
36% larger cross sectional area on cold side pipework
10% larger cross sectional area on hot side pipework
Lightweight aluminium construction for increased strength
High quality Pro Hoses silicone connectors
Comes complete with all fixtures and fittings
Fitting instructions included
Vehicle Fitment:
Audi S3 8Y – 2020 onwards
Cupra Leon Mk4 300 TSI FW – 2020 onwards
VW Golf Mk 8 GTI Clubsport – 2020 onwards
VW Golf Mk8 R – 2020 onwards
*ONLY FITS WITH AIRTEC MOTORSPORT INTERCOOLER UPGRADE*
