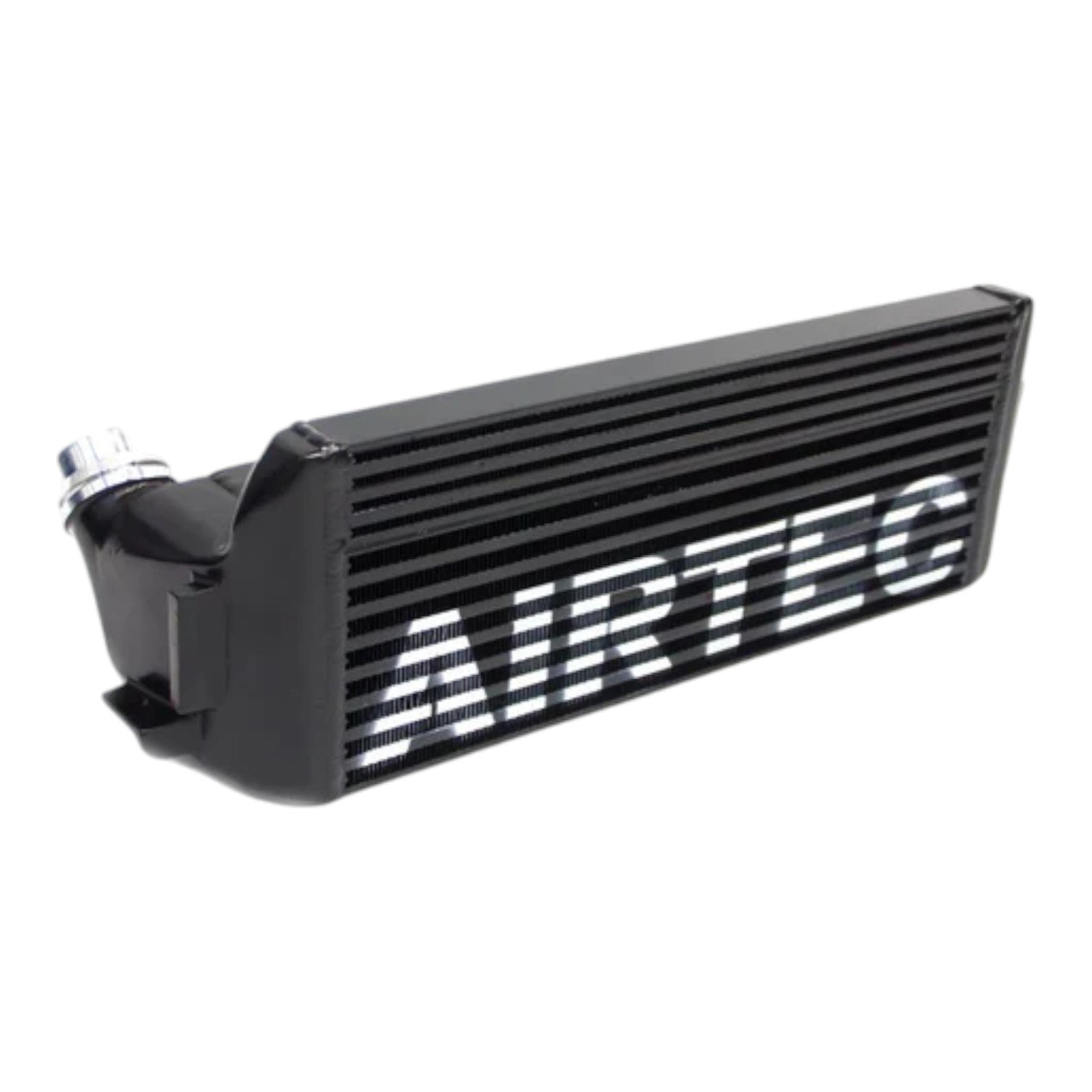

AIRTEC Motorsport Front Mount Intercooler for BMW Diesel Models (F-Series) 335D/435D inc X-Drive

Technical Data

As part of our expanding BMW product range, AIRTEC Motorsport is proud to launch our intercooler upgrade for the F-Series diesel models suitable for track or fast road use.

In order to ensure there is no noticeable loss in performance during extended periods of hard driving, we have developed a larger, freer-flowing intercooler that is a direct replacement for the smaller and more restrictive OEM item.

Our solution to increasing the intercooler’s size and performance within the confines of the limited space behind the bumper is based upon a taller core with an increased 90mm depth. This offers a massive 73% increase in overall capacity in comparison to the original intercooler, as well as a 90% increase in frontal area over standard, which allows it to make the most of the air flow provided.

Together with our high-flow, moulded one-piece cast end tanks to ensure flow is directed correctly and efficiently, the AIRTEC Motorsport intercooler offers much greater efficiency and volume over standard.

Available in a high quality powder coated black finish, the comprehensive kit is a direct replacement comes with all fixtures and fittings, as well as detailed fitting instructions.

Dimensions:
OEM Intercooler
Width: 510mm

Height: 130mm

Depth: 110mm

Capacity: 7.3 litres

Front area: 663cm²

AIRTEC Motorsport Intercooler
Width: 600mm

Height: 210mm

Depth: 140/40mm stepped

Capacity: 14.0 litres

Front area: 1,260cm²

Fits the following models:
1-Series models (F20/F21):
114i (2012-2015)
116i (2011-2015)
116i (2015+)
118i (2011-2015)
118i (2015+)
120i (2014-06/2016)
125i (2012-06/2016)
M135i (2011-2016)
114d (2012+)
116d (2011+)
118d(x) (2011+)
120d(x) (2011+)
125d (2012+)

2-Series models (F22):
218i (2015-2020)
220i (2014-06/2016)
228i(x) (2014-06/2016)
M235i(x) (2014-2016)
M2 F87 (2016-2018)
218d (20142020)
220d(x) (2014-2020)
225d (2014-2019)

3-Series models (F30/F31/F34):
316i (2011-2015)
318i (2015+)
320i(x) (2011-2015)
328i(x) (2011-2015)
335i(x) (2011-2015)
316d (2012+)
318d(x) (2012+)
320d(x) (2011+)
325d (2013+)
328(x)d (2013+)
330d(x) (2012+)
335d(x) (2013+)

4-Series models (F32/F36):
418i (2016-)
420i(x) (2013-2015)
428i(x) (2013-2016)
435i(x) (2013-2016)
418d (2014+)
420d(x) (2013+)
425d (2014+)
430d(x) (2013+)
435d(x) (2013

Features:

• Stepped intercooler design for maximum flow
• Designed and manufactured in the UK by AIRTEC
• AIRTEC cast end tanks for improved airflow and unbeatable strength
• 73% increase in overall capacity compared to original intercooler
• 90% increase in frontal area compared to original intercooler
• 3-year unlimited mileage warranty
• Available in Pro-Series black finish
• AIRTEC logo available at no extra charge
• Unbeatable value for money!
