Airtec Motorsport New Rear Wing Kit ATMSBMW21 For BMW F22 /F23 2-Series/F87 M2
Product Details
Manufacturer Part Number: ATMSBMW21
Brand: Airtec Motorsport
Country/Region of Manufacture: United Kingdom

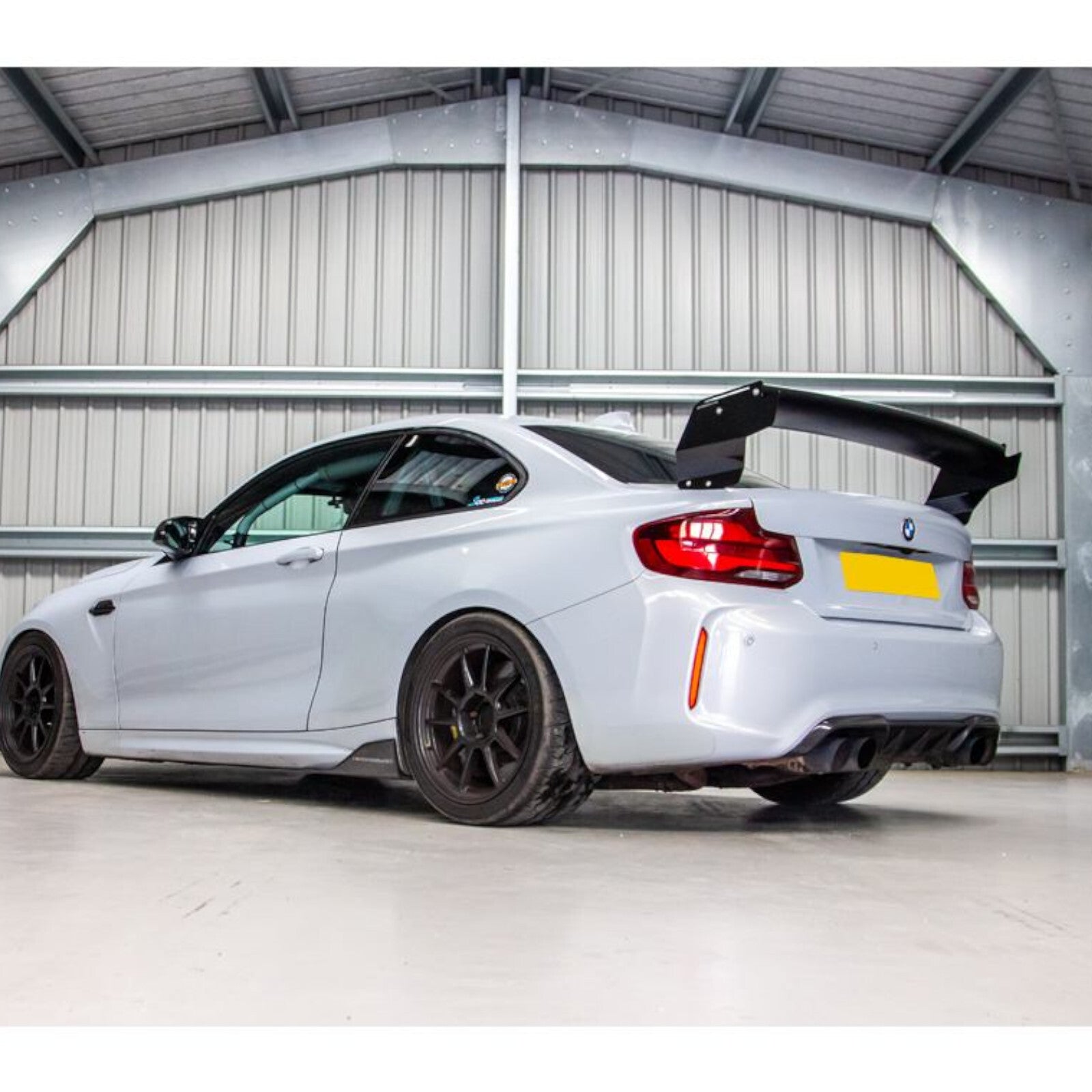

AIRTEC Motorsport is proud to launch our new rear wing kit for the BMW F22/F23 2-Series/F87 M2, suited to track or fast road use.
Several designs and variations were tried before we settled on this particular design, which has been designed to allow the car’s existing laminar flow to direct clean air under the aerofoil blade to produce a low pressure area, which will increase rear downforce and therefore stability at speed.
The DevelopmentEager to create an unrivalled product in this segment, we began with a 3D scan of the boot lid so we could design a CNC bracket that’s mounting surface followed the gentle curvature of the boot lid.
This was to ensure that when the bracket was fully tightened down it would not deform the boot lid, as you see in some cars fitted with these kinds of spoilers. We also chose to mount the bracket in an area that is double skinned for additional rigidity.
After trying other aerofoils, we also chose to develop a new longer aerofoil blade solely for this application.

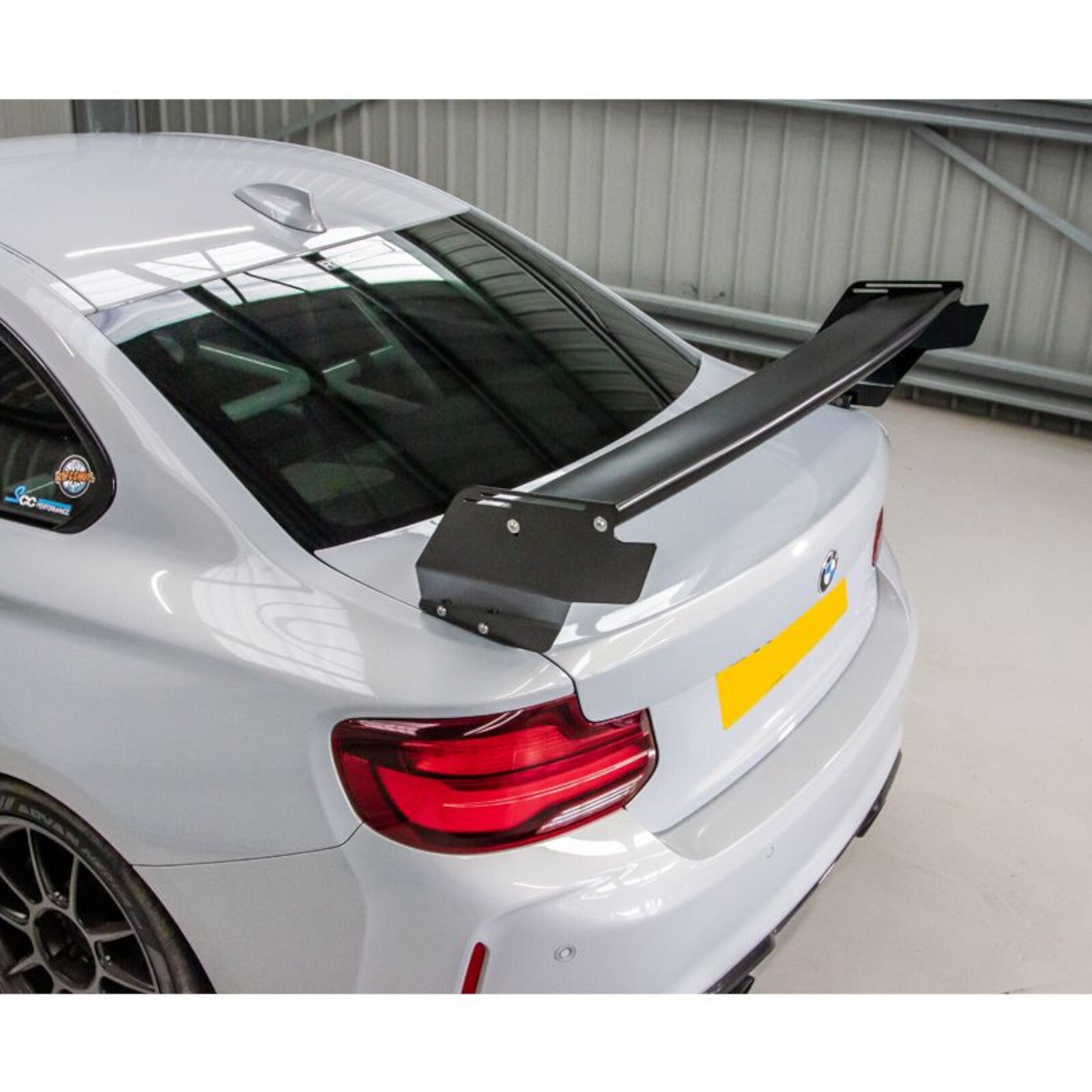

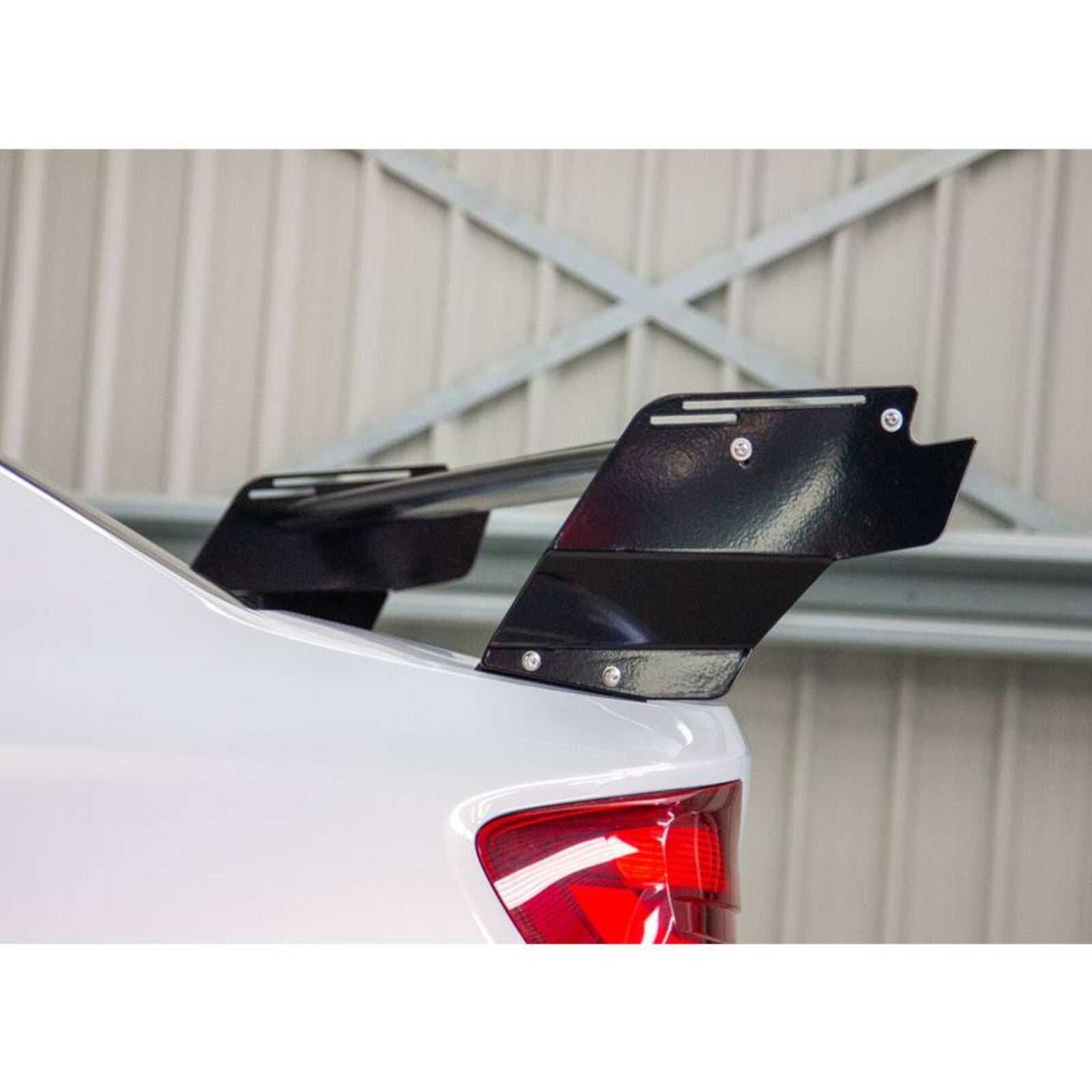

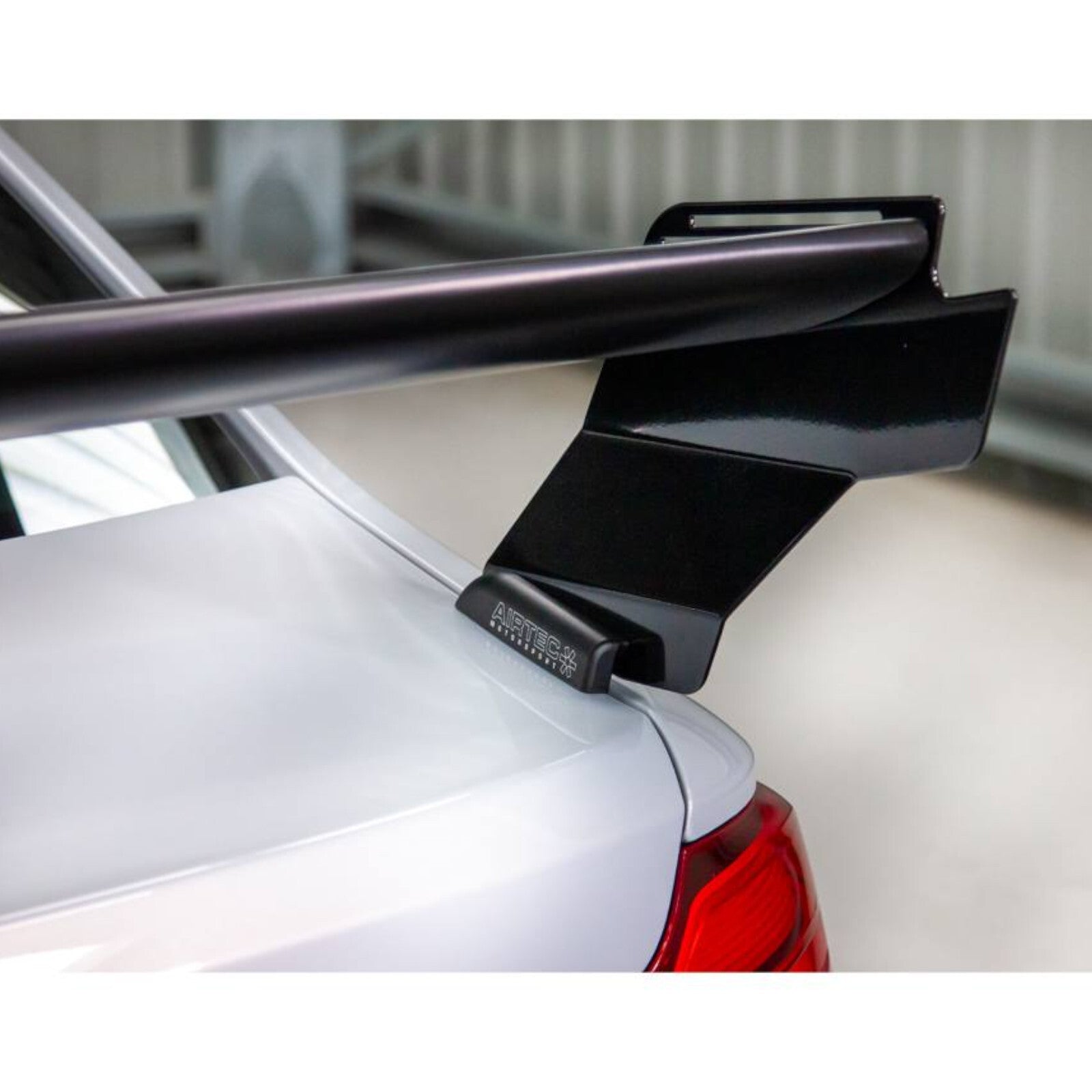

The DesignWe made the decision early on to create end plates that would also serve as the uprights to mount the spoiler. This clever design allows the entire width of the aerofoil to work more efficiently, as all of the air passing under it is completely undisturbed, which is not possible with centre mounted uprights. The end plates are also adjustable to suit a preferred set up.

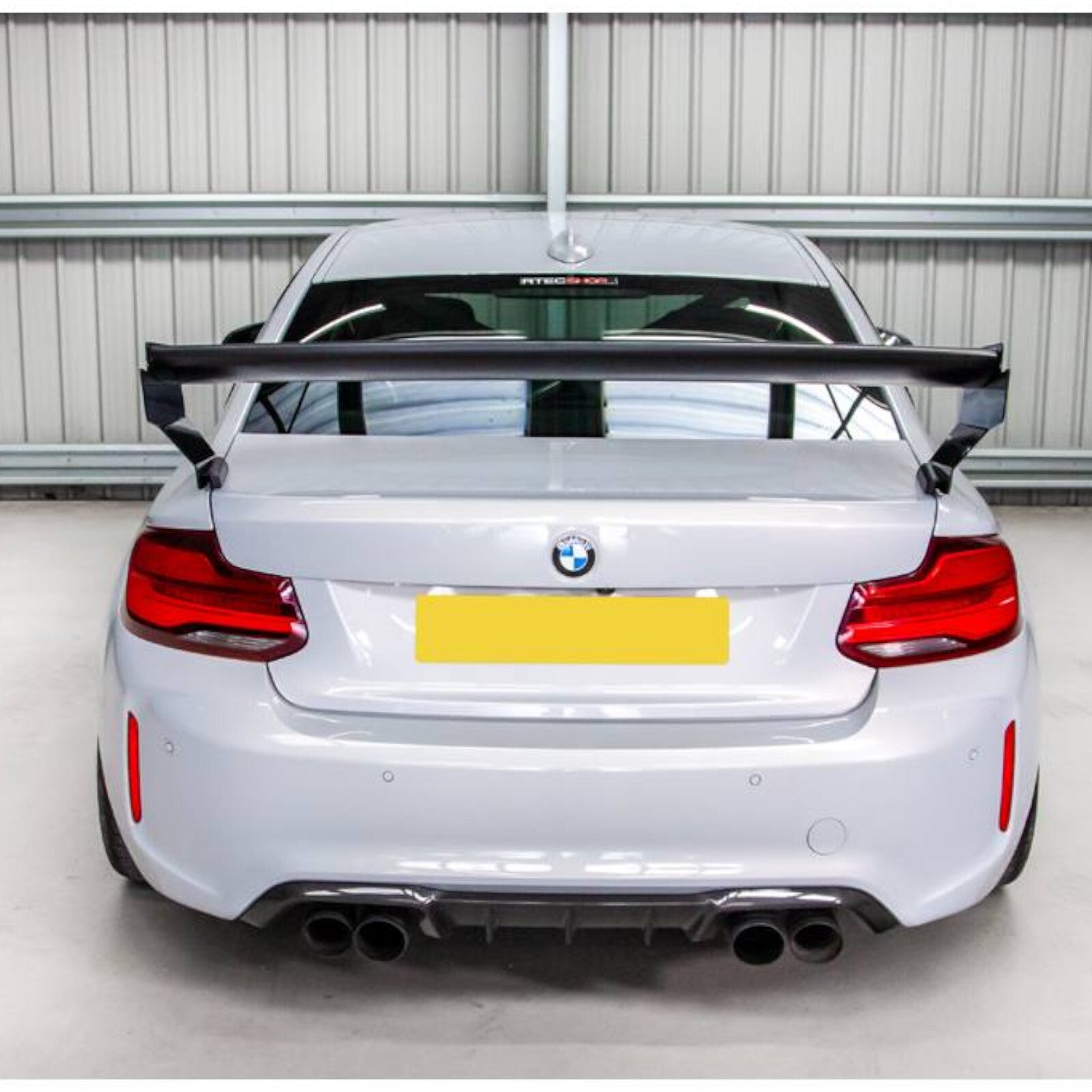

Whilst the wing design ensures its as wide as possible to allow as much clean air underneath it, it does not exceed past the car’s width or height dimensions to adhere to Nürburgring Regulations and Motorsport Blue Book Regulations. It’s also been designed to work with the original BMW lip spoiler (not pictured here).

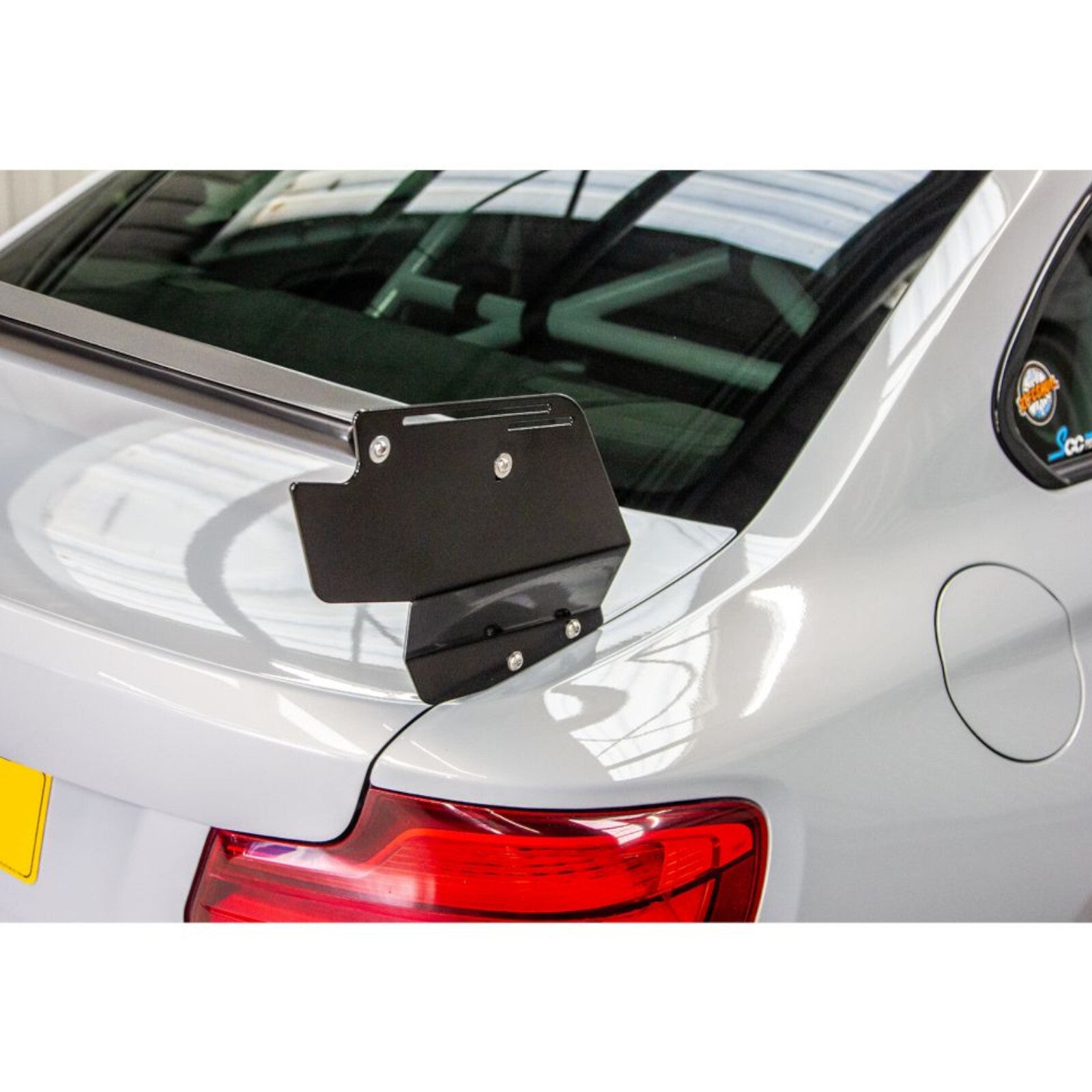

The mounting brackets are secured to the boot lid using six M6 bolts and once fitted, the fittings are all hidden from outside view.
Please note: this does require drilling to the boot lid.

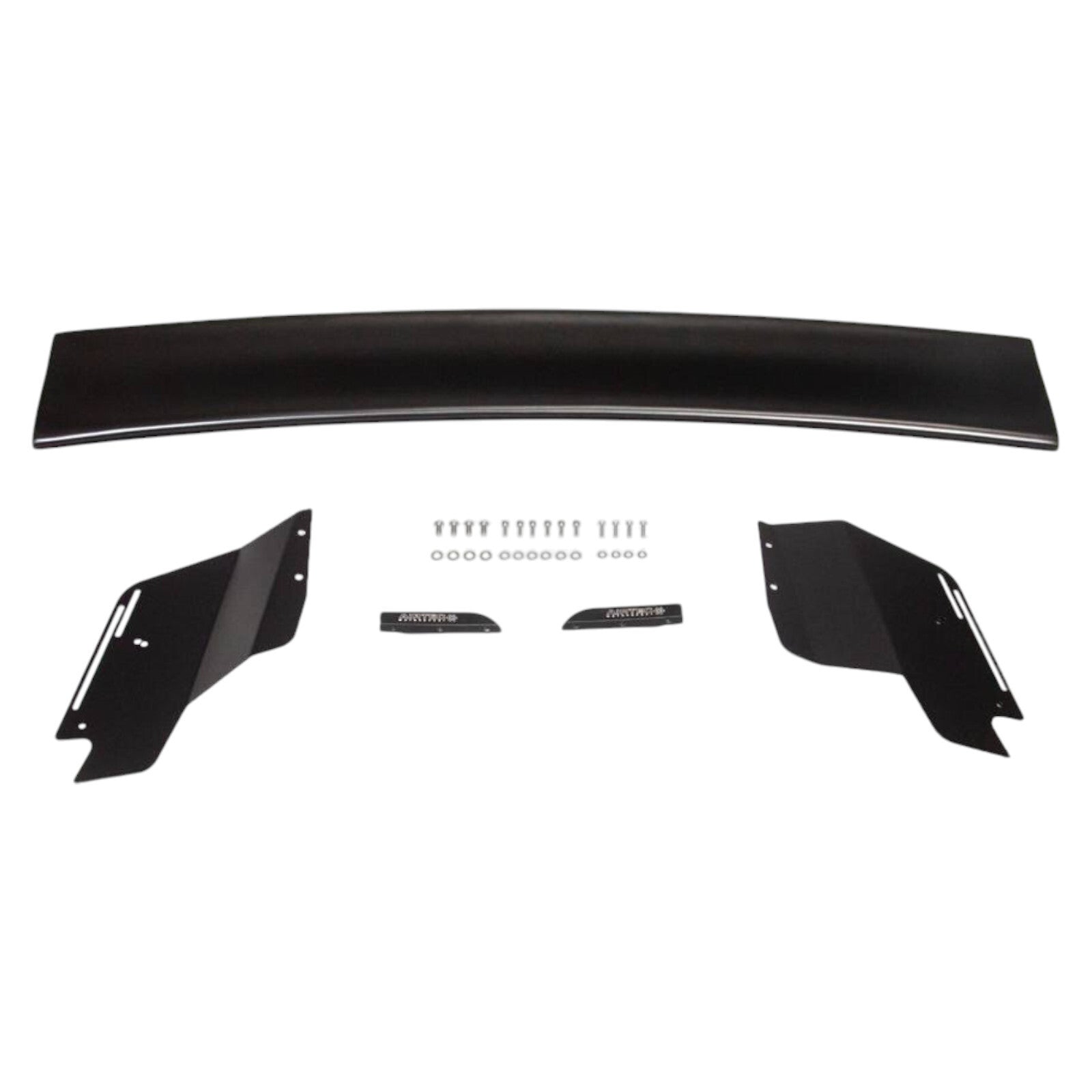

The kit features laser cut uprights in 3mm steel to ensure rigidity and are finished in a high-quality, satin black powder coat. The comprehensive kit also includes all fixtures and fittings, as well as detailed fitting instructions.
Features:Designed and developed specifically for the BMW F22/F23 2-Series/F87 M2
CNC mounting brackets that follow the curve of the boot lid to avoid deformation
Uprights work as the end plates to ensure the aerofoil works more efficiently
Rigid fixings ensure the wing is fully supported
High-quality black powder coated finish
Comprehensive fitting kit with all fixtures, fittings and detailed instructions
PLEASE NOTE:Drilling to the boot lid is required to fit this product
We endeavour to deliver an extremely high-quality product but due to the handmade manufacturing process there is the possibility of minopr imperfections on the centre wing blade.
**Please note: The majority of Airtec Motorsport products are processed straight away, but occasionally some applications have to be special ordered which can take upto a maximum of 10-15 working days for delivery. If there will be any delays in your order you will be informed within 24-48 hours.
*Image for illustration purposes only
IMPORTANT NOTE REGARDING - STOCK LEVELS
If you are in urgent need of this product or have any doubt of whether it is in stock due to low quantity, please contact us prior to placing your order to check for availability.
Please read bullet points before purchase:
The available item quantity is correct at the time of uploading this listing.
This product may have multiple listings due to application of other suitable vehicles which affect stock levels.
This product may also be listed on our website which it may be sold through.
This product may also have sold through our retail store.
Distributed By Haz Motorsport
Product Details
Brand: Airtec
Manufacturer Part Number: ATMSBMW21
Type: Rear Wing Kit
Reference OE/OEM Number: ATMSBMW21
Classic Part: No
Country/Region of Manufacture: United Kingdom
Features: High-quality black powder coated finish~Rigid fixings ensure the wing is fully supported
Finish: Powder-Coated~Black
Items Included: Rear Wing Kit
MPN: ATMSBMW21
Placement on Vehicle: Rear
Colour: Black
