Racingline Performance Height Adjustable Lowering Links For Air Suspension - Audi S6 S7 RS6 RS7 C8 / SQ7 Q7 4M 4M.5 / Porsche Cayenne 19+ / Bentley Bentayga 16-21 / Audi RSQ8 / SQ8 4M8
Lowering your air-suspension Audi couldn’t be easier with the RacingLine Height Adjustable Lowering Links.
What Do They Do?
RacingLine’s Height Adjustable Lowering Links allow you to set the precise ride height you want on your air-suspension Audi. The result? A more aggressive, dynamic look with a lower centre of gravity, enhancing vehicle dynamics and aesthetics but without compromising comfort or ride quality.
A wide range of adjustment gives a maximum vehicle lowering of up to 50mm / 2†front and rear.
Set your perfect ride height in situ on the vehicle without repeated removal/refit between adjustments. Just a turn of the link body adjusts each corner of the car one at a time.
High quality joints with rubber boots ensure long-lasting maintenance-free operation, whatever the weather & road conditions.
Fully compatible with your factory air suspension system, with no faults, coding or reprogramming required. Simple, quick fitment in minutes that’s fully reversible.
How Do They Work?
The OEM factory suspension level sensors rely on non-adjustable plastic links at each corner to tell the car’s on-board computer exactly how the car is sitting. Replacing these with our Height Adjustable Lowering Links allow you to accurately override what the sensors are reading on the car, giving you full control of your ride height.
By working hand in hand with the factory suspension potentiometer, different link lengths change the angle that the suspension level sensor reads. As nothing else is changed, this retains all the factory suspension features, functionality and quality without the need for any reprogramming or fitting expensive suspension components.
As the Air Suspension’s full functionality is retained, the exact drop will vary between modes on the MMI ride height selection – and still retains the ‘raise’ functionality for when you need that bit of extra clearance.
Details

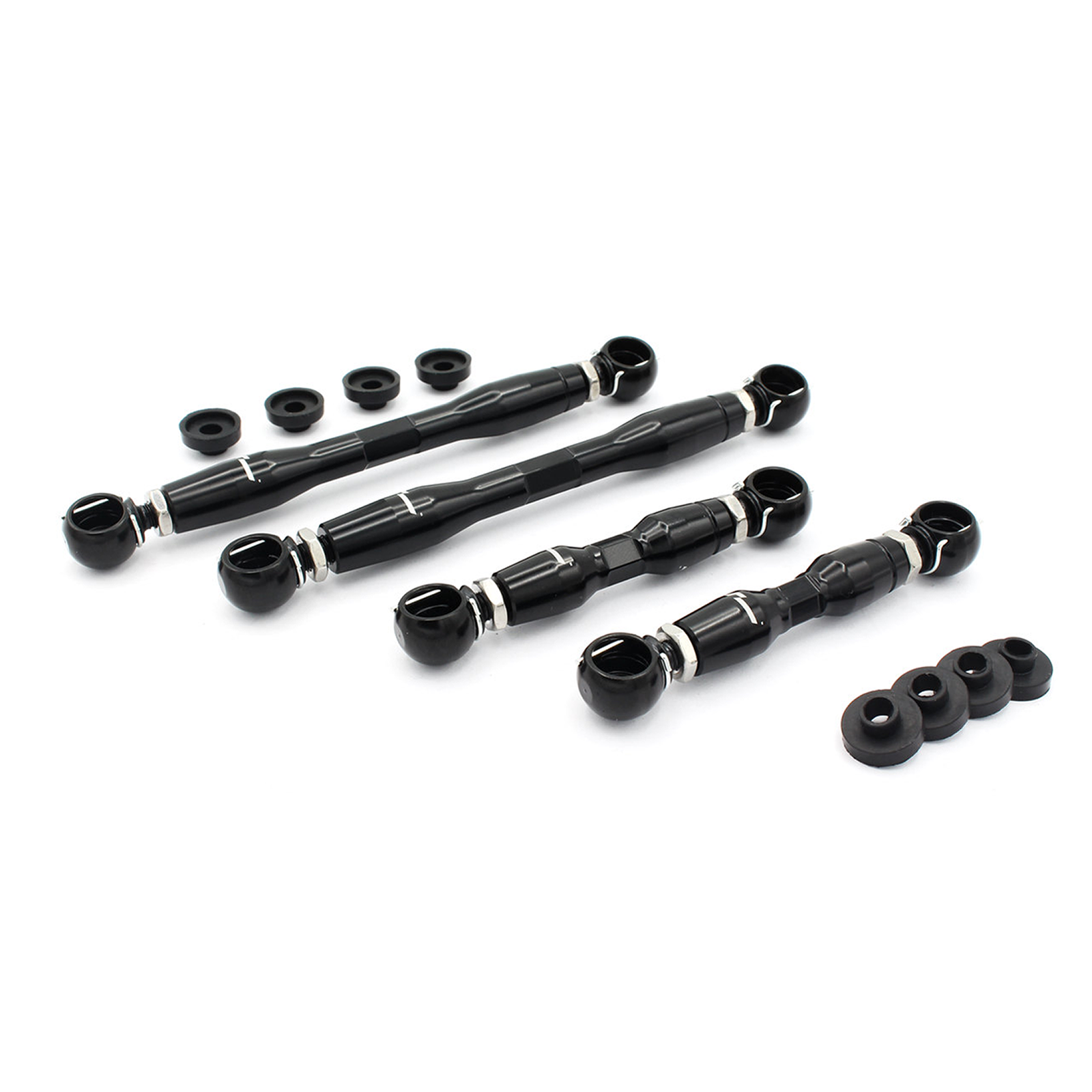

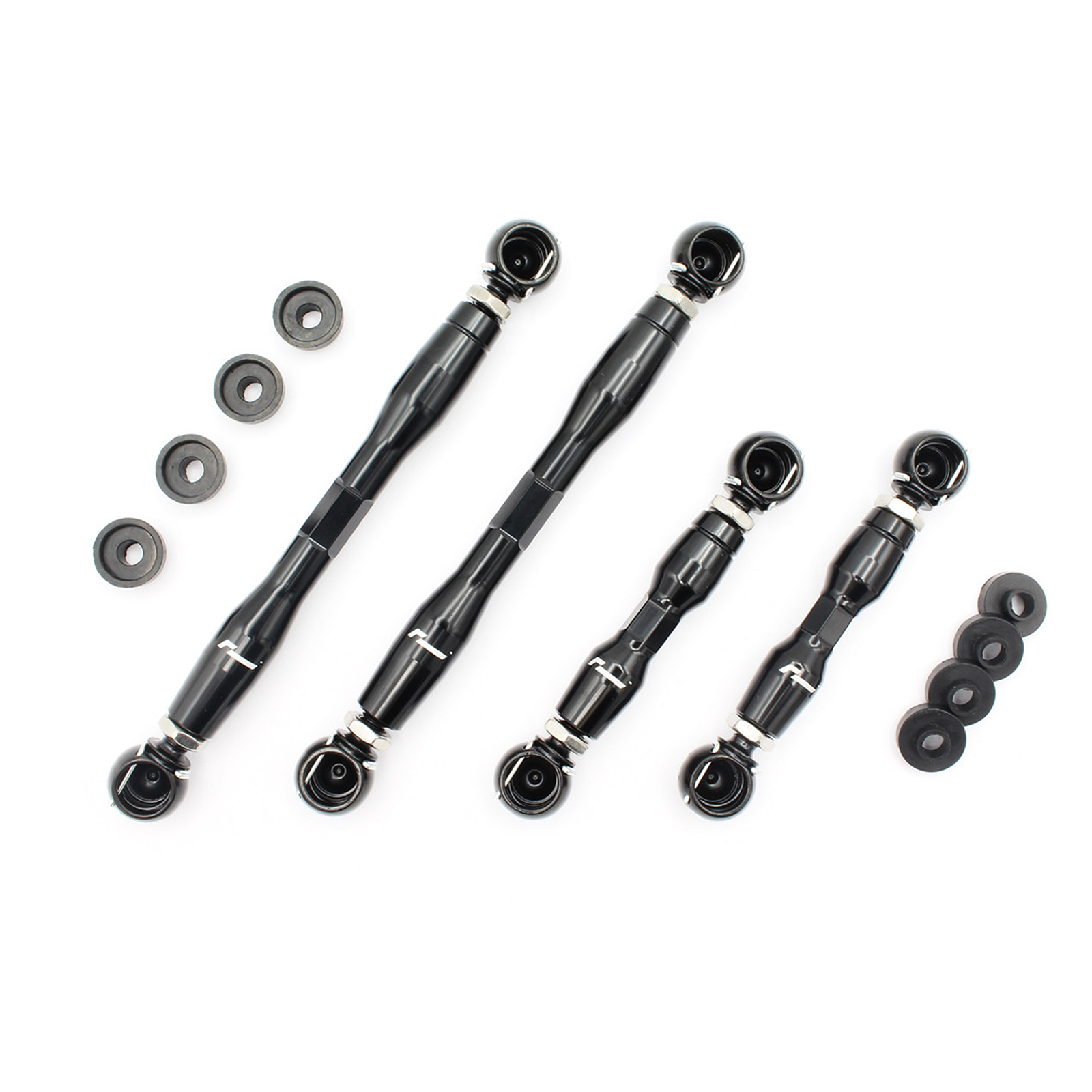

Billet CNC - machined 6061-T6 aluminium bodies, anodised in gloss black to protect the links whatever the weather & road conditions
Left and right-hand stainless steel threaded adjusters in each link to set your perfect ride height in situ on the vehicle without repeated removal/refit between adjustments
Links allow adjustment range from above stock height down to 50mm / 2 inches lower, front and rear
Rubber boots/seals over the ball joints to far outlast the OEM parts ensure that the assembly grease remains in place in these joints for maintenance-free operation
Front Link Dimensional Range 90-110MM (MEASURED END TO END)
Stock Height link length: 103mm
Shorten Link to Lower Car
Rear Link Dimensional Range 140MM-160MM (MEASURED END TO END)
Stock Height link length: 145mm
Lengthen Link to Lower Car
Vehicle Fitment - Vehicles With Factory Air Suspension Only
Audi SQ5 2017+
Audi A6 / S6 / RS6 C8 4K 2018+
Audi A7 / S7 / RS7 C8 4K 2018+
Audi RSQ8 / SQ8 / Q8 4M8 2018+
Audi Q7 / SQ7 4M 2016-2019
Audi Q7 / SQ7 4M.5 2020+
Audi E-tron Quattro MLB 2019+
Porsche Cayenne 2019+
Lamborghini Urus 2018-2021
Bentley Bentayga 2016-2021
*Please note: The majority of Racingline Performance products are processed straight away, but occasionally some applications have to be special ordered which can usually take 10-15working days. If there will be any delays in your order you will be informed within 24 hours.
Distributed by Haz Motorsport
Product Details
Brand: Racingline Performance Manufacturer Part Number: VWR436001 Reference OE/OEM Number: VWR436001 Fitment: VEHICLES WITH FACTORY AIR SUSPENSION ONLY Country/Region of Manufacture: United Kingdom
