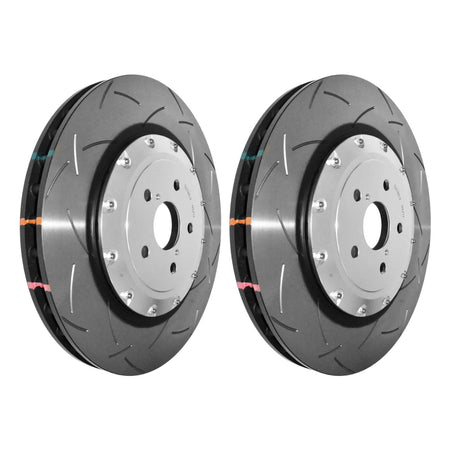

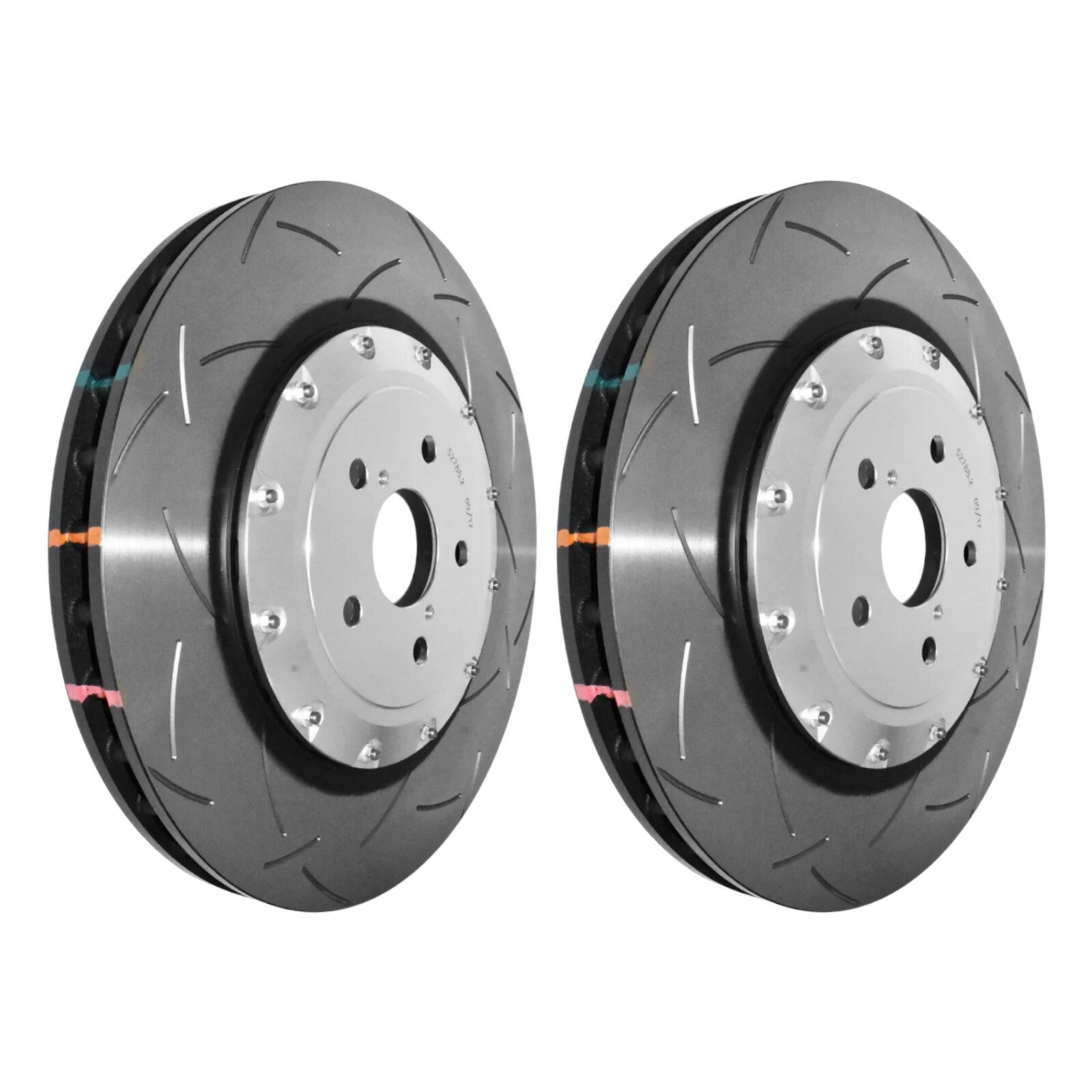

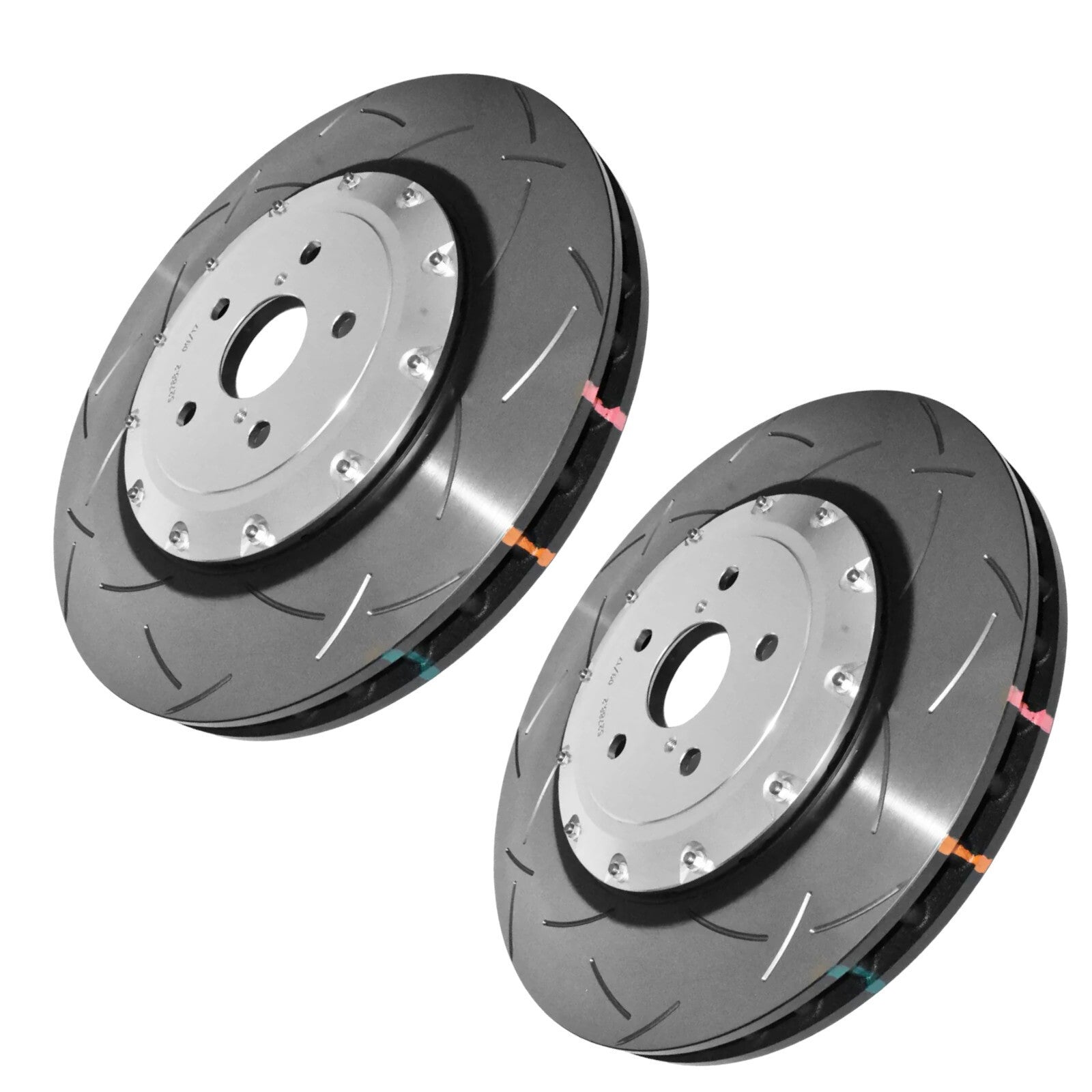

DBA 5000 T3 Slotted/Grooved Silver Brake Discs 365mm (PAIR) For Audi RSQ3 8U
5000 Series T3 is the ultimate in direct replacement 2 piece performance brake rotors Featuring all the benefits of the 5000 Series along with DBAs patented world renowned T3 bi directional slot design.
Sharing all the benefits of the 4000 SERIES, 5000 SERIES rotors are a composite 2 piece direct replacement brake rotor. We use only the highest quality materials to ensure optimal performance under the most strenuous circumstances, combining high carbon cast iron rings with aerospace grade aluminium hats (T6061-T6) held together with National Aerospace Standards (NAS) bolts and crimp nuts.
5000 SERIES shares all of the performance technology featured in the 4000 SERIES, with the added benefits of further weight reduction and improved heat management via the aluminium hats.
The use of aerospace grade aluminium hats reduces the unsprung weight of the brake rotors, whilst allowing for uniform radial disc expansion throughout the cast iron rings and reduced heat transfer from disc to hub via the aluminium hats.
We offer both complete assemblies for first time replacement (hats and flat discs bolted together) along with replacement hats and flat disc rotors. This allows drivers to re use their DBA 5000 SERIES hats with DBA replacement flat discs (rings).
We recommend 5000 SERIES for high performance street vehicles, track day and club racing, rally applications and show vehicles.
- Diameter [mm]: 365
- Height [mm]: 49.7
- Thickness [mm]: 34
- Minimum Thickness [mm]: 32
- Number of Holes: 5
- Ideal for high-performance applications
- 2-piece performance rotor with patented T3 slot design
- Hat made from extra lightweight 6061 T6 aircraft aluminium
- High machining quality & high carbon alloyed iron
Advantage
- Tri-Symmetrical curve slots dampens the vibration harmonics or noise
- Increased number of out-gassing exit points for brake pad friction gasses to escape through
- Universal slot design
- Increased surface area resulting in greater heat dissipation
- An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time
- Special formulation designed to respond to DBAs TSP process
- Heat paint markings change colour at specific temperature thresholds
- When temperature thresholds are exceeded paint markings will permanently change colours
- Reduces corrosion
Benefit
- A quieter, responsive and smoother brake pedal feel
- Increases the consistency and effectiveness of every brake stop
- Eliminates the need for left and right discs
- Minimises brake fade and increases braking effectiveness
- Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs
- Minimises warping and cracking and prolongs the service life of the rotor
- Offers the driver a clear indication of peak braking temperatures
- Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims
- Stops any unsightly rust formation
Vehicle Fitment:
- Audi RSQ3 8U 2013-2014 2.5 TFSI 310HP
- Audi RSQ3 8U 2015-2018 2.5 TFSI 340HP
- Audi RSQ3 8U 2016-2018 2.5 TFSI 367HP
PLEASE NOTE: Majority of DBA products are standard stock and will be with you in a few days. Estimated delivery times in this listing are for guidance purposes only. Delays in production can be due to high order volumes and occasionally some applications have to be special ordered which can usually take 4 weeks. If there will be any delays in your order you will be informed within 24 hours.
IMAGES FOR DISPLAY PURPOSES ONLY. DISCS MAY VARY SLIGHTLY DEPENDING ON VEHICLE APPLICATION
IMPORTANT NOTE REGARDING - STOCK LEVELS
If you are in urgent need of this product or have any doubt of whether it is in stock due to low quantity, please contact us prior to placing your order to check for availability.
Please read bullet points before purchase:
- The available item quantity is correct at the time of uploading this listing.
- This product may have multiple listings due to application of other suitable vehicles which affect stock levels.
- This product may also be listed on our website which it may be sold through.
- This product may also have sold through our retail store.
Distributed By Haz Motorsport
Product Details
Brand: DBA Brakes
Manufacturer Part Number: DBA52836SLVS
Type: Brake Disc Rotor
Bolt Pattern: N/A
Classic Part: No
Country/Region of Manufacture: Australia
Diameter: 365mm
Disc Vent:: Kangaroo Paw
ECE R90 Number: E11*90R02/06*60518*00
Features: N/A
Finish: N/A
Grade: N/A
Interchange Part Number: 8U0615301A~8U0615301B
Item Height: 49.7mm
Item Length: N/A
Item Thickness: N/A
Items Included: Silver Disc Brake Rotor 365mm
Minimum Thickness: 32mm
Number of Holes:: 5
Performance Part: Yes
Placement on Vehicle: Front~Left~Rear
Rotor Style: N/A
Superseded Part Number: N/A
Thickness;: 34mm
Total Weight :: 11.32kg
