For BMW F7X M135, M235, U1X X1, X2 M35 Eventuri Intake System Kit

For BMW F7X M135, M235, U1X X1, X2 M35 Eventuri Intake System Kit

Product Details:

Manufacturer Part Number: EVE-B48A20-CF-INT
Brand: Eventuri
Country/Region of Manufacture: United Kingdom
Box Type: M
Filter Type: S
Package Size in cm: 70x37x27
Performance Part: Yes
Weight: 5 kg

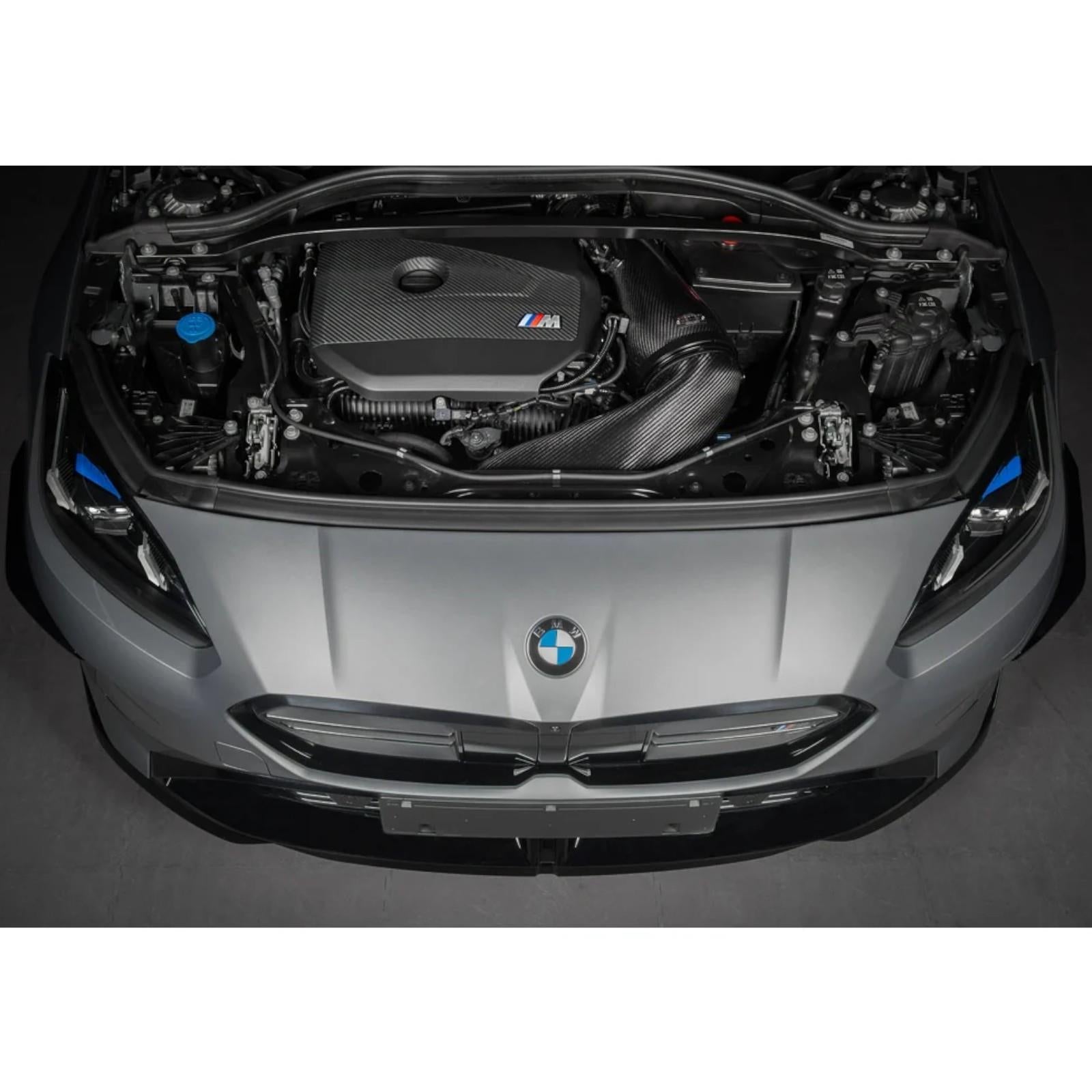

The Eventuri 2025 F7X, U1X M35 intake system consists of a number of components engineered to perform a specific purpose and fabricated to the highest of standards. Here are the details for each component and the design ethos behind them:

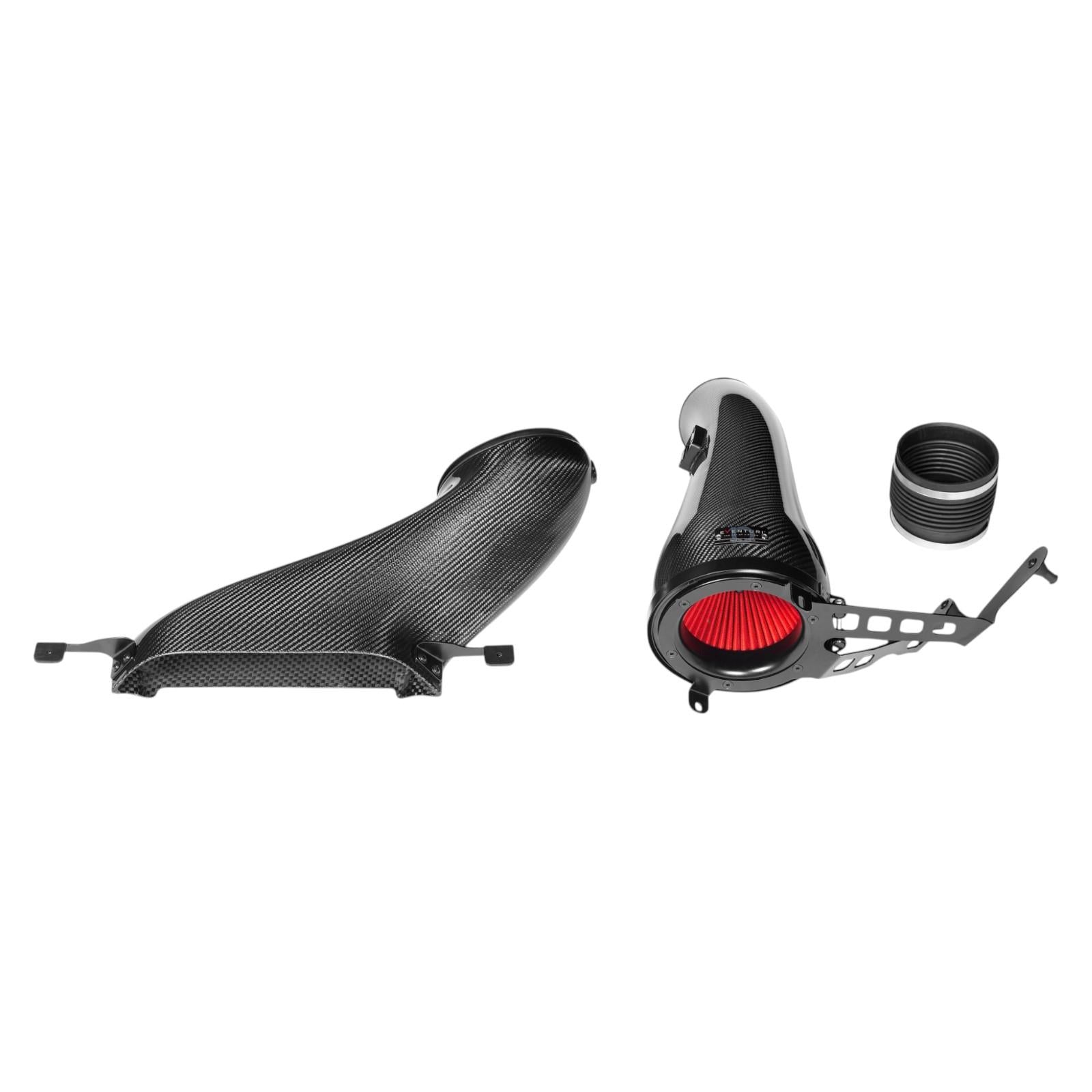

Each intake system consists of:

Carbon Fibre Venturi Filter Housing with integrated sensor tube
Bespoke High Flow Dry Filter
Carbon Fibre inlet Duct

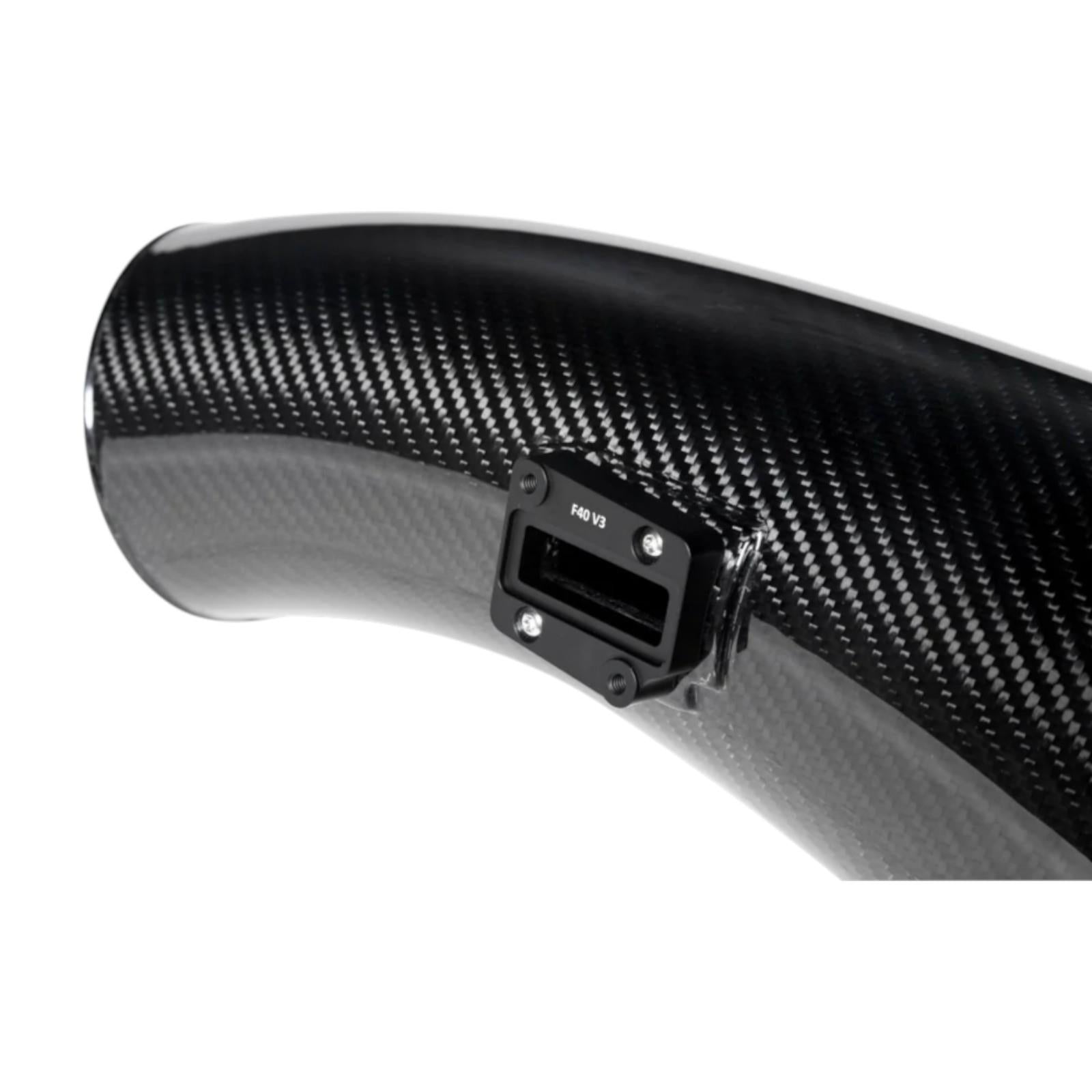

CNC Machined MAF Boss
Laser Cut Stainless Steel Bracket Work

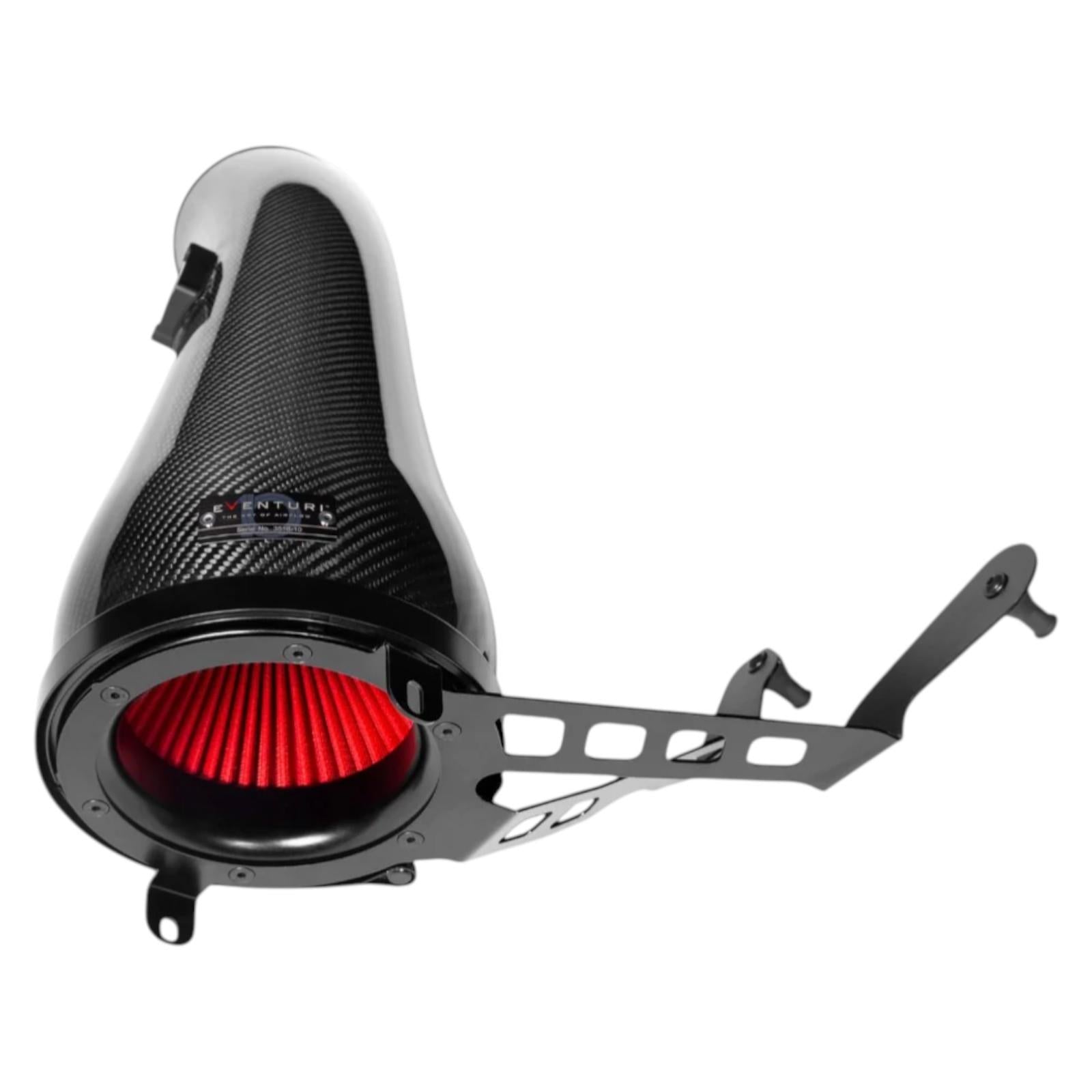

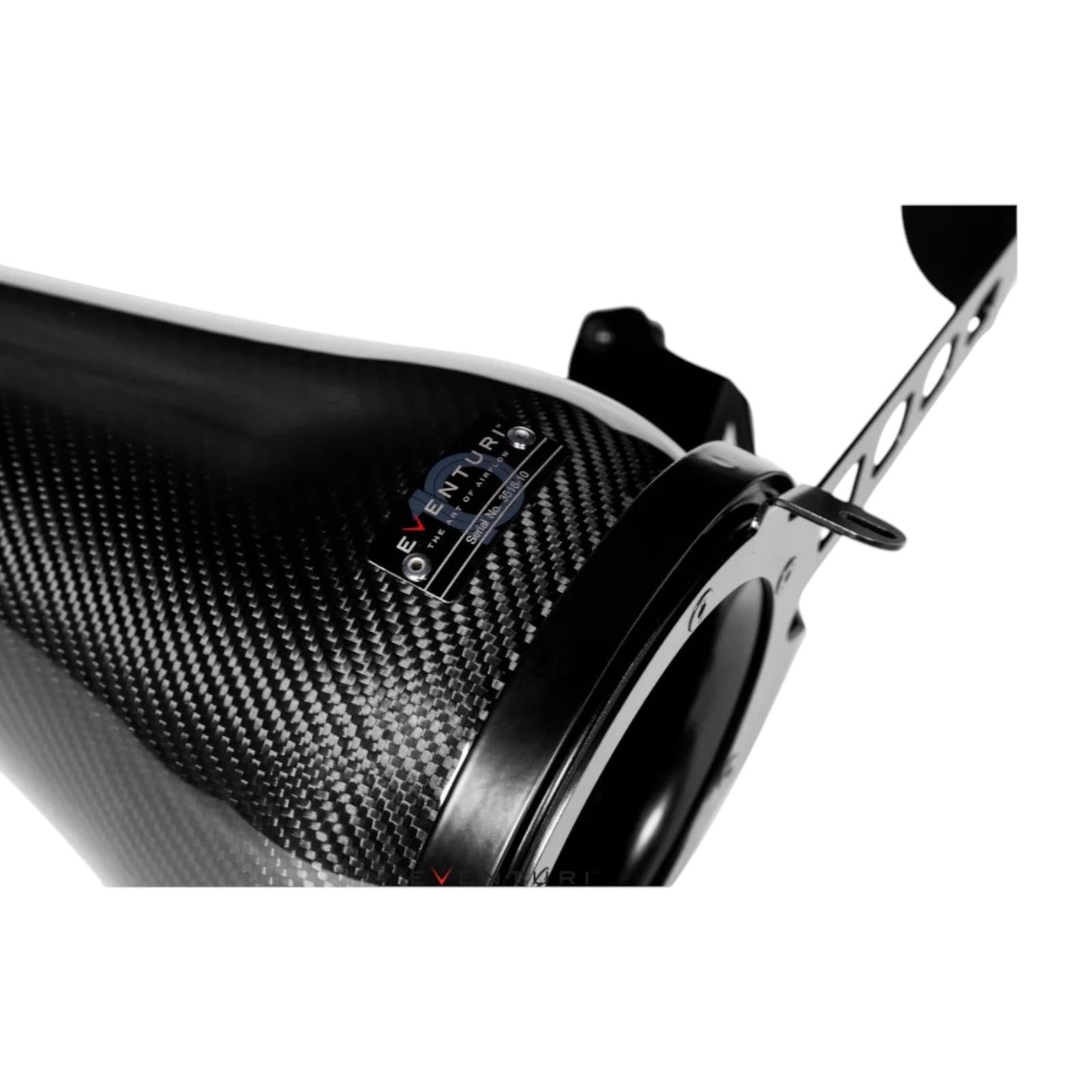

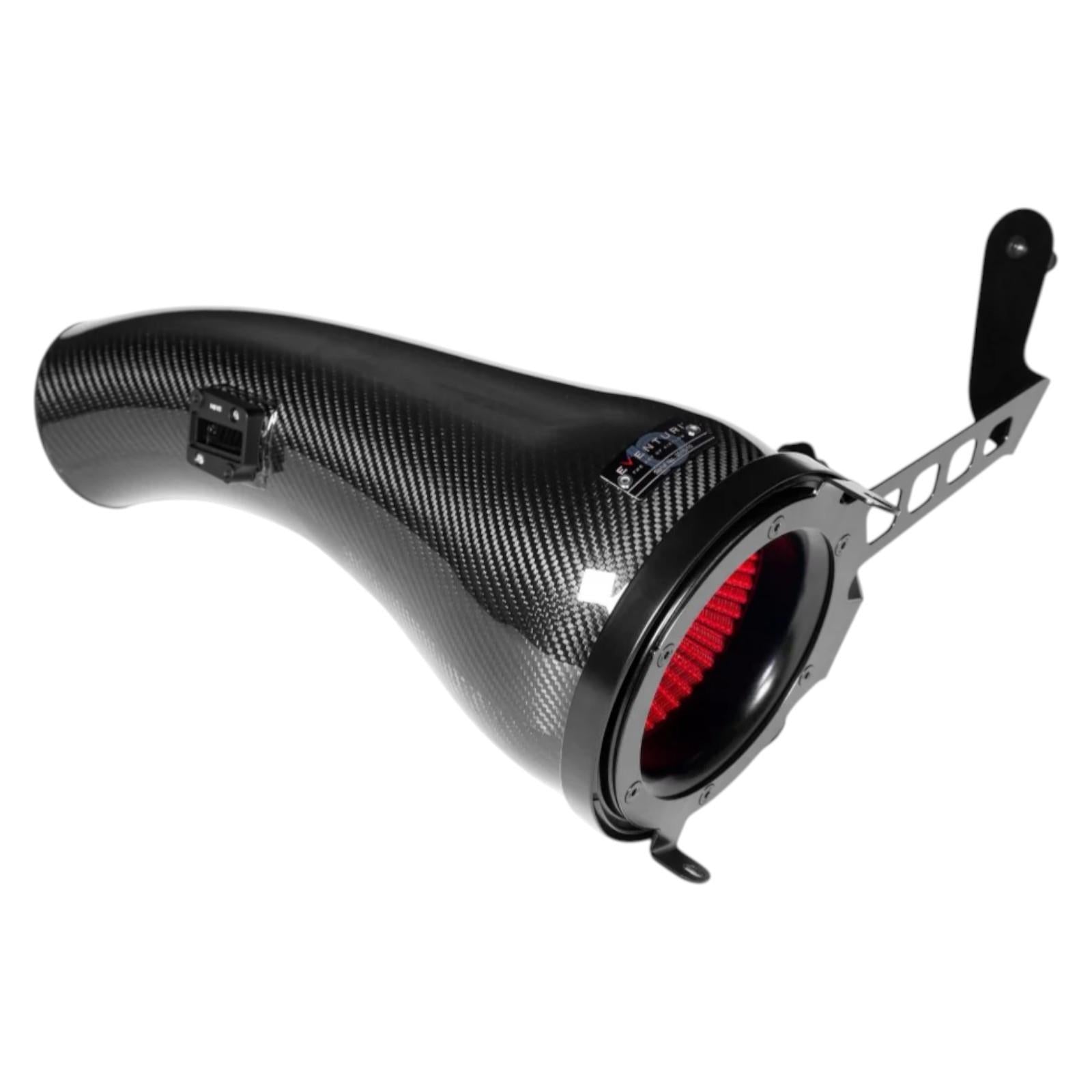

FILTER HOUSING ASSEMBLY

The filter housing comprises of our bespoke generation 2 filter, aluminium inlet cowl, stainless steel bracket and the integrated sensor section. The carbon pod shrouds the reverse mounted filter and smoothly shapes the airflow down to the sensor section which then connects to the custom flexible coupler. This changes the flow path from the OEM airbox where airflow enters the front of the airbox, changes direction by 90 degrees to travel through the panel filter and then changes direction again by 90 degrees to move towards the flexible hose. Our system is a lot more direct with airflow entering the front of the filter housing and and moving into the sensor section without any abrupt direction changes. The result is a smoother path from the filter to the turbo inlet tube and therefore the turbo is able to function with less drag.

PATENTED TECHNOLOGY

Our patented filter housing has a smooth reduction in cross sectional area as it shrouds the filter and tapers down to the tubing. This geometry invokes the Venturi effect where the airflow accelerates whilst maintaining laminar conditions. It can be thought of as a large velocity stack - below is a diagram to show the comparison between our patented design and a regular intake system. Our bespoke filters aid the airflow moving through the housings and allow for an even velocity profile as the airflow exits the housings. Further details can be read in the Technology and Filters pages.

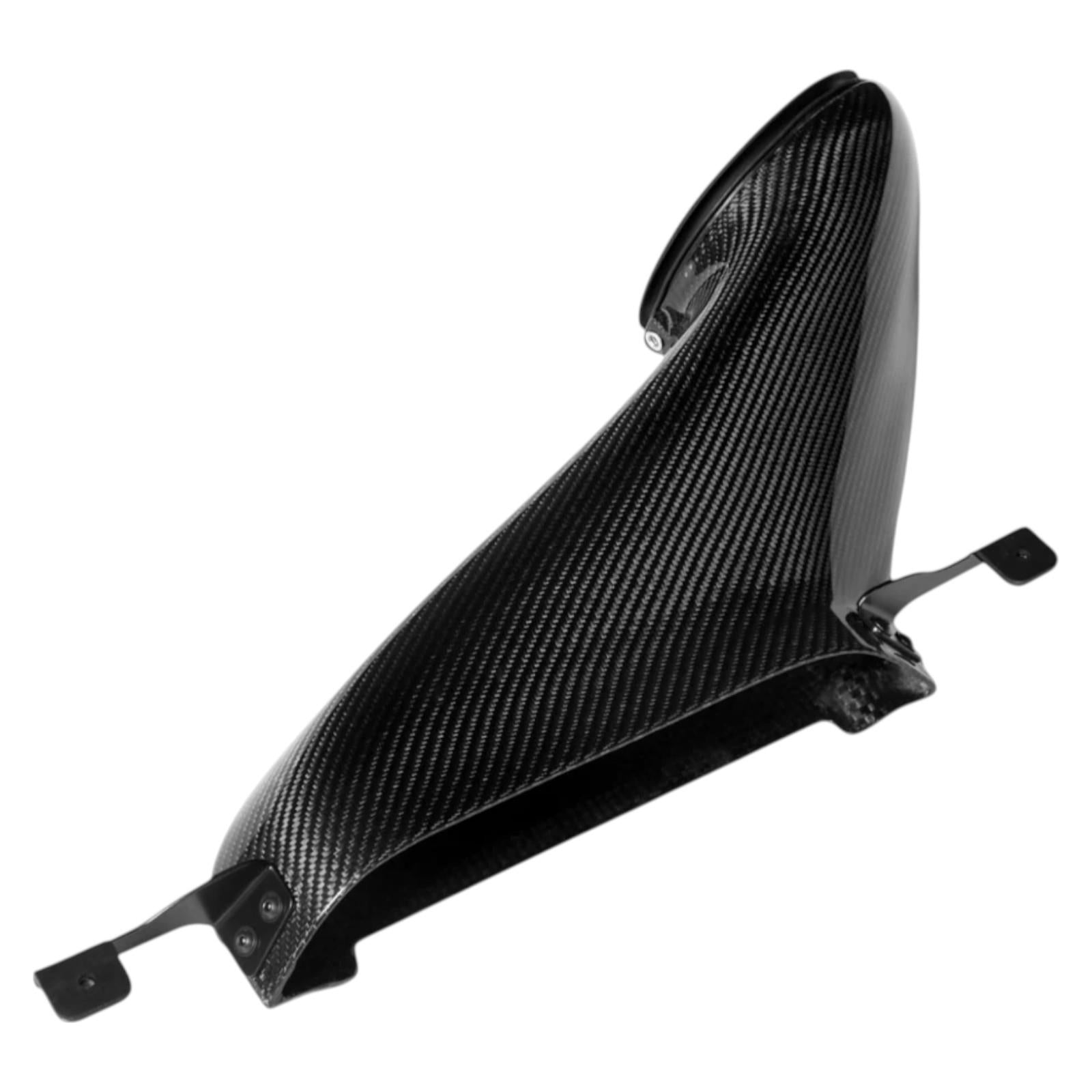

CARBON INLET DUCT

The carbon duct draws cold air from the stock air feed behind the front bumper, but it has a smoother flow path to the filter in comparison to the OEM version. By utilising organic curvature, we have been able to smoothly shape the flow to the opening of the filter housing and in doing so the overall flow efficiency is much improved. The duct seals to the filter housing with an expandable rubber edging, which also allows for engine vibration. It mounts to the OEM locations with hidden hardware keeping a clean engine bay aesthetic.

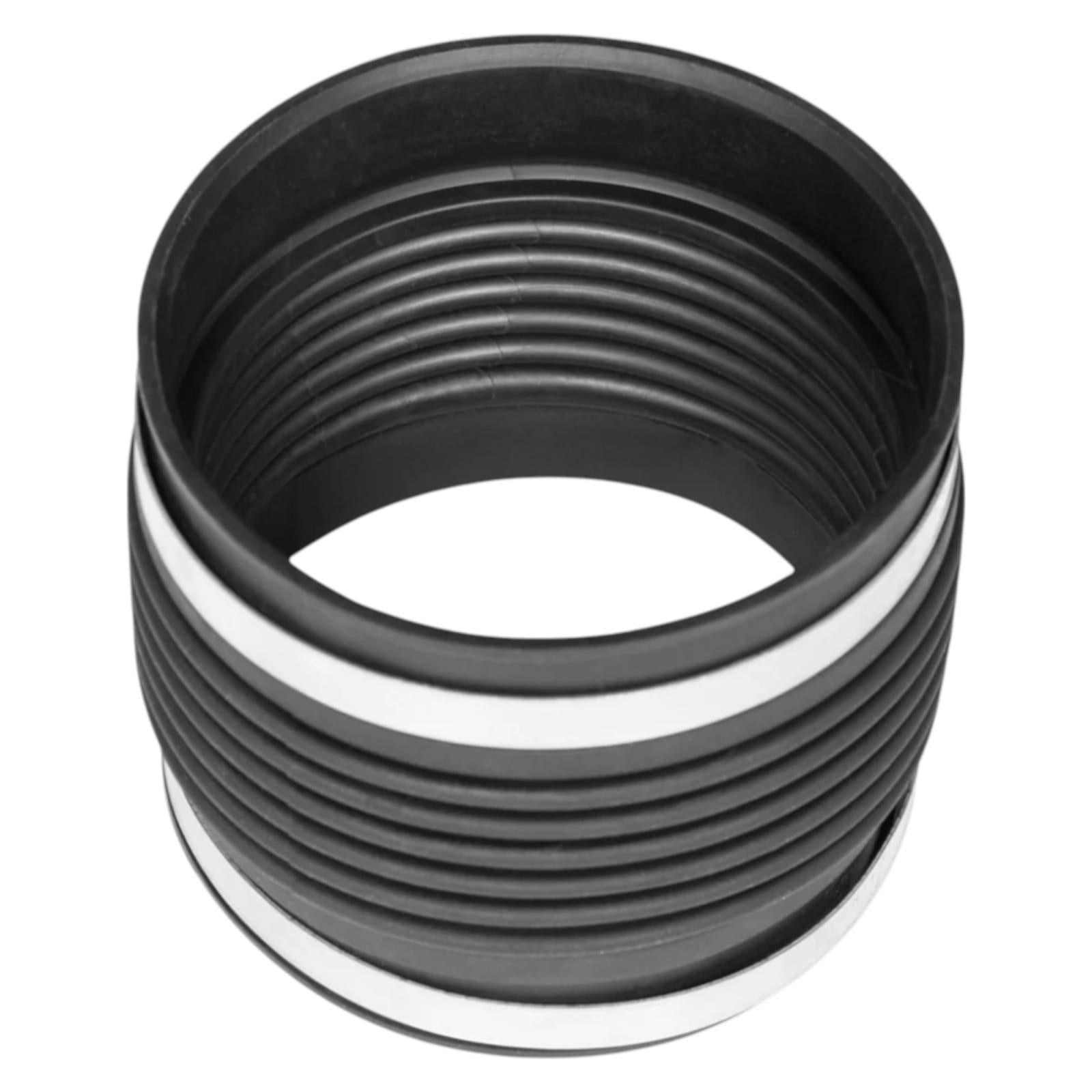

CUSTOM FLEXIBLE COUPLER

The final component is our custom designed flexible coupler. This enables the filter housing to remain static and therefore sealed to the duct as the engine moves under load.

Vehicle Fitment

BMW F7X M135, M235, U1X X1, X2 M35

PLEASE NOTE: Majority of Eventuri products are standard stock and will be with you in a few days. Estimated delivery times in this listing are for guidance purposes only. Delays in production can be due to high order volumes and occasionally some applications have to be special ordered which can usually take roughly 6-8 weeks for dispatch. If there will be any delays in your order you will be informed within 24 hours.

*Image for illustration purposes only

IMPORTANT NOTE REGARDING - STOCK LEVELS

If you are in urgent need of this product or have any doubt of whether it is in stock due to low quantity, please contact us prior to placing your order to check for availability.

Please read bullet points before purchase:

• The available item quantity is correct at the time of uploading this listing.
• This product may have multiple listings due to application of other suitable vehicles which affect stock levels.
• This product may also be listed on our website which it may be sold through.
• This product may also have sold through our retail store.

Distributed By Haz Motorsport
