HF-Series Uprated Intercooler Kit For Hyundai i20N 21-23 1.6T-GDi BC3 204ps by HG Motorsport
HF-Series is the first point of contact when it comes to fresh air supply in vehicles. With this brand, HG-Motorsport has combined professional research and production of high quality intake systems, intercoolers and air guidance systems. In addition to 3D scanning of the vehicle periphery for perfect fitting accuracy, this also includes long series of tests to combine the optimum components for each individual model. The result is racing products.
The high quality HFT net has the best cooling properties to deliver the best performance even in poor conditions and at the same time is very robust. It is characterised by high resistance and does not heat itself up as much as comparable nets from other manufacturers. At the same time, the entire system is also designed for best flow. This means that the pressure loss is minimal and the entire charge air path has been developed with CAD flow analyses in mind. This also includes the radiator boxes, which are made of high-strength cast aluminium.
Advantages:
- significantly cooler charge air, which improves engine combustion
- earlier response
- improved flow
Therefore, this product is interesting for both series performance and racing, because considerably higher performance is possible.
Each individual cooler was built on the respective vehicle, calculated in flow simulations and tested on the in-house performance test bench.
The intercooler is fitted to the original mounting points of the original OEM intercooler and therefore requires no major adaptation work. Installation can be done by customers with a well-stocked toolbox themselves.
Technical Details:
- Lenght: 600 mm (Netz) /OEM 60 0mm
- Height: 200 mm (Netz / Stufe bei 130 mm) /OEM 123 mm
- deet: 140 mm unten / 50mm oben (Netz) / OEM 90 mm
- Core: BNP
- Aluminium
- Black Powdercoated
OEM: 79,1cfm
HF-Series: 121cfm
Vehicle Fitment:
-
Hyundai I20 N2021-2023 1.6T-GDi Typ Chassis FWD III BC3, BI3 1598cc 150kw 204Ps G4FP; G4FV
** The majority of HG Motorsport products are processed straight away, but occasionally some applications have to be special ordered which can take upto a maximum of 3/4 weeks for delivery. If there will be any delays in your order you will be informed within 24-48 hours.
Distributed By Haz Motorsport
Product Details
Brand: HG Motorsport
Manufacturer Part Number: HGICKHY01
Type: Intercooler Kit
Reference OE/OEM Number: HGICKHY01~HG Motorsport~HF-Series
Country/Region of Manufacture: United Kingdom

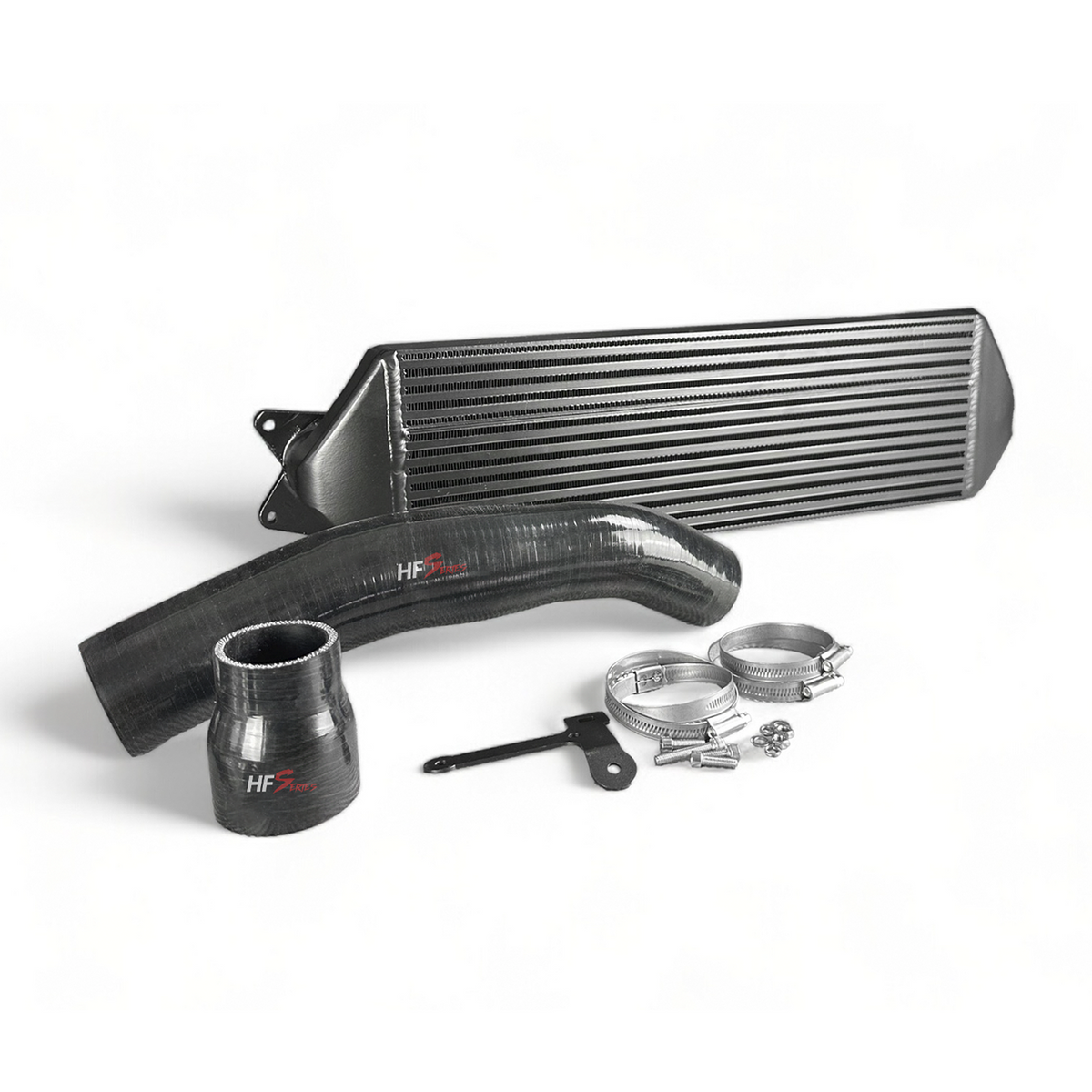

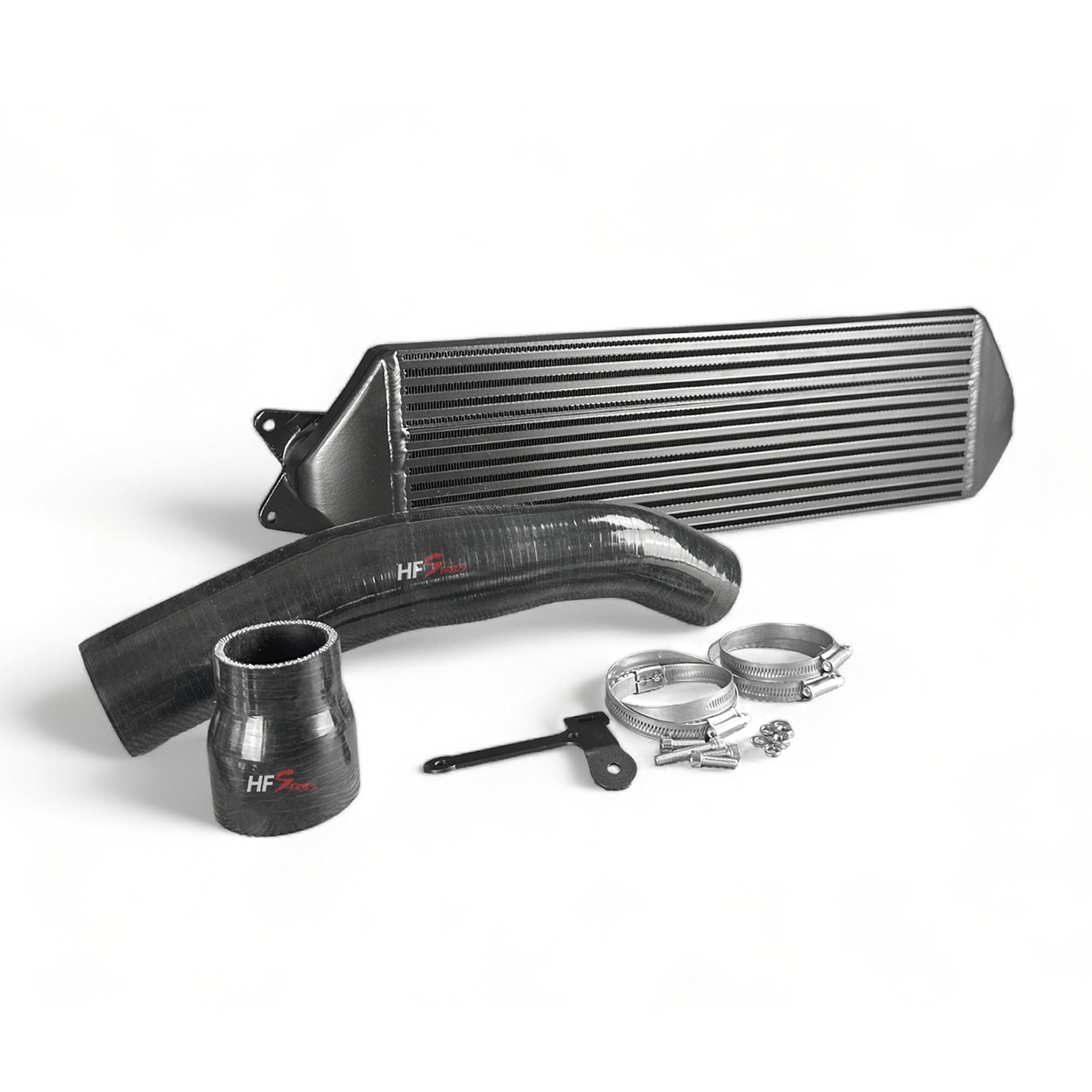

Kit Contains: Intercooler | Silicone Hoses | Mounting Material
