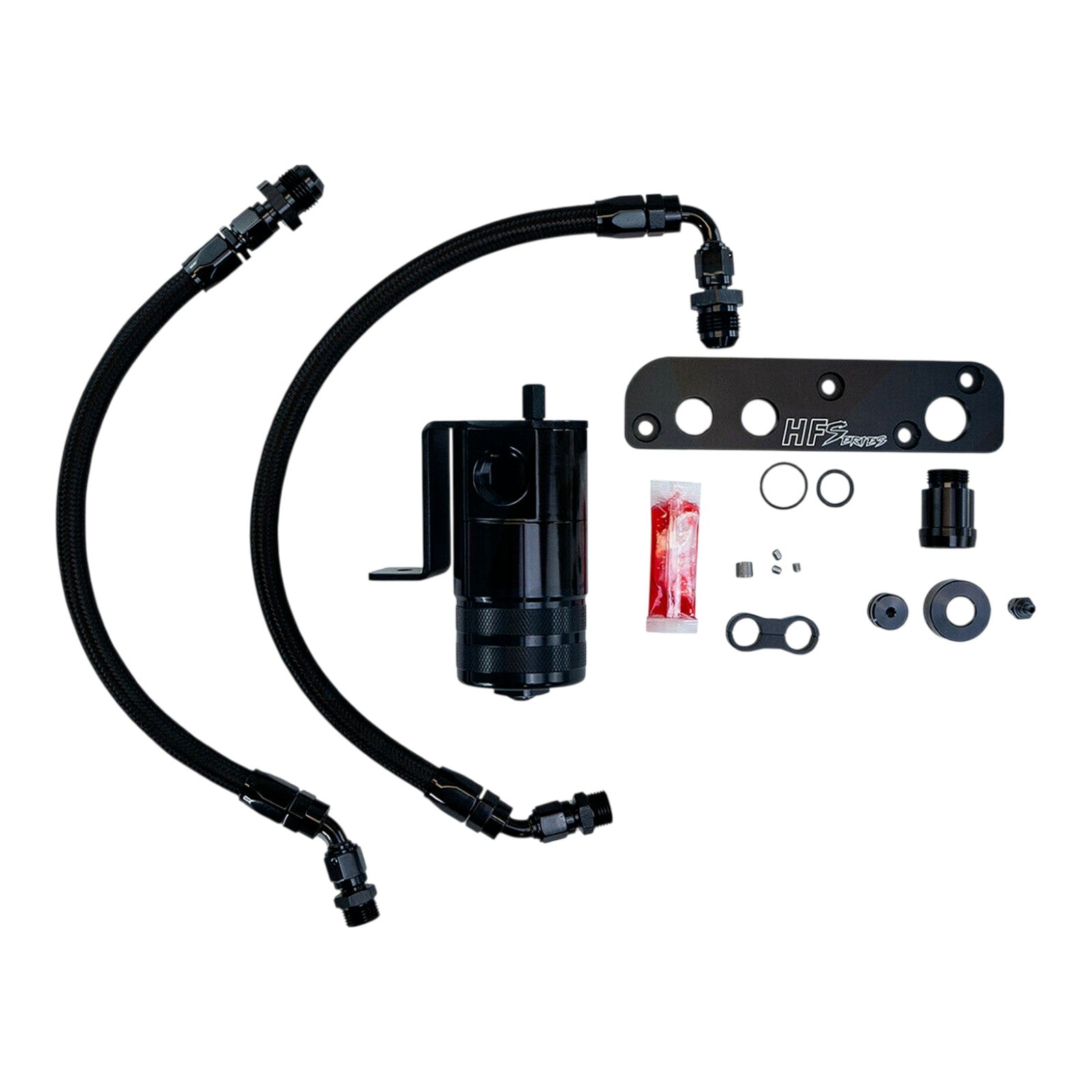

HG Motorsport Catch Can Kit 2.0TSI VW Golf MK5 GTI MK6 R AUDI S3 8P SEAT LEON 1P
HF-SeriesHF Series is the first contact when it comes to fresh air guide in vehicles. This brand HG - Motorsport has summarized the professional research and production of high-quality intake systems, charge air coolers and air ducting systems. In addition to the 3D scan of the vehicle include peripherals for perfect fit , also to combine a long series of tests to the optimum components for each model. This results legal street racing products.
Boost your engine performance and longevity with a HF-Series Catch Can Set. Despite the diversion of oil and water vapors into the Catch Can, the emission values (Euro) continue to be met. In addition, the installation of the system, the combustion is cleaner. The oil and water vapors are routed regularly into the intake bridge, where they are ignited and discharged after entering the combustion chamber in combination with the fuel / air mixture. The direct injection system of the TSI models eliminates the need to flush the cylinder heads and valves with fuel. This means that the regular fuel used for cleaning is missing because it is injected directly into the combustion chamber. Due to the exhaust gas recirculation in conjunction with the oil and water vapors from the crankcase ventilation massively build up. These are deposited on the chambers of the cylinder heads and on the valves. By these deposits, the material surface is rough and the air guide cross-sections is narrow. The consequences are worse emissions, power losses and higher consumption.
In the advanced stage, even the valve train is disturbed by these deposits, so that the valves sometimes no longer close and thus there is no compression on the affected cylinders, which leads to misfiring. In the worst case, this can lead to engine damage.
The HF-Series Catch Can Set will solve this problem once and for all.
Notes
- The catch can system also fits with OEM intake / engine cover
- The standard pipe to the noise amplifier must be removed
- Cannot be mounted in conjunction with the standard noise amplifier
- Comes with Mounting Materials
- Catch tank with chamber construction incl. sinter filter and oil dipstick
- Black steel flex pipes with racing fittings
- CNC milled PCV Fix
- Black anodized
- Complete set with lock for the suction bridge
- incl. adapter for measuring boost pressure/vacuum
- Plug&Play set without adjustment work
VehiclesCar Type E-Number Engine Code Power(kW/min-1)AUDI A3 / S3 8P e1*2001/116*0217*.. AXX, BWA, BPY 147 / 5100-6000
AUDI A3 / S3 8P e1*2001/116*0217*.. CDLC 188 / 6000
AUDI A3 / S3 8P e1*2001/116*0217*.. BHZ 195 / 6000
AUDI A3 / S3 8P e1*2001/116*0217*.. CDLA 195 / 6000
AUDI TT 8J e1*2001/116*0369*.. AXX, BWA, BPY 147 / 5100-6000
AUDI TTS 8J e1*2001/116*0369*.. CDL 200/6000
SEAT Altea 5P e9*2001/116*0050*.. AXX, BWA, BPY 147 / 5100-6000
SEAT Leon 1P e9*2001/116*052*.. AXX, BWA, BPY 147 / 5100-6000
SEAT Leon 1P e9*2001/116*052*.. BWJ, CDLD 177 / 5700
SEAT Leon 1P e9*2001/116*052*.. CDLA 195 / 6000
SEAT Toledo 5P e9*2001/116*0050*.. AXX, BWA, BPY 147 / 5100-6000
SKODA Octavia 1Z e11*2001/116*0230*.. AXX, BWA, BPY 147 / 5100-6000
VW Eos 1F e1*2001/116*0349*.. AXX, BWA, BPY 147 / 5100-6000
VW Golf 1K e1*2001/116*0242*.. AXX, BWA, BPY 147 / 5100-6000
VW Golf 1K e1*2001/116*0242*.. BYD 169 / 5500
VW Golf 1K e1*2001/116*0242*.. CDLG 173 / 5500
VW Golf 1K e1*2001/116*0242*.. CDLA 195 / 6000
VW Golf 1K e1*2001/116*0242*.. CDLF 199 / 6000
VW Jetta 1KM e1*2001/116*0328*.. AXX, BWA, BPY 147 / 5100-6000
VW Passat 3C e1*2001/116*0307*.. AXX, BWA, BPY 147 / 5100-6000
VW Scirocco 13 e1*2001/116*0471*.. CDLC 188 / 6000
VW Scirocco 13 e1*2001/116*0471*.. CDLA 195 / 6000
VW Scirocco 13 e1*2001/116*0471*.. CDL 206 / 6000
AttentionThe catch can system also fits with OEM intake / engine cover.
The standard pipe to the noise amplifier has to be removed!
Cannot be mounted in conjunction with the standard noise amplifier.
Distributed By Haz Motorsport
