Pipercross Induction Air Filter Kit - PK370 And Instructions To Fit
Quick Overview

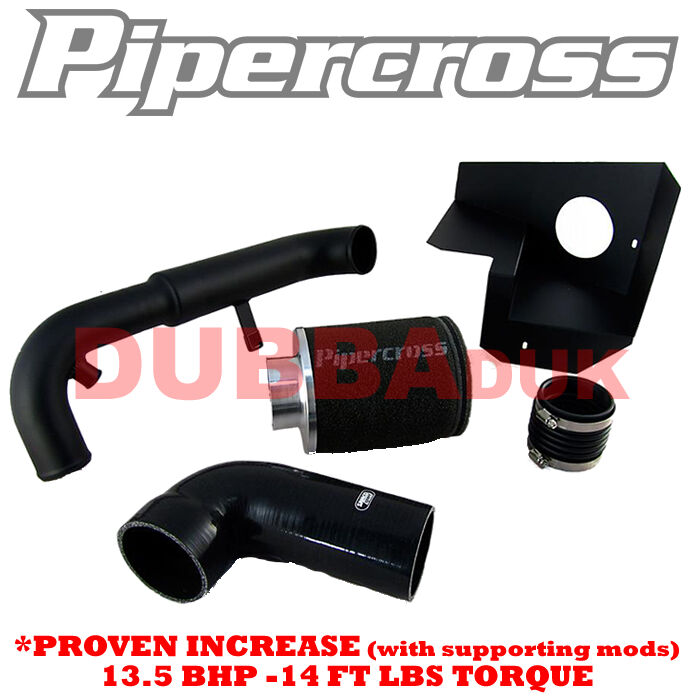

More Power - *13.5bhp / 14ft lb torque
Sports Sound
Increased Air Flow (45% less restrictive)
Washable & Reusable
Maximum Bhp & Torque
Replace The Factory Airbox
Heat Shield Included

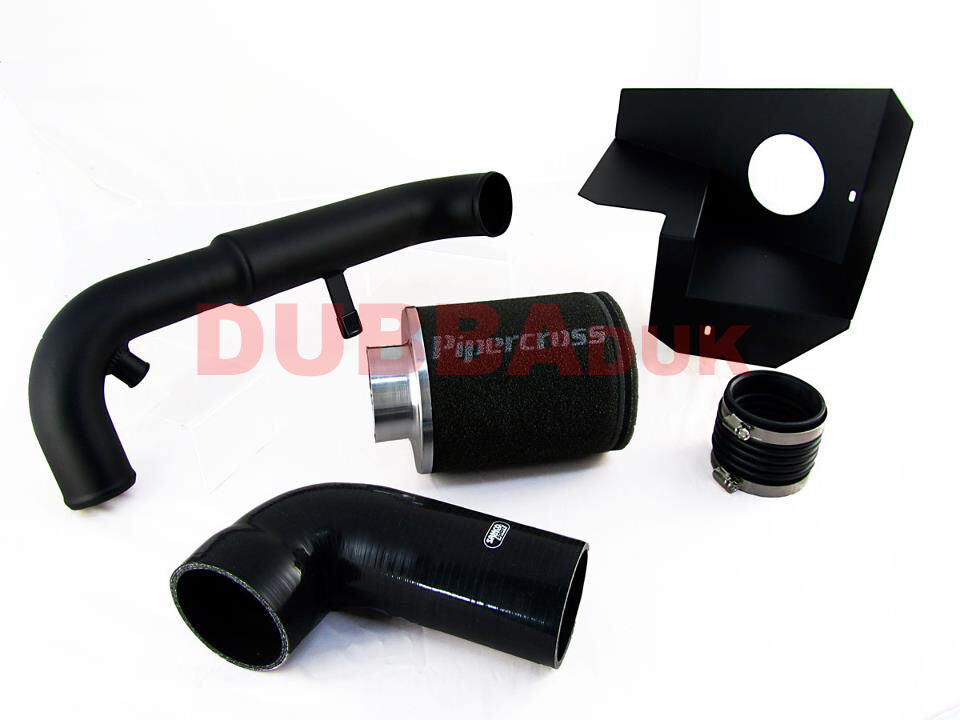

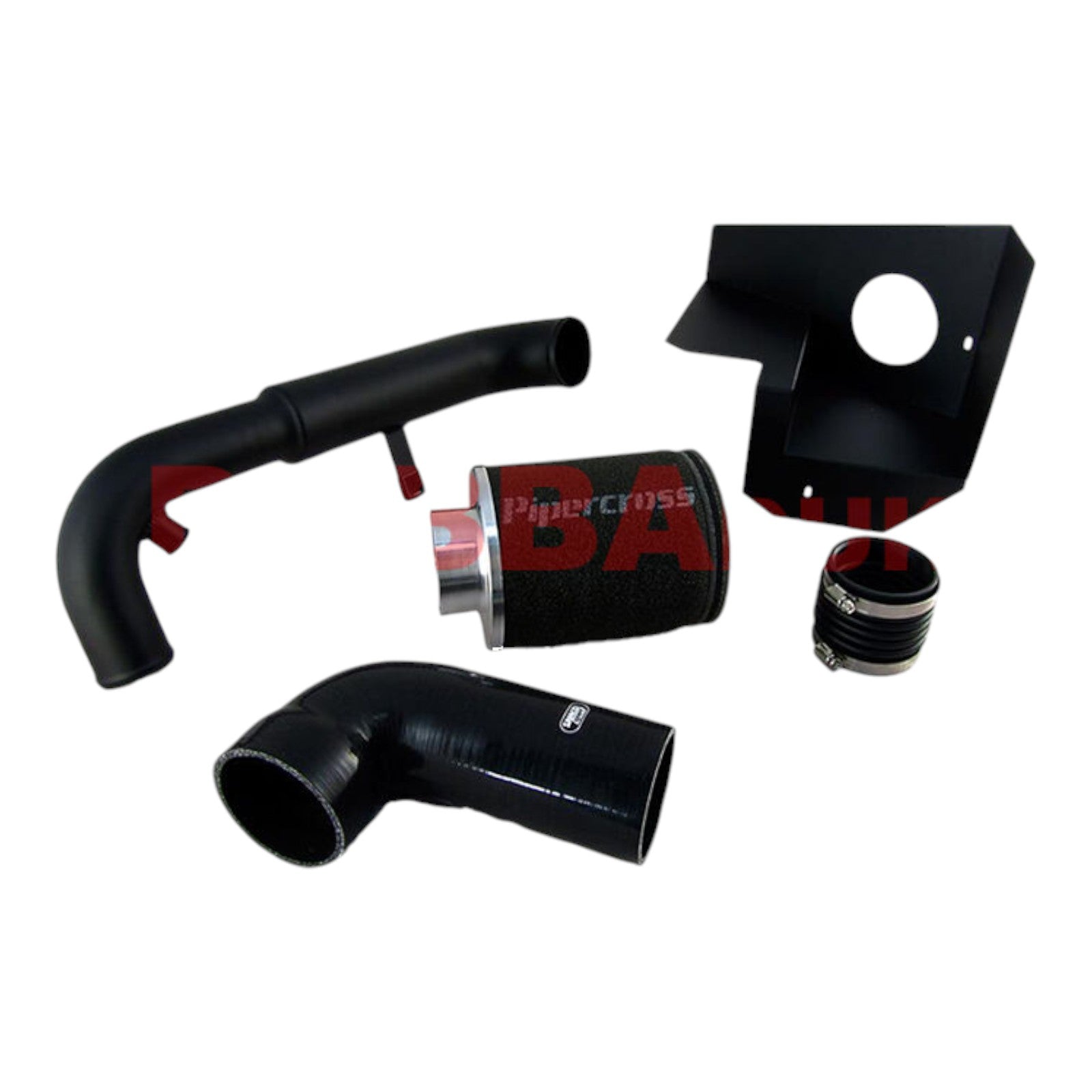

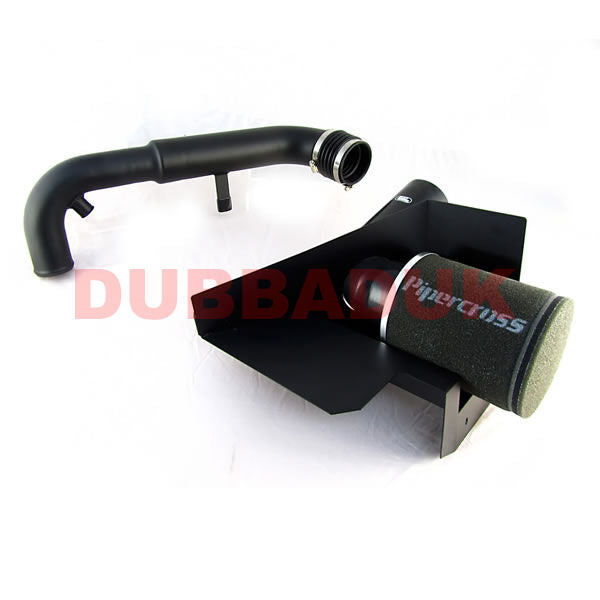

Whats included inside this kit
High flow Stage 2 turbo to MAF pipe x1
Intake Pipe joiner 1 x1
MAF to filter silicone hose x1
Filter support bracket x1
1st Heat shield support bracket and hardware x1
Pipercross Performance Foam Air filter x1
2nd Heatshield support bracket and hardware x1
Specific Heatshield x1
90>110 Hose clip x1
80>100 Hose clip x3
M6 x 20 hex bolt x2
M6 Washer x4
M6 Nylock nut x2

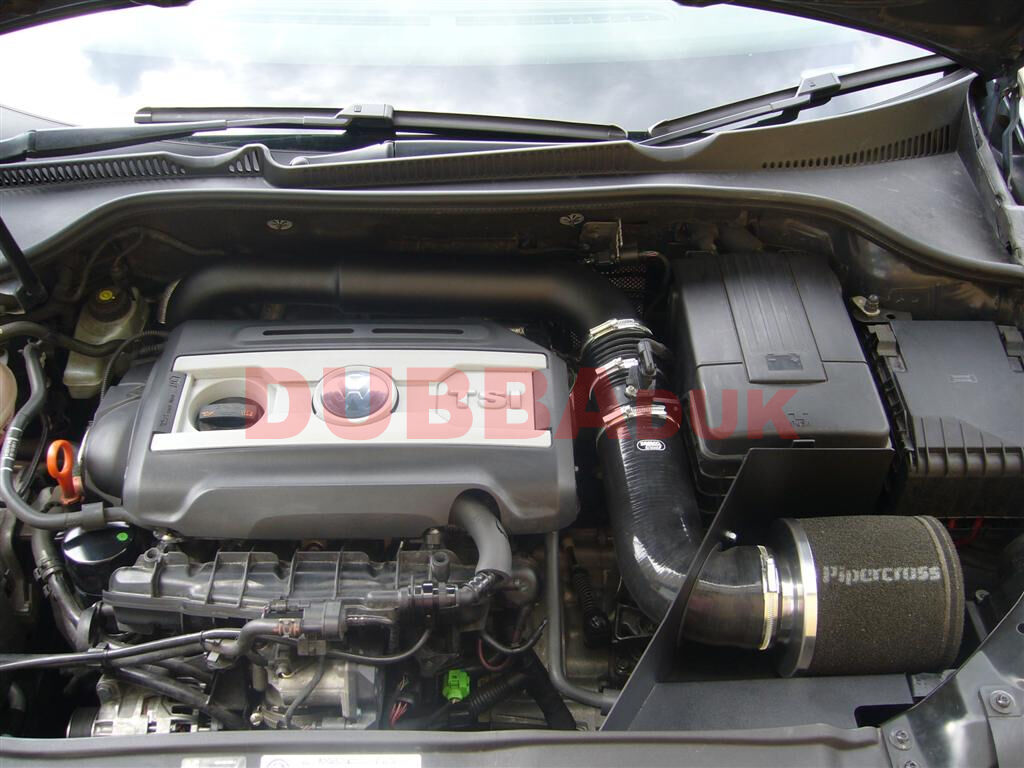

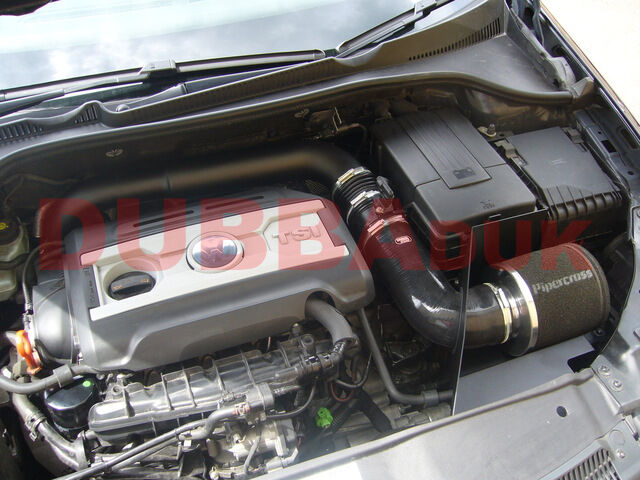

Description Pipercross Intake Kit PK370
After
some extensive development on our Mk6 Golf GTI Pipercross are now
pleased to release our new intake kit. Incorporating a full custom made,
light weight aluminium heat shield, large open cone filter with full
radius spinning, custom Samco Hose and full stage 2 back pipe to turbo.
We

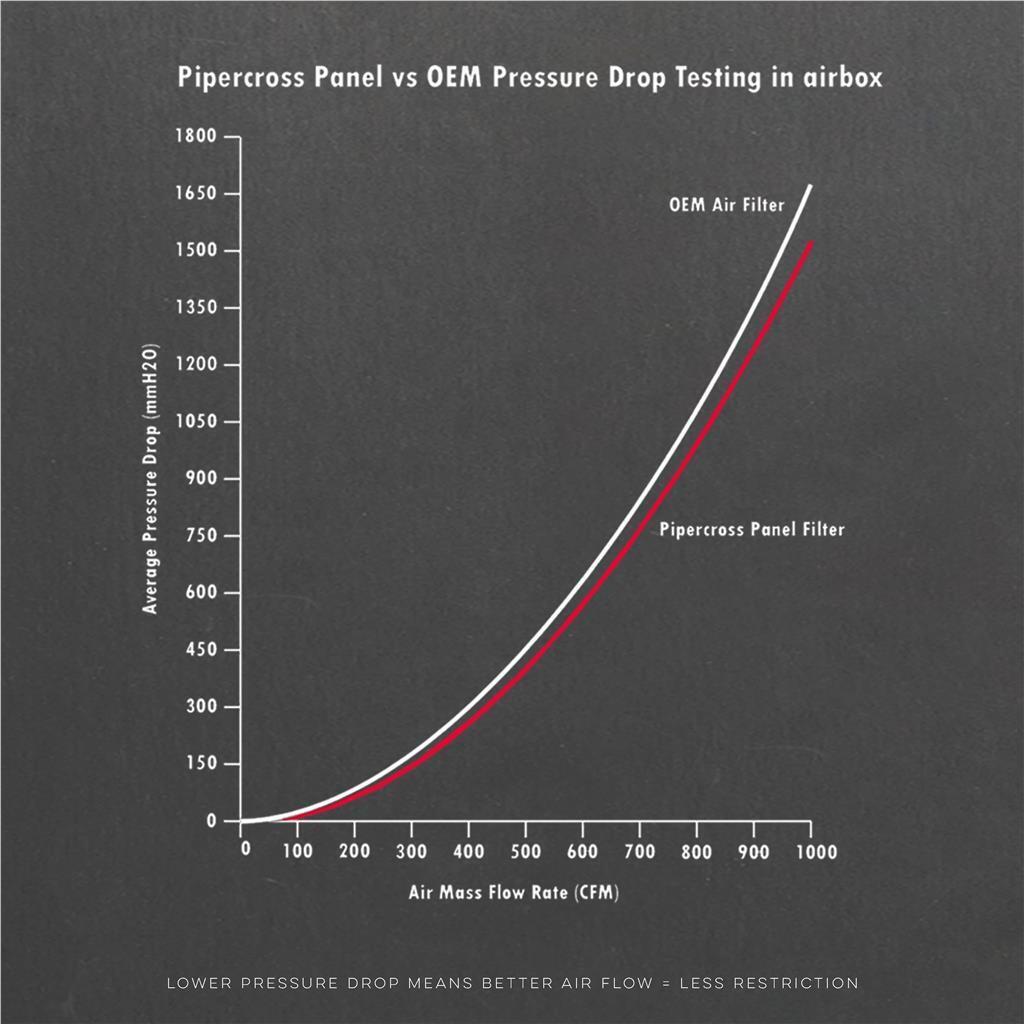

used our flow bench to test the system throughout the development stage
comparing it to the OE unit, we managed to create a system that was up
to 45% less restrictive than the OE unit.
First run on a standard
car with OE airbox gave a reading of 230bhp, with our kit on we got
232.9 bhp. When then put a stage 1 map on the car as this is where we
would see the real gains and as expected we did. OE airbox with map made
250bhp with 292 lb/ft torque, with the Pipercross kit installed we made
263.5bhp and 306.6 lb/ft torque a 13.5bhp gain and 14lb/ft increase!!!
About Pipercross Induction Kits
Each
Pipercross Induction kit is an air intake system designed specifically
for your car. Research, development and testing is carried out on every
kit to ensure that the product we make performs well, looks fantastic
and is easy to fit.
The 150mm outer diameter base we use for
Induction kits and Viper intakes create laminar air flow to keep air
turbulence to a minimum. Turbulence causes drag which slows the airflow
down and limits the flow rate of any induction system. Air filter units
without a full radius edge create turbulence, thus reducing their
effectiveness.
At the heart of the Pipercross air filter is a
specially developed polyurethane foam which acts as the filtration
medium, having both higher performance and life expectancy than paper.
Pipercross reticulated foam is created by a chemical reaction - it's
placed in a gas filled combustion chamber where a controlled explosion
burns away any complete cell walls in the material to form a strictly
quality controlled skeletal cellular structure
This process,
ensures that the foam consists of tiny open cells which trap
contaminants to protect your engine against even the harshest of
environments without compromising air flow.
Main Benefits
More Power
Sports Sound
Increased Air Flow
Maximum Torque
Replaces The Factory Airbox
Washable And Reusable
About Pipercross Pipercross
has been making high performance air filters for the motor sport and
domestic markets for over 25 years. Based in Northampton, England,
Pipercross is situated in the country along with some of the biggest
names in motorsport engine design and manufacture in the world.
