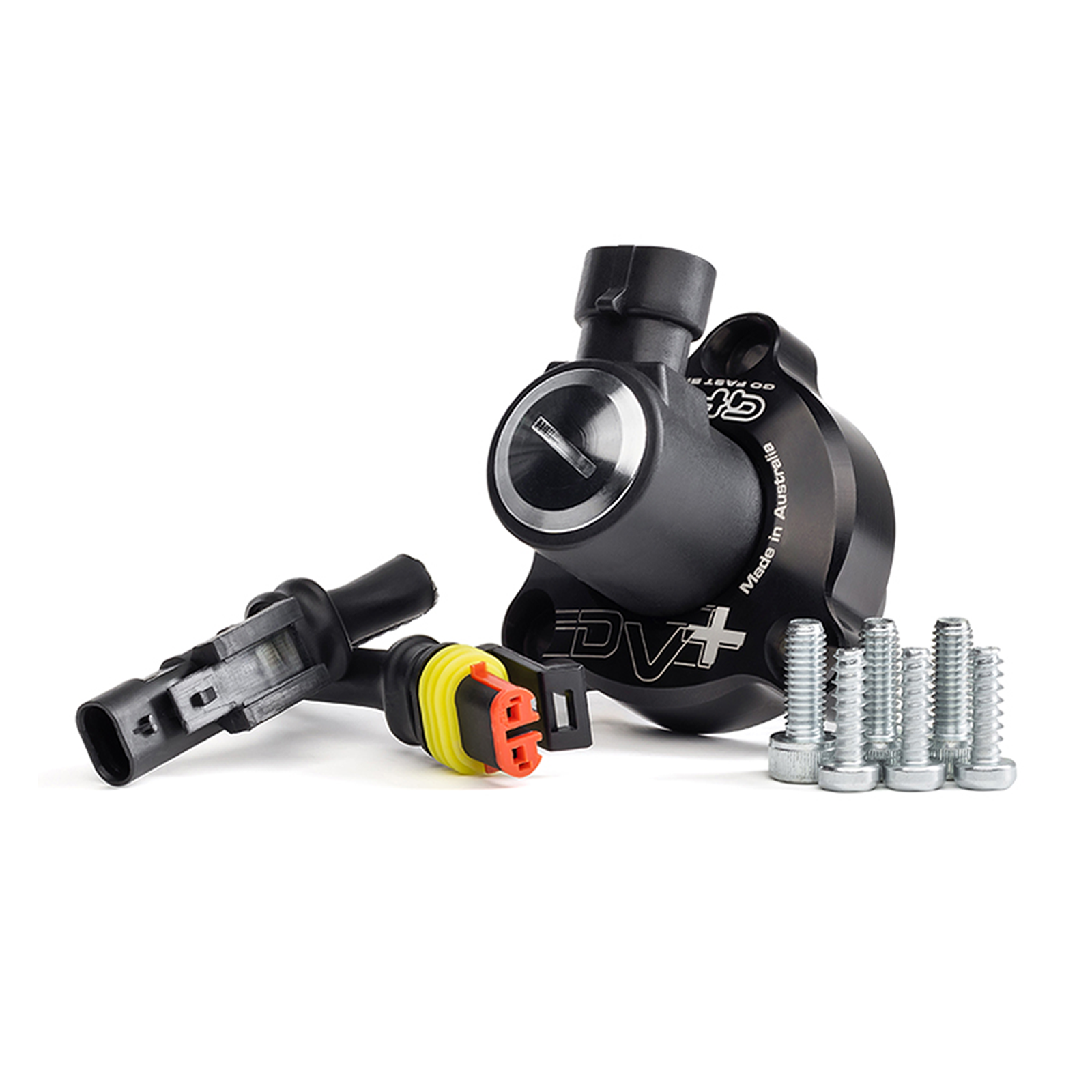

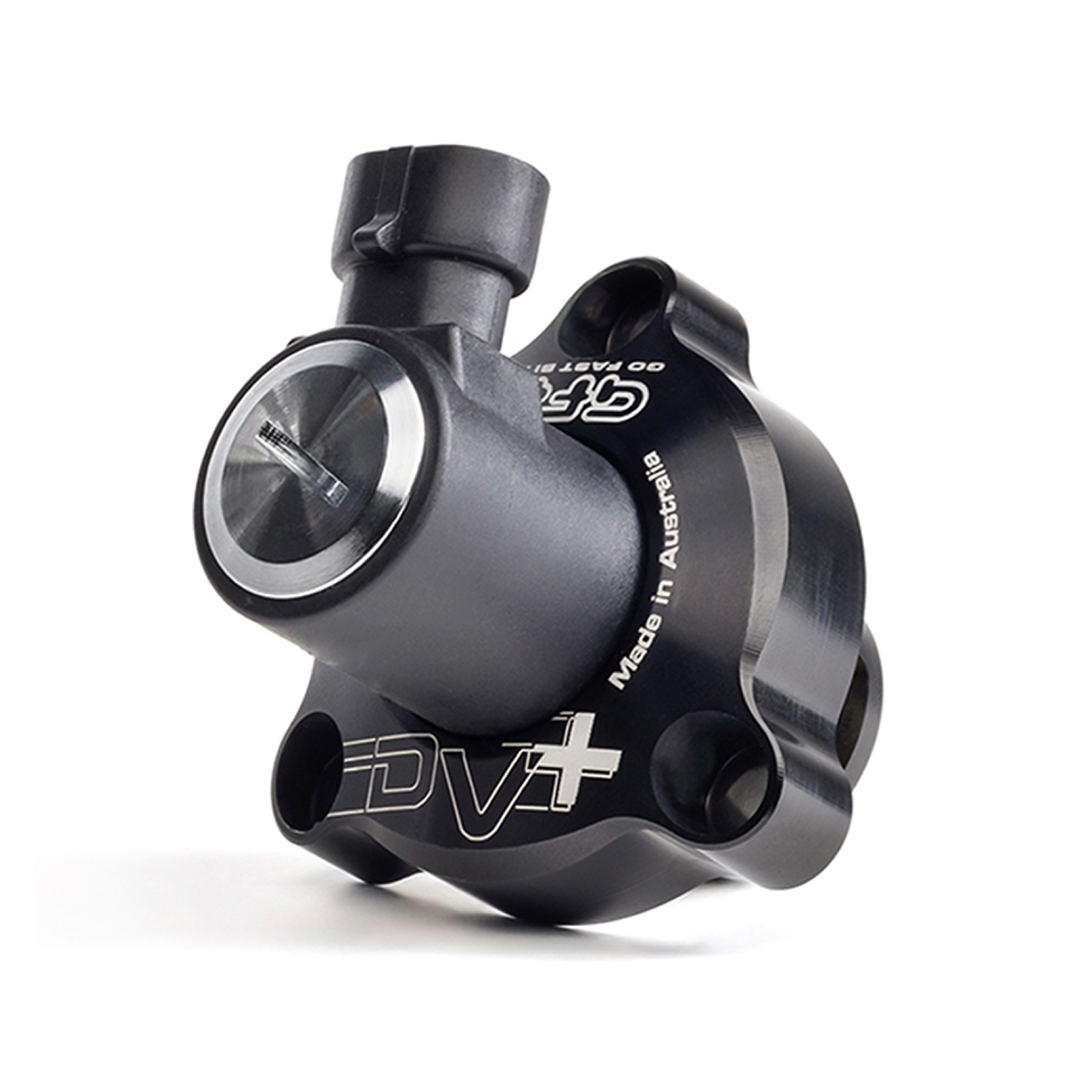

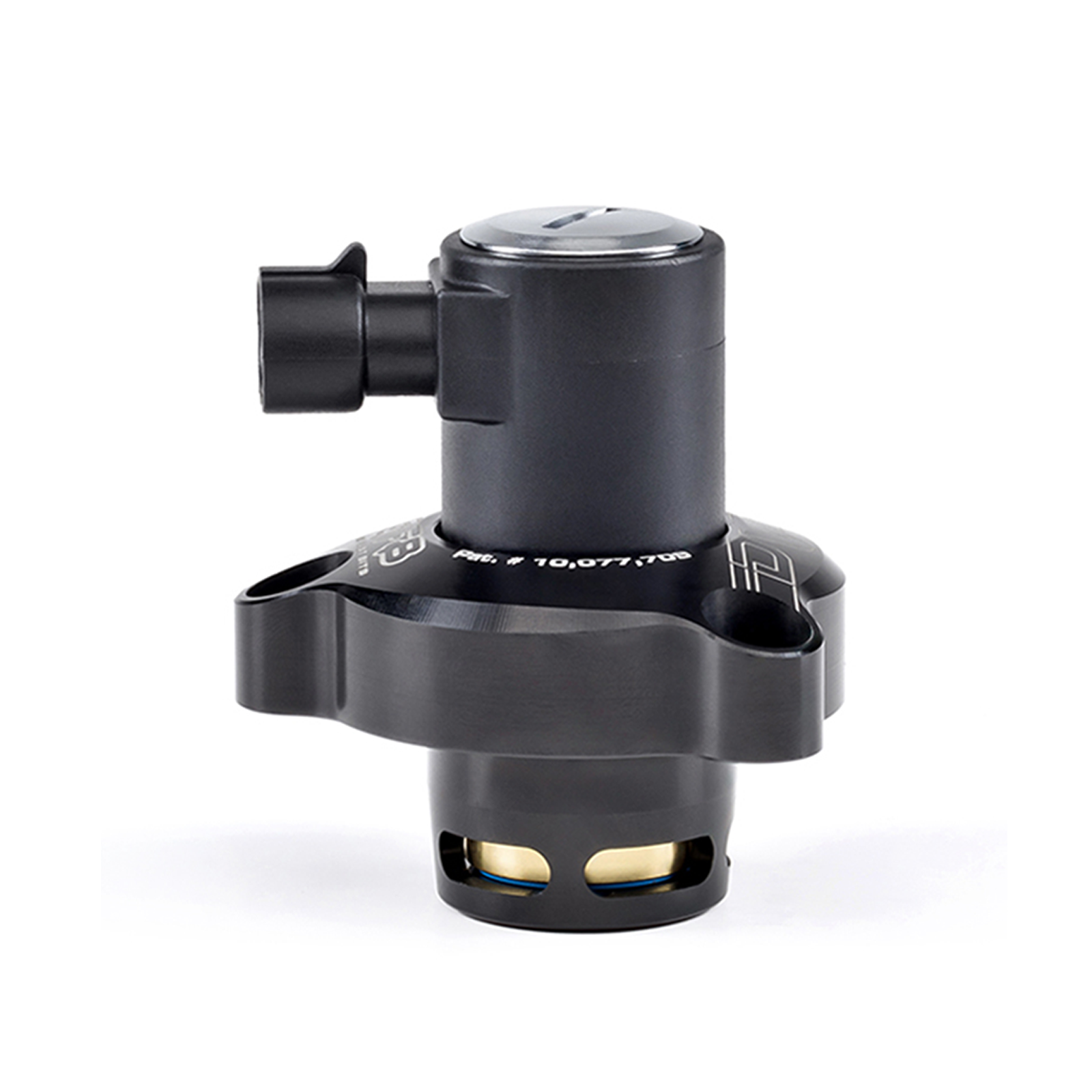

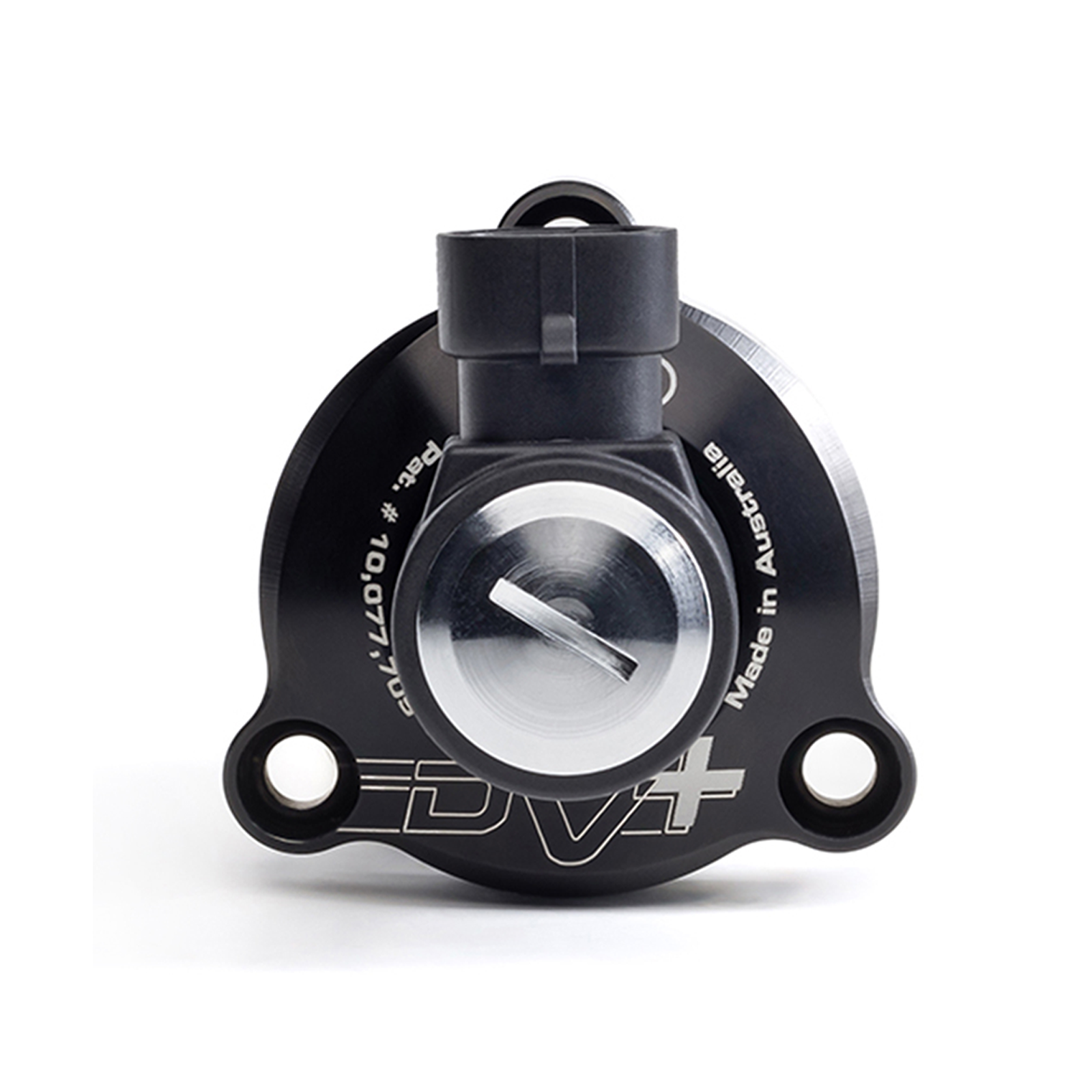

T9388 DV+ T9388 Diverter Valve With Integrated Solenoid for Mercedes Applications
The T9388 is the latest addition to the DV+ range of diverter valves from GFB (Go Fast Bits). It is designed as a complete drop-in replacement for the OEM diverter valve in late-model Mercedes vehicles
Unlike the earlier generation diverter valves manufactured by Pierburg, the newer AMG-branded OEM valves cannot be disassembled and incorporated into a DV+. Therefore, GFB developed the T9388 with a low-profile integrated solenoid as a complete replacement for both the AMG and Pierburg diverter valves, enabling a hassle-free installation with no clearance issues.
Like all valves in the DV+ range, the new T9388 delivers the following benefits over the OEM diverter valve:
- Improved boost holding
- Sharper throttle response
- Faster boost recovery after a gearshift or brief throttle lift
- Unrivalled longevity, backed by our Lifetime Warranty
Improved Boost HoldingSince electronic OEM diverter valves first appeared in the mid-2000s, there have been many revisions over the years in an attempt to address reliability issues. Whilst the latest generation of OEM diverter valves has become more reliable, there is always a performance trade-off due to their operational method and plastic construction. When GFB engineers performed boost leak testing on the OEM diverter valve in a C63S, they found the leak was significantly larger than in earlier generations. This excessive leaking is due to the emerging trend of manufacturers mounting diverter valves remotely on plastic intercooler tanks rather than directly on the turbocharger. A plastic valve mechanism closing onto a plastic seat resulted in the largest OEM diverter valve leak we’ve seen yet at 28L/min at 1 Bar of boost.

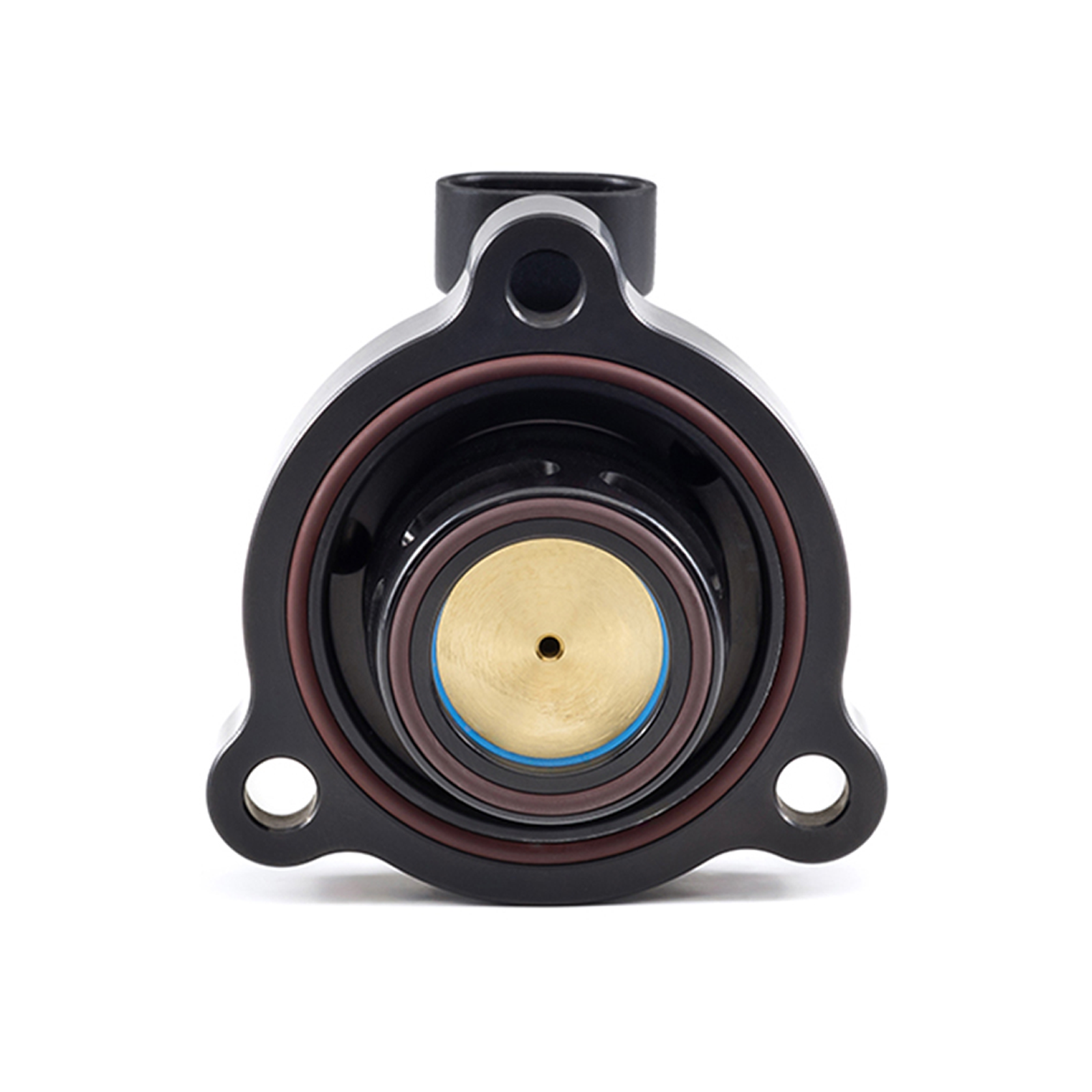

Even with the Viton face seal (featured on all DV+ pistons), the plastic OEM seat face was found to be so uneven that it was impossible to achieve a reliable seal. The T9388 successfully addresses this issue by incorporating an integral piston seat machined into its body. This design ensures a proper seal, even on uneven plastic OEM seats.
Sharper throttle response, faster boost recovery after brief throttle liftFactory electronic diverter valves are binary in operation – they’re either open or shut. Your throttle, however, isn’t. When you make small throttle adjustments, the binary operation of the factory diverter results in abrupt changes in power delivery, which is the very definition of poor throttle response. The DV+ patented “pilot actuation†system allows the piston to open and close progressively, thereby smoothing the power delivery during throttle modulation, and ultimately improving throttle response.
Unrivalled longevity, backed by our Lifetime WarrantyThe combination of precision manufacturing, attention to detail, and robust materials mean the DV+ will last a lifetime. So does the warranty!
Vehicle FitmentMERCEDES-BENZ GLA-Class X156 GLA180/GLA200/GLA220/GLA250 (2014-2019)
MERCEDES-BENZ CLA-Class C117 CLA180/CLA200/CLA220/CLA250 (2013-2019)
MERCEDES-BENZ E-Class W212 E200/E250 (2009-2016)
MERCEDES-BENZ E-Class W212 E200/E250 (2009-2016)
MERCEDES-BENZ SLK 200/250 (R172)
MERCEDES-BENZ SLK 200/250 (R172)
MERCEDES-BENZ C-Class C180/C200/C250/C300 Turbo (Not Kompressor) 2011-2018
MERCEDES-BENZ C-Class C180/C200/C250/C300 Turbo (Not Kompressor) 2011-2018
MERCEDES-BENZ CLA-Class C117 CLA180/CLA200/CLA220/CLA250 (2013-2019)
MERCEDES-BENZ B-Class W246 B180/B200/B220/B250 (2011-2019)
MERCEDES-BENZ B-Class W246 B180/B200/B220/B250 (2011-2019)
MERCEDES-BENZ A-Class W176 A180/A200/A250 Turbo (2012-2018)
MERCEDES-BENZ A-Class W176 A180/A200/A250 Turbo (2012-2018)
MERCEDES-BENZ GLA-Class X156 GLA180/GLA200/GLA220/GLA250 (2014-2019)
MERCEDES-BENZ GLA-Class X156 GLA180/GLA200/GLA220/GLA250 (2014-2019)
MERCEDES-BENZ CLA-Class C118 CLA180/CLA200/CLA250e 1.3T (2019-On)
MERCEDES-BENZ A-Class W177 A160/A180/A200/A250e 1.3T (2018-On)
MERCEDES-BENZ GLB-Class X247 GLB180/GLB200 (2018-On)
MERCEDES-BENZ B- Class W247 B160/B180/B200/B250e (2018-On)
MERCEDES-BENZ A-Class W177 A160/A180/A200/A250e 1.3T (2018-On)
MERCEDES-BENZ GLC 200/250/300 (2015 - 2021)
MERCEDES-BENZ GLC 200/250/300 (2015 - 2021)
MERCEDES-BENZ C-Class C180/C200/C250/C300 Turbo (Not Kompressor) 2011-2018
MERCEDES-BENZ C-Class C180/C200/C250/C300 Turbo (Not Kompressor) 2011-2018
MERCEDES-BENZ E-Class W213 E200/E250/E300 (2016-2019)
MERCEDES-BENZ E-Class W213 E200/E250/E300 (2016-2019) Note : M270/M274 ENGINES ONLY
MERCEDES-BENZ S-Class S400 Note :
Two Valves RequiredMERCEDES-BENZ C-Class C180/C200/C250/C300 Turbo (Not Kompressor) 2011-2018
MERCEDES-BENZ C-Class C180/C200/C250/C300 Turbo (Not Kompressor) 2011-2018
MERCEDES-BENZ E-Class W212 E200/E250 (2009-2016)
MERCEDES-BENZ A-Class W176 A180/A200/A250 Turbo (2012-2018)
MERCEDES-BENZ A45 AMG (Facelift Models Only) (2015 - 2018)
MERCEDES-BENZ CLA45 AMG (Facelift Models Only) 2016 - 2018
MERCEDES-BENZ B-Class W246 B180/B200/B220/B250 (2011-2019)
MERCEDES-BENZ C63 & C63 S AMG 4.0TT (2016-On)
Two Valves RequiredMERCEDES-BENZ S63 AMG 4.0TT (2018-2020)
Two Valves RequiredMERCEDES-BENZ GLC63 & GLC63 S AMG 4.0TT (2018-On)
Two Valves RequiredMERCEDES-BENZ E63 & E63 S AMG 4.0TT (2018-On)
Two Valves RequiredMERCEDES-BENZ E63 & E63 S AMG 4.0TT (2018-On)
Two Valves RequiredMERCEDES-BENZ G63 AMG 4.0TT (2018-On)
Two Valves RequiredMERCEDES-BENZ C-Class C300 2.0T (2019-On)
MERCEDES-BENZ AMG GT 4.0TT (2019-On)
Two Valves RequiredMERCEDES-BENZ AMG GT 4.0TT (2019-On)
Two Valves RequiredMERCEDES-BENZ GLC43 AMG 3.0TT (2019-On)
Two Valves RequiredMERCEDES-BENZ CLA35 AMG 2.0T (2020-On)
IMPORTANT NOTE REGARDING - STOCK LEVELS
If you are in urgent need of this product or have any doubt of whether it is in stock due to low quantity, please contact us prior to placing your order to check for availability.
Please read bullet points before purchase:
The available item quantity is correct at the time of uploading this listing.
This product may have multiple listings due to application of other suitable vehicles which affect stock levels.
This product may also be listed on our website which it may be sold through.
This product may also have sold through our retail store.
*Please note: The majority of GFB products are processed straight away, but occasionally some applications have to be special ordered which can usually take 10-15 working days. If there will be any delays in your order you will be informed within 24-48 hours.
Distributed By Haz Motorsport
Product Details
Brand: Go Fast Bits
Manufacturer Part Number: T9388
Type: Diverter Valve
Country/Region of Manufacture: United Kingdom
