Racingline MQB Evo High Performance Intercooler + Boost Hoses Kit For VW Golf MK8 R / GTI / GTI Clubsport / Tiguan R MK2 / Arteon R / Audi S3 8Y etc etc
Purpose-designed for the 2.0 TSI MQB 'Evo' engine, this is the largest-volume intercooler available for this platform.
The factory intercooler on the 2.0 TSI MQB 'Evo' has proved to be unable to cope with the demands of higher power, hard driven cars, showing up as serious power losses during hard driving as air temperatures soar.

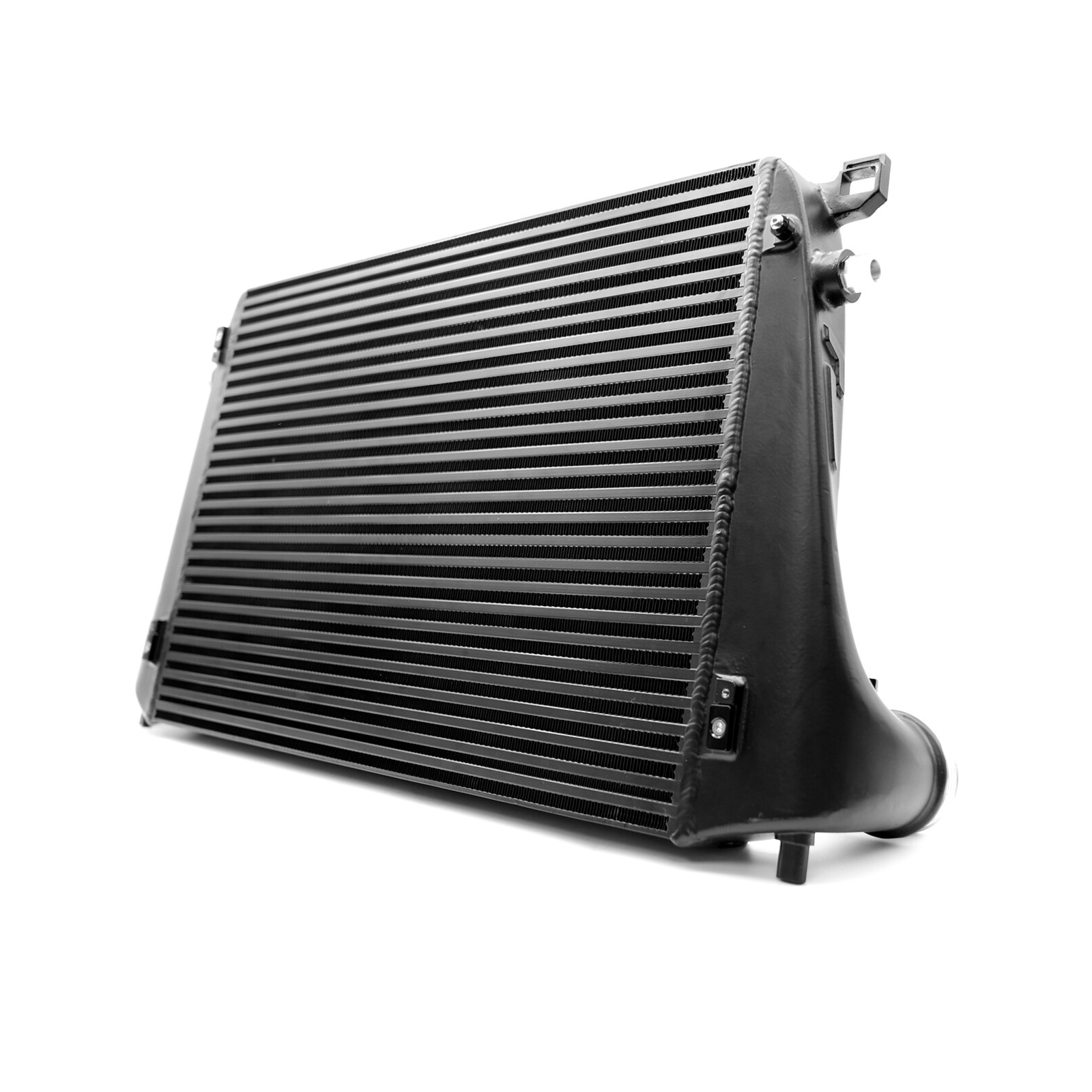

- Our massive 'plate & bar' Intercooler System uses a huge 70mm core to give a 96% volume increase over the factory cooler - making it the largest volume and best performing intercooler upgrade on offer for the 2.0 TSI gen.4
- By consistently reducing intake air temperatures (IAT), heat soak is minimised delivering increased performance again and again. No need for the recovery cool-down times needed for the production intercooler.
- Our development focussed on finding the ‘sweet spot’ of maximum IAT cooling versus minimum pressure loss. This has allowed us to achieve increased size without increased lag.
- Increased 70mm inlet and outlet sizes allow for higher flow versus the 60mm factory outlets, with matching Boost Hoses provided with the intercooler kit.
- Unlike most aftermarket intercoolers listed for the MQB 'Evo' platform, ours has been designed exclusively for the 2.0 TSI Gen.4 from the ground-up.
MAXIMUM CORE SIZE

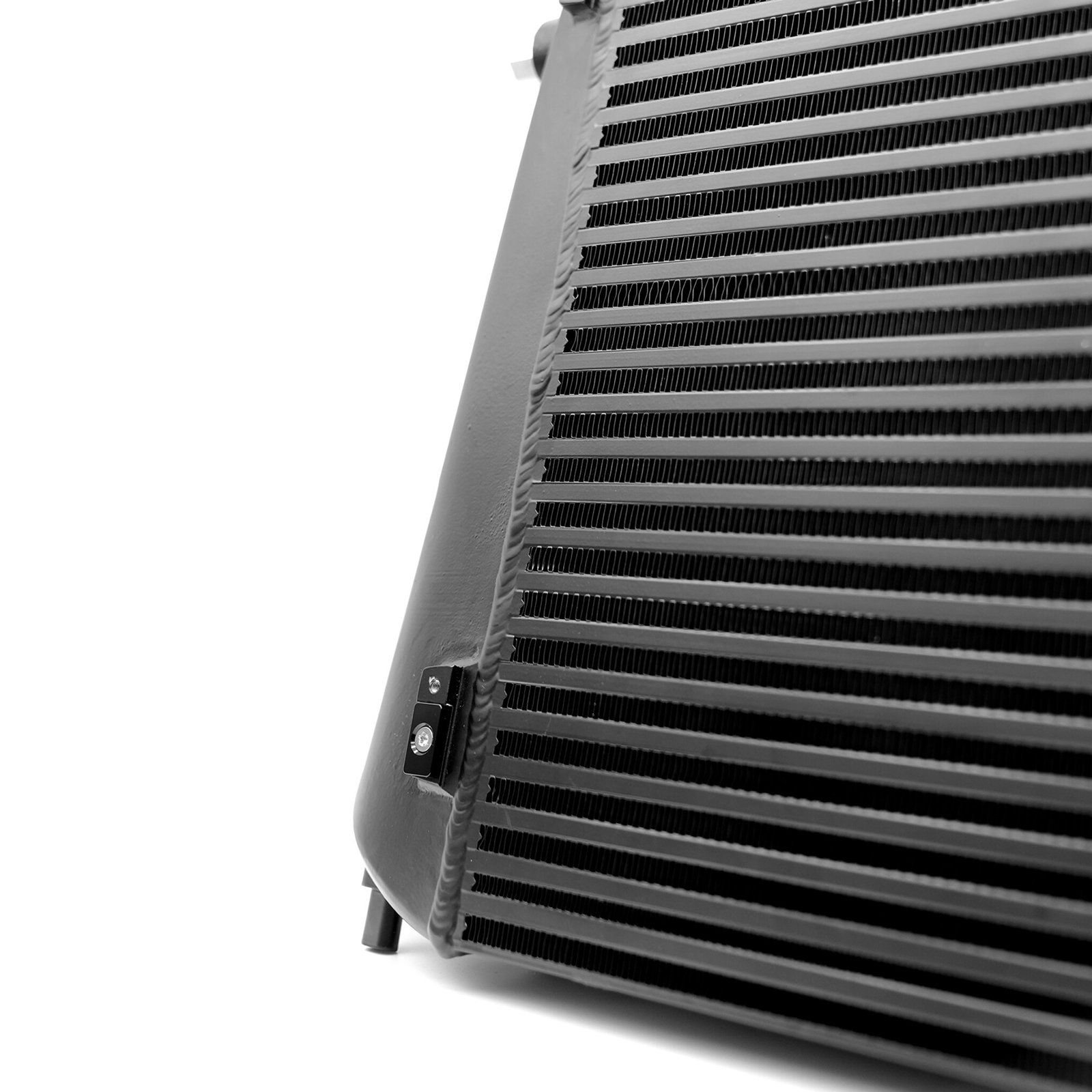

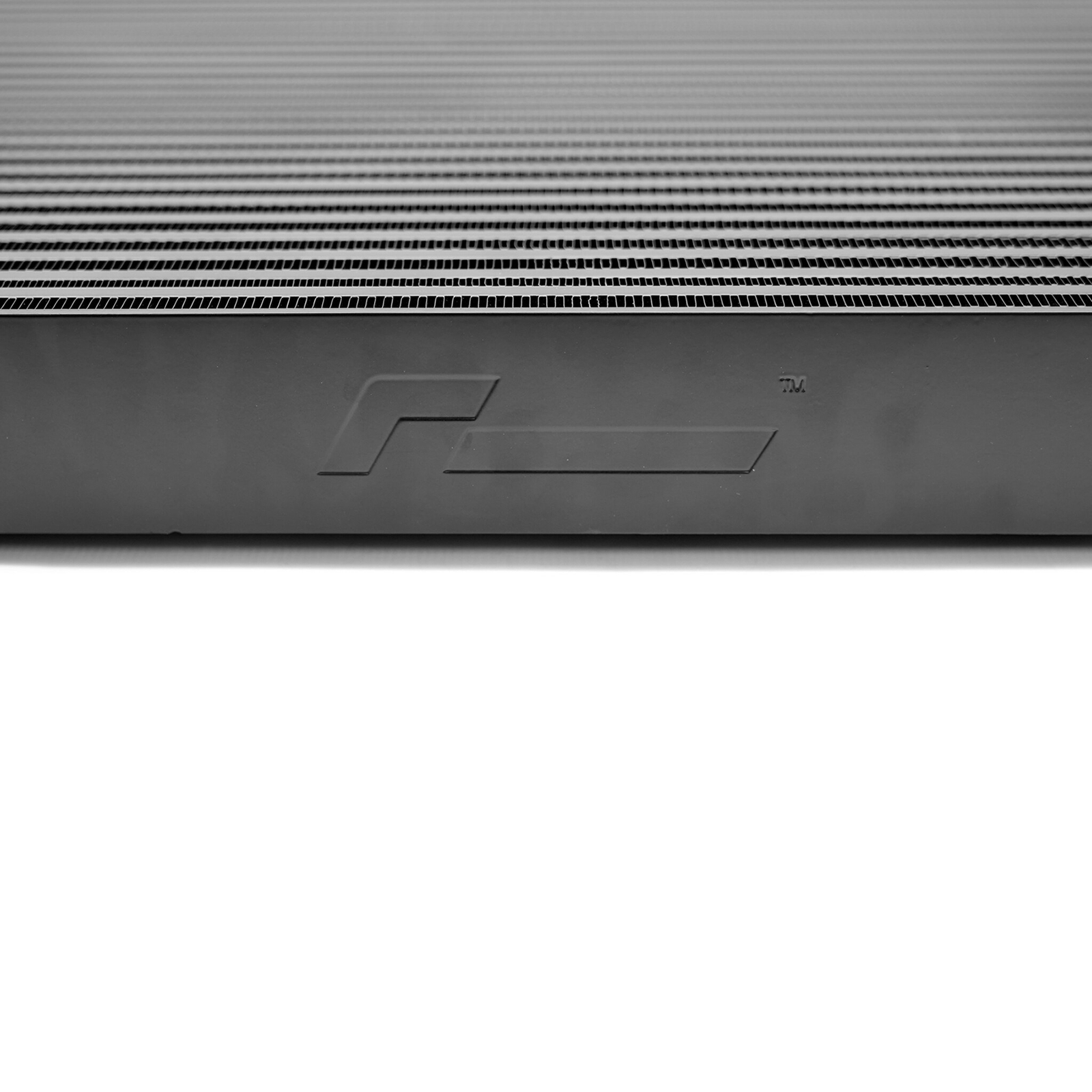

The massive 'plate & bar' intercooler unit features a 70mm high-speed core using extra tall internal tubes for maximum boost flow and a massive 96% increase in volume.

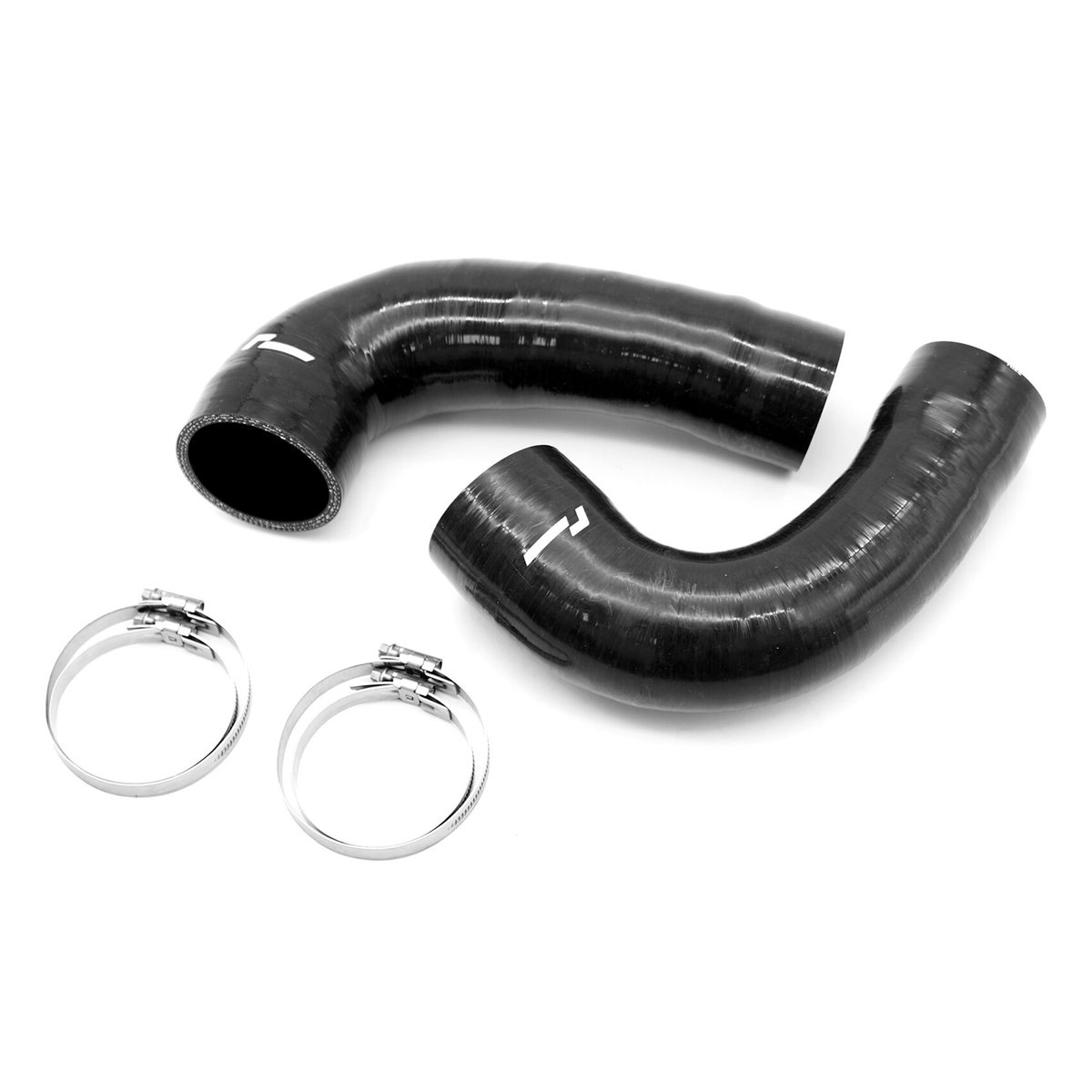

BOOST HOSES INCLUDED
Internally-wired OEM fitment 70mm boost hoses are included, multi-ply to resist heat deformation and burst pressure. Supplied with stainless steel Mikalor-brand clamps.
FLOWED END TANKS
Cast construction end tanks for minimal turbulence and restriction use internal flow guides to divert airflow up and down across the entire core depth, with enlarged 70mm inlet & outlet
VEHICLE FITMENT
VW Golf 8 GTI 2020+
VW Golf 8 GTI Clubsport 2020+
VW Golf 8 R 2020+
VW Arteon 2.0 TSI EA888.4 2020+
VW Arteon R 2.0 TSI 320ps 2020+
VW T-Roc R 2.0 TSI EA888.4 2021+
VW Tiguan II 2.0 TSI 245ps 2021+
VW Tiguan II R 2.0 TSI 320ps 2020+
Audi S3 8Y 2020+
Audi A3 2.0 TSI 8Y 2020+
Audi TT 45 TFSI 8S 245ps (EA888.4) 2021+
Audi SQ2 (facelift EA888.4) 2021+
Cupra Leon IV 300 TSI FW 2020+
Cupra Leon IV 245 TSI FW 2020+
Cupra Ateca 300ps (EA888.4) 2021+
Cupra Formentor 310ps 2020+
Cupra Formentor 245ps 2020+
SEAT Tarraco 2.0 TSI 245ps 2021+
Skoda Octavia IV vRS 2.0 TSI 245ps NX 2020+
Skoda Superb III 3V 2.0 TSI (facelift EA888.4) 2021+
Skoda Kodiaq vRS 2.0 TSI 245ps (EA888.4) 2021+
**Please note: The majority of Racingline Performance products are processed straight away, but occasionally some applications have to be special ordered which can take upto a maximum of 2 to 3 weeks for delivery. If there will be any delays in your order you will be informed within 24-48 hours.
Distributed By Haz Motorsport
Product Details
Brand: Racingline Performance
Manufacturer Part Number: VWR141000
Reference OE/OEM Number: VWR141000
Classic Car Part: No
Core Size: 70mm High-Speed Core
Country/Region of Manufacture: United Kingdom
Grade: N/A
Interchange Part Number: N/A
Mileage: N/A
OEM Volume: 9,895,200mm³
Performance Part: Yes
Racingline Volume: 19,404,000mm³
Unit Quantity: N/A
Vehicle Fitment: 2.0 TSI MQB Evo / EA888 Gen 4 Engine
Vehicle Identification Number (VIN): N/A
Warranty Period: N/A
Other Part Number: VWR141000
